The Cable for Tough Jobs
Standard indoor network cables (with PVC or LSZH jackets) quickly become porous and absorb water outdoors due to sunlight and temperature fluctuations. The LogiLink CPV0081 direct burial cable solves exactly this problem.

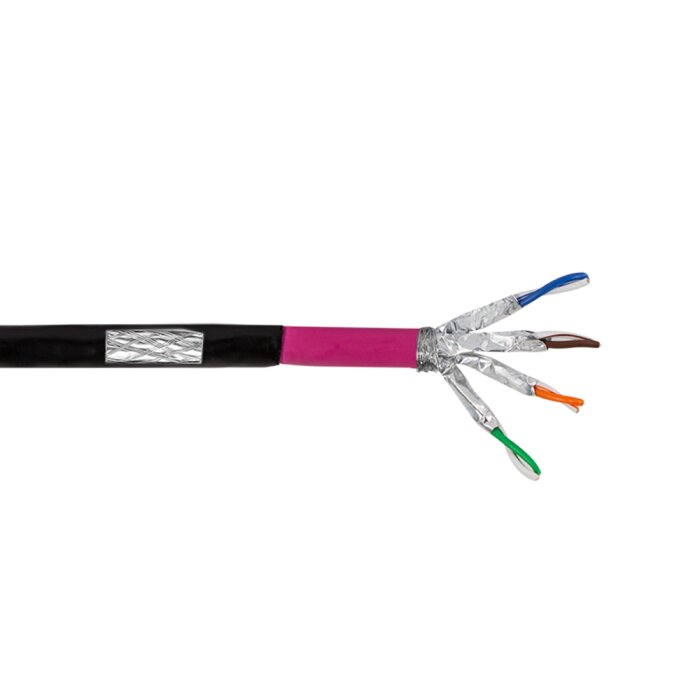

It is equipped with a thick, black polyethylene (PE) outer jacket. This special plastic does not harden, is extremely tear-resistant, and reliably protects the interior of the cable from moisture, soil acids, and aggressive UV radiation. You can bury this cable directly in the ground without the need for an additional protective conduit.
Lossless 10G Performance (CAT 7)
Whether you are connecting a high-resolution PoE surveillance camera at the garden gate or extending your home network to the garage via an underground cable: You don't have to compromise on performance. The thick AWG23 solid copper conductors (OFC - Oxygen Free Copper) guarantee excellent signal transmission at frequencies up to 1000 MHz. This makes the cable fully 10 Gigabit capable (10GBASE-T).
Double Shielded Holds Better (S/FTP)
Shielding is crucial, especially when network cables are laid in the same trench as strong 230V power cables for outdoor lighting. The LogiLink CPV0081 uses the S/FTP standard: Each of the four wire pairs is wrapped in its own aluminum foil (PiMF), and the entire cable bundle is additionally surrounded by a dense copper braid. Interference (crosstalk) doesn't stand a chance here!
Tip: Since this is a solid installation cable, you will need LSA network sockets, patch panels, or toolless keystone jacks (such as the Wirewin WKS JACK) at the ends to provide plug-in points for your end devices.
Technical Data
| Brand: | LogiLink |
| Model / Part Number: | CPV0081 |
| Cable Type: | Installation Cable / Bulk Cable (Solid) |
| Specification: | CAT 7 (up to 1000 MHz / 10 Gbps) |
| Shielding Class: | S/FTP (PiMF + overall braided shield) |
| Inner Conductor: | 4x 2x AWG23/1 Solid Copper (OFC - 0.57mm) |
| Outer Jacket: | PE (Polyethylene) - Weather and UV resistant |
| Application Area: | Outdoor & Direct Burial |
| Temperature Range: | -20°C to +75°C |
| Outer Diameter: | approx. 8.6 mm |
| Length: | 50 Meters (Ring) |
| Color: | Black |
Scope of Delivery
| 1 x LogiLink CPV0081 CAT 7 Direct Burial Cable S/FTP (50 Meters, Black) |
