LogiLink NP0079N: Cheap Insurance for Expensive Ports
A careless moment, a foot in the cable tangle – and the expensive notebook is on the floor or the network socket is broken out of the motherboard. Such damages cost hundreds of Euros and nerves. The LogiLink Break-Away Adapter costs a fraction and prevents exactly that.
How does "Break-Away" work?

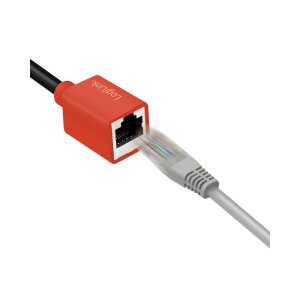

The adapter is simply plugged into the RJ45 port of your device. Your actual network cable goes into the socket of the adapter. * Normal Operation: The connection is stable. Data flows at up to 10,000 Mbit/s (10G). The cable does not fall out on its own. * In an Emergency: As soon as a pulling force of 10 Newton (approx. 1 kg) acts on the cable – e.g., by tripping – the plug connection releases immediately. The energy is directed into the separation, not your device.
Areas of Application
This adapter is mandatory for all mobile and temporary network installations: * Medical: Ward rounds carts and mobile diagnostic devices in hospitals. * Office & School: Laptops in meeting rooms or classrooms. * Events: Cabling on stages or exhibition stands with public traffic. * IT Pros: Protection of the service port on the laptop when working in the server room.
Technical Data
| Manufacturer / Model: | LogiLink / NP0079N |
| Type: | RJ45 Device Protection Adapter (Break-Away) |
| Category: | Cat.6A Class EA (10 Gbit/s) |
| Release Force: | approx. 10 N (Newton) |
| Connectors: | 1x RJ45 Male to 1x RJ45 Female |
| Cable Structure: | S/FTP (Braid + Pair Foil), 26 AWG |
| Contacts: | Gold Plated (Corrosion Resistant) |
| Jacket: | LSZH (Low Smoke Zero Halogen) |
| Length: | 20 cm |
| Color: | Black / Red (Signal effect) |
| Compatibility: | Backwards compatible with Cat.6 and Cat.5e |
Scope of Delivery
| 1 x LogiLink NP0079N Break-Away Adapter (20cm) |
