The Challenge: Complicated Network Installations
You're probably familiar with it: A new Network connection is needed, but the installation is complex, requires special tools, and wastes valuable time. Conventional RJ45 connectors are often fiddly to assemble and don't always offer the necessary performance for modern high-speed networks. This leads to frustration and unnecessary delays in your projects.
The Solution: LogiLink MP0040 – Simplicity Meets Performance

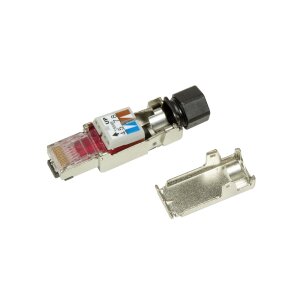

The LogiLink MP0040 CAT.6a RJ45 Connector revolutionizes your Network installations. Thanks to its field-terminable and tool-free design, you can quickly and easily assemble this connector on-site. This not only saves time but also reduces the need for additional equipment. It is the ideal choice for efficient and reliable Cabling.
The Details: Robust, Fast, and Future-Proof

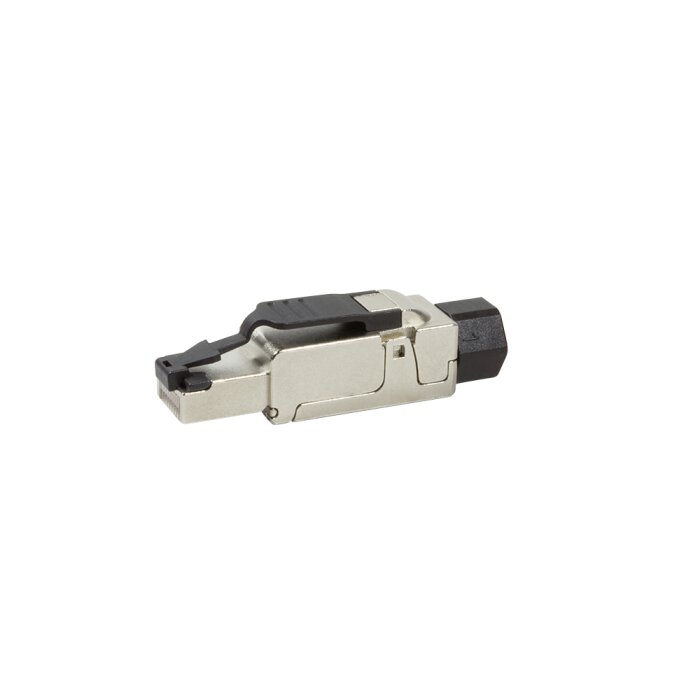

This high-quality RJ45 connector is designed for CAT.6a networks and supports impressive 10 Gigabit Ethernet (10GbE) speeds. Its fully shielded zinc alloy housing provides excellent protection against electromagnetic interference, while the 50µ gold-plated phosphor bronze contacts ensure optimal signal transmission. The connector is also PoE, PoE+, and PoE++ compatible and suitable for solid and stranded conductors from AWG23-26 with an outer cable diameter of 6-8 mm.
Your Advantage: Maximum Efficiency and Reliability
With the LogiLink MP0040, you invest in a solution that not only enables easy installation but also offers maximum performance and stability in the long term. Whether in the office, at home, or in industrial environments – this connector ensures a robust and fast network connection that meets the demands of modern applications. Experience the difference that quality and thoughtful design can make.
Technical Specifications
| Manufacturer: | LogiLink |
| Model: | MP0040 |
| Product Type: | RJ45 Connector, field-terminable |
| Category: | CAT.6a (Class EA) |
| Connector Type: | RJ45 Plug (male) |
| Shielding: | Fully Shielded (Metal with Zinc Alloy) |
| Assembly: | Tool-free, field-terminable |
| Supported Networks: | 10 Gigabit Ethernet (10GbE) |
| PoE Support: | PoE, PoE+, PoE++ |
| Standards: | ISO/IEC11801, TIA568-C.2, UL 1863 listed |
| Contacts: | Phosphor Bronze Alloy, 50µ gold-plated |
| Conductor Types: | For flexible and solid conductors |
| Conductor Cross-Section: | AWG23-26 (AWG22/1-26/1 solid, AWG23/7-27/7 flexible) |
| Pin Assignment: | T568A & T568B (optional PROFINET) |
| Cable Outer Diameter: | 6-8 mm (up to 8.5 mm) |
| Diameter of Insulated Conductors: | Approx. 1 - 1.5 mm |
| Housing Material: | Zinc Alloy |
| Color: | Black, Silver / Metallic |
| Dimensions (L x W x H): | Approx. 55.3 x 13.8 x 15 mm |
| Weight: | Approx. 0.020 kg |
Package Contents
| 1 x LogiLink MP0040 CAT.6a RJ45 Connector |
| 1 x Installation Manual |
Frequently Asked Questions (FAQ)
What does 'field-terminable' mean for the LogiLink MP0040?
Field-terminable means that you can connect the LogiLink MP0040 CAT.6a RJ45 connector directly on-site, in the field, without special crimping tools. This allows for quick, easy, and flexible installation.
What network speeds does the LogiLink MP0040 support?
The LogiLink MP0040 is a CAT.6a connector and supports 10 Gigabit Ethernet (10GbE). This makes it ideal for high-speed networks requiring high bandwidth.
Is the LogiLink MP0040 compatible with Power over Ethernet (PoE)?
Yes, the LogiLink MP0040 is fully compatible with PoE, PoE+, and PoE++. This means it can transmit both data and power over the same network cable, simplifying the installation of PoE-enabled devices.
What cable types and diameters is this RJ45 connector suitable for?
The LogiLink MP0040 is suitable for flexible and rigid conductors with a cross-section of AWG23-26. The maximum outer diameter of the network cable should be between 6 and 8 mm, with insulated conductors having a diameter of approximately 1 to 1.5 mm.
Does the LogiLink MP0040 offer protection against interference?
Absolutely! The LogiLink MP0040 features a fully shielded zinc alloy housing. This shielding provides excellent protection against electromagnetic interference (EMI) and ensures stable and reliable data transmission, even in environments with many sources of interference.
