Cable Too Short or Broken? Here is the Solution.
It happens faster than you think: A spade stroke in the garden, and the thick earth cable to the garage is cut. Or you lay high-quality Cat.7 cable and realize at the end: You are 3 meters short. You don't have to pull the entire cable again. The LogiLink NP0087 is a waterproof junction box. You strip both cable ends, insert them into the connector, and clamp the wires inside onto the contacts.
Ready for Cat.7 and Cat.8 Cables
Many simple connectors fail with the thick wires of modern cables. The NP0087 does not. It accepts wire gauges up to AWG 22. This means you can easily repair or extend rigid Cat.7 and Cat.8 earth cables without the wires getting crushed or breaking.
Professional Connection instead of DIY Fixes
Wire nuts and electrical tape have no place with network cables (data loss!).
The NP0087 restores the twisting and shielding. As a result, you maintain full bandwidth and signal quality. Officially certified as Cat.6A (10 Gbps), the hardware is so robust that it doesn't slow down even higher-quality cable runs.
Technical Data: Function
| Manufacturer: | LogiLink Professional |
| Model: | NP0087 |

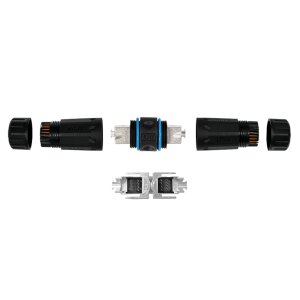

| Type: | Connection Module (LSA/IDC) |
| Standard: | Cat.6A (10 Gbps) |
| Suitable Cable Types: | Cat.5e, Cat.6, Cat.6A, Cat.7, Cat.8 |
Technical Data: Material & Dimensions
| Protection Class: | IP68 (Dust & Waterproof) |
| Housing: | Nylon PA66 (High-quality plastic) |
| For Cable Diameter: | 6 - 9 mm (Round cables) |
| For Wire Gauge: | AWG 22 to 26 (Solid wire) |
| Shielding: | Yes (Full metal inner housing) |
Scope of Delivery
| 1x LogiLink NP0087 Outdoor Junction Box |
| Incl. waterproof cable glands |
