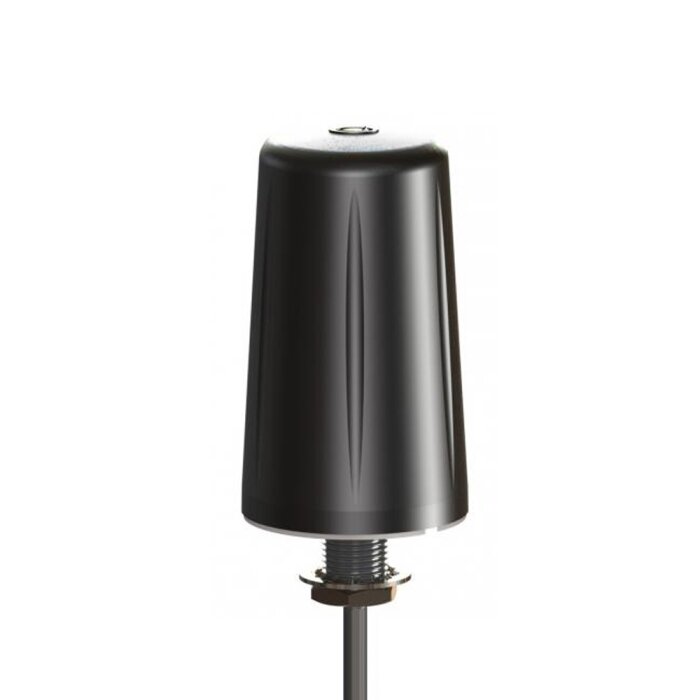

Your Discreet Power Connection: The Panorama LPB-6-60-5SP
Do you need a reliable Mobile Antenna that not only convinces technically but also remains optically discreet? Then the Panorama LPB-6-60-5SP is exactly what you're looking for. This innovative Low Profile Antenna is specially designed to deliver maximum performance in a compact, unobtrusive design. No more bulky installations! With its low height of only approx. 8.2 cm, it blends perfectly into any environment, whether as a Roof Antenna on a vehicle or on a building. It's your ideal partner if you value aesthetics and uncompromising connectivity.
Robustness Meets Critical Applications: More Than Just an 4G Antenna
The Panorama LPB-6-60-5SP is no ordinary device – it's a true workhorse designed for the toughest conditions. Its IP66 certification means it is dust-tight and protected against powerful water jets, making it predestined for use in industrial environments. But that's not all: This Broadband Antenna is even approved for public safety and is used in critical communication systems such as AT&T FirstNet, NGCC, P25 radios, and TETRA radios. This underscores its outstanding reliability and performance. It is also the perfect choice for Smart Metering, vending machines, kiosks, and the entire utility sector to ensure a stable and secure connection.
Future-Proof Connectivity with Maximum Flexibility
With the Panorama LPB-6-60-5SP, you are perfectly equipped for the digital future. It supports not only 2G, 3G, and 4G but is also a full-fledged 5G Antenna, covering an impressive frequency range from 617 MHz to 6000 MHz. This means for you: You benefit from a future-proof solution for your M2M Connectivity and IoT Applications. The integrated 5 Meter Cable, a high-quality, double-shielded CS29 Coaxial Cable, offers you maximum flexibility during installation. No long search for the right Antenna Cable – everything you need is already included. The standardized SMA Connector also ensures a problem-free connection with most 4G / 5G Routers.
Optimal Performance Made Easy: Your Setup for Best Results
To unleash the full performance of your Panorama LPB-6-60-5SP, there's an important tip: For optimal performance, it requires a conductive ground plate of at least 300 mm diameter. This so-called "Ground Plane" is crucial for the efficiency of the omnidirectional antenna. Don't worry if you don't have a suitable metal surface available – you can also mount the antenna with a special bracket (e.g., p/n B4BE-6-60). Mounting is simple as a Panel Mount Antenna through a drill hole. This ensures that your connection is always stable and fast, no matter where you use it.
Strengths & Notes at a Glance
- Pro: Wide Frequency Coverage from 617 MHz to 6000 MHz for 2G, 3G, 4G, and 5G mobile communication bands, ideal for future-proof applications.
- Pro: Extremely robust and weatherproof thanks to IP66 certification, perfect for demanding industrial and outdoor applications.
- Pro: Low-profile design (approx. 8.2 cm high) and integrated 5 Meter CS29 Coaxial Cable with SMA Connector for discreet and flexible installation.
- Pro: Versatile in critical communication systems, Smart Metering, M2M Connectivity, and IoT Applications.
- Note: For optimal performance, a conductive ground plate of at least 300 mm diameter is required, which must be considered in installation planning.
- Note: Mounting requires a drill hole, which may mean additional effort for some installations.
Specifications & Features
| Manufacturer: | Panorama Antennas |
| Model: | LPB-6-60-5SP |
| Product Type: | Mobile Antenna |
| Frequency Range: | 617-960 MHz / 1710-6000 MHz |
| Supported Technologies: | 2G, 3G, 4G, 5G |
| Antenna Type: | Omnidirectional, Low Profile |
| Connector: | SMA (male) |
| Cable Type: | CS29 Coaxial Cable, double-shielded |
| Cable Length: | 5 Meters |
| Cable Diameter: | 5 mm |
| Protection Class: | IP66 (Dust-tight, protected against powerful water jets) |
| Mounting Type: | Panel Mount (Screw mounting through drill hole) |
| Required Ground Plate: | Conductive, min. 300 mm diameter for optimal performance |
| Height: | Approx. 8.2 cm |
| Radome Material: | Impact-resistant |
| Application Scenarios: | Smart Metering, Utilities, Kiosks, Vending Machines, M2M, IoT, Public Safety (FirstNet, NGCC, P25, TETRA, UK Emergency Services Network) |
| Quantity: | Single unit |
Scope of Delivery
| 1 x Panorama Antennas LPB-6-60-5SP (5G/4G Low Profile Antenna with integrated 5m CS29 Cable and SMA Connector) |
Frequently Asked Questions (FAQ)
Which mobile communication standards does the Panorama LPB-6-60-5SP antenna support?
Your antenna supports 2G, 3G, 4G, and 5G mobile communication standards and covers a wide frequency range of 617-960 MHz and 1710-6000 MHz.
Does the LPB-6-60-5SP require a ground plane for mounting?
Yes, for optimal performance, your LPB-6-60-5SP requires a conductive ground plane of at least 300 mm (1 foot) in diameter. However, you can also mount it with a special bracket.
What type of cable and connector does the Panorama LPB-6-60-5SP have?
Your antenna is equipped with an integrated 5-meter, double-shielded CS29 coaxial cable and an SMA connector (male).
Is the antenna suitable for outdoor use?
Yes, your antenna features a robust design and is IP66 certified, making it suitable for use in industrial and domestic outdoor environments.
For which applications is the Panorama LPB-6-60-5SP particularly suitable?
It is ideal for industrial and domestic environments with cellular modems/routers, Machine-to-Machine (M2M) connectivity, IoT applications, smart metering, vending machines, kiosks, and in public safety, making it perfect for your projects.
What does "Low Profile" mean for this antenna?
"Low Profile" means that your antenna has a low height of only approx. 8.2 cm. This allows for discreet installation, especially where space is limited.
