Wireless Link over 30 km: Your Bridge to the Digital World

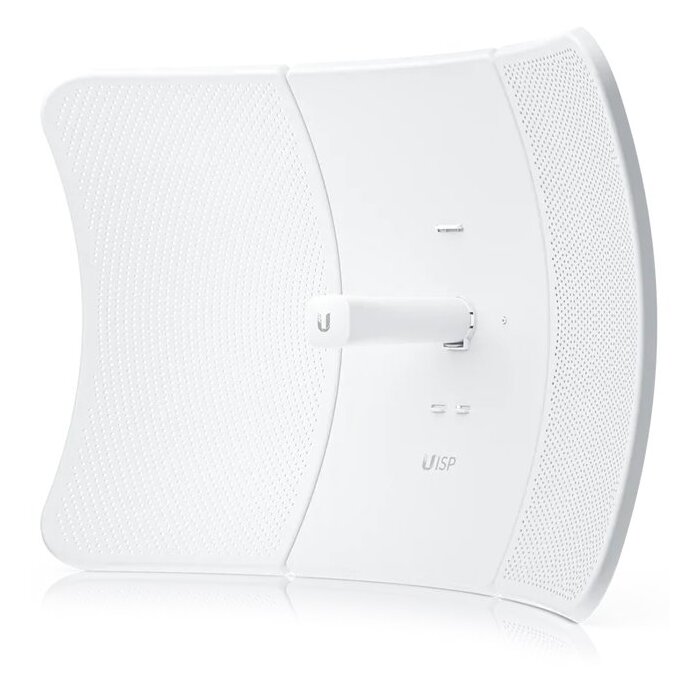

Imagine being able to establish a stable and fast internet connection over a distance you can barely see with the naked eye. This is exactly what the Ubiquiti LiteBeam 5AC XR makes possible. This powerhouse was specifically developed to build a Point-to-Point connection as a WiFi Bridge that masters distances of over 30 kilometers. Whether you want to connect a remote farm, an external company building, or a distant location to your Network – the LiteBeam XR delivers the necessary performance and reliability to overcome digital boundaries.
airMAX ac Technology: Maximum Performance, Minimum Interference
The heart of the LiteBeam 5AC XR is the airMAX ac Technology developed by Ubiquiti. Unlike standard WiFi, which quickly reaches its limits in crowded environments, airMAX ac uses an intelligent TDMA polling method. This means: each client gets fixed time slots for sending and receiving, which drastically reduces collisions and latency issues. In combination with the extremely narrow beamwidth, which simply blocks out lateral interference signals, you get a rock-solid connection with a data throughput of over 450 Mbps. This Antenna is one of the most powerful airMAX ac Components for extreme ranges, operating in the 5 GHz Components frequency band.
Easy Mast Installation: Thanks to Management Radio and PoE
Ubiquiti knows that complex installation can quickly become frustrating. That's why the LiteBeam 5AC XR was designed for the easiest possible mounting and setup. Power Supply and data transmission are done via a single Ethernet Cable thanks to the included passive PoE Injector. The absolute highlight, however, is the dedicated 2.4 GHz Management Radio. Instead of climbing the mast with a laptop, you simply connect to the Antenna with your smartphone via the UISP™ Mobile App to perfectly align and configure it. It hardly gets any faster or more convenient.
The Perfect Solution for Remote Locations and Backhaul Links
The LiteBeam 5AC XR is not a device for home use, but a professional tool for demanding tasks. It is the ideal choice for Internet Service Providers (WISPs) who supply their customers in rural areas, or for companies that need a cost-effective and powerful backhaul connection between two locations. It is also the perfect solution for connecting IP Cameras or entire Networks in places without cable infrastructure. When maximum range and stability are paramount, there's no getting around this Antenna.
Strengths & Notes at a Glance
- Pro: Specifically developed for extreme ranges of 30+ km.
- Pro: Very high price-performance ratio compared to other wireless link solutions.
- Pro: High interference immunity due to extremely narrow beamwidth.
- Pro: Simplified installation and alignment through dedicated Management Radio and UISP App.
- Note: Uses the proprietary airMAX ac standard and is not compatible with standard WiFi devices (802.11ac).
- Note: The narrow beamwidth requires very precise and stable mechanical alignment of the antenna.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | LiteBeam 5AC XR (LBE-5AC-XR) |
| EAN: | 0810010073587 |
| Device Classification: | CPE (Customer Premises Equipment) / Wireless Bridge |
| Purpose: | Point-to-Point (PtP), Point-to-Multipoint (PtMP Client) |
| Operating System: | Ubiquiti airOS 8 |
| RF Characteristics | |
| Frequency Band (Main Radio Module): | 5.150 - 5.875 GHz (country-dependent) |
| Frequency Band (Management Radio): | 2.400 - 2.483,5 GHz (for configuration only) |
| WiFi Standard: | Proprietary airMAX ac (not compatible with 802.11ac) |
| Antenna Gain: | 29 dBi |
| Max Transmit Power (TX Power): | +25 dBm |
| Channel Bandwidths: | 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz |
| Polarization: | Dual-Linear |
| Isolation: | 20 dB |
| Beamwidth (HPOL, 3dB / 6dB): | 5.5° / 7.5° |
| Beamwidth (VPOL, 3dB / 6dB): | 5.5° / 7.5° |
| Beamwidth (Elevation, 3dB / 6dB): | 5.5° / 7.5° |
| Electrical Downtilt: | 0° |
| Hardware & System | |
| Processor (CPU): | Atheros MIPS 74Kc @ 720 MHz |
| Memory (RAM): | 64 MB DDR2 |
| Ports: | (1) Gigabit Ethernet Port (10/100/1000 MBit/s) |
| Integrated GPS: | Yes, for GPS Sync |
| Max Data Throughput: | 450+ Mbps |
| LED Indicators: | Power, Ethernet |
| Power Supply | |
| Power Supply Method: | Passive PoE (24V) |
| Supported Voltage Range: | 22 - 27V DC |
| Max Power Consumption: | 7 Watt |
| Included Power Supply: | 24V DC, 0.5A Gigabit PoE Adapter |
| Physical Characteristics | |
| Dimensions: | 747 x 525 x 347 mm |
| Weight: | 3.2 kg |
| Housing Material: | Aluminum alloy, UV-stabilized polycarbonate |
| Mounting: | Pole mounting for Ø 35 to 60 mm (included) |
| Wind Load: | 1100 N at 200 km/h |
| Wind Resistance: | 200 km/h |
| Environment & Certifications | |
| Weather Resistance: | IPX6 (Protection against strong water jets) |
| Operating Temperature: | -40°C to 70°C |
| Operating Humidity: | 5 to 95% (non-condensing) |
| Certificates: | FCC, IC, CE |
| Software & Security | |
| Management: | Web-UI, UISP™ Mobile App |
| Software Tools: | airView Spectrum Analyzer, Speed Test, Alignment Tool |
| Encryption: | WPA2-PSK (AES) |
Scope of Delivery
| 1 x Ubiquiti LiteBeam 5AC XR (LBE-5AC-XR) |
| 1 x Pole Mounting Kit |
| 1 x Gigabit PoE Adapter (24V, 0.5A) with Power Cord |
Frequently Asked Questions (FAQ)
Can I use the LiteBeam 5AC XR as a regular WiFi Access Point for my home?
No, that is not possible. The device is a highly directional antenna for point-to-point connections and uses the proprietary airMAX protocol. It cannot provide WiFi to standard clients like smartphones or laptops, as it's designed for specialized airMAX ac Components rather than general WiFi Access Points.
What is the realistic range of the LiteBeam 5AC XR?
Under ideal conditions with a clear line-of-sight, the manufacturer specifies a range of over 30 km. In practice, the maximum distance heavily depends on environmental factors such as weather, humidity, and potential radio interference affecting the Network.
Do I need a license to operate the LiteBeam 5AC XR?
The device operates in the globally license-free 5 GHz frequency band. However, country-specific regulations regarding the maximum allowed transmit power (EIRP) must be strictly observed, which is configured in the airOS software. This is crucial for proper deployment of 5 GHz Components and 5 GHz Antennas.
What does 'airMAX ac' mean and is it compatible with WiFi 5 (802.11ac)?
airMAX ac is a proprietary TDMA (Time Division Multiple Access) protocol developed by Ubiquiti Networks. It is optimized for outdoor use to maximize the efficiency and stability of directional radio links, utilizing airMAX ac Components. It is not compatible with the standard IEEE 802.11ac (WiFi 5).
How is the LiteBeam 5AC XR powered?
Power is supplied exclusively via the included 24V Passive Power over Ethernet (PoE) adapter. A single Ethernet Cable provides both data and power to the device, simplifying outdoor installation and reducing the need for separate PoE Injectors / Power Supplies.
Is the device weatherproof?
Yes, the LiteBeam 5AC XR has an IPX6 protection rating, which protects it against strong water jets. It is designed for year-round outdoor use in a temperature range of -40°C to 70°C, making it suitable for various Mounting Systems.
