Uncompromising Remote Surveillance

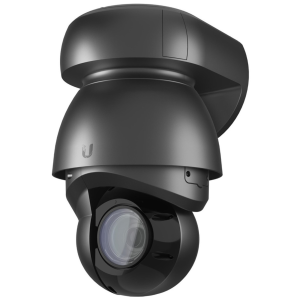

Do you know the problem when a standard surveillance camera reaches its optical limits and only delivers pixelated mush? This is exactly where the Ubiquiti UniFi Protect G4 PTZ comes in. It is specifically designed for situations where you need to recognize every detail, no matter how far away. With its impressive 22x optical zoom and crisp 4K resolution, you can read license plates at the far end of a large parking lot or clearly identify faces in a crowd. This is surveillance without compromise.
Lag-Free Control – for Maximum Command
Many PTZ (Pan-Tilt-Zoom) cameras have a known drawback: sluggish control. You issue a command, and the camera only reacts seconds later. This makes active object tracking frustrating and inefficient. Ubiquiti has consistently solved this problem with the G4 PTZ. It offers extremely low latency, so movements follow your inputs in the UniFi Protect App almost in real-time. This makes dynamic surveillance a breeze and ensures you always maintain full control over your field of view.
Technology That Convinces: Sensor, Night Vision, and Robustness

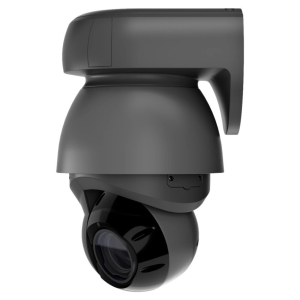

At the heart of the G4 PTZ is a high-quality 1/1.8" Sony 4K (8 MP) CMOS image sensor, which ensures razor-sharp 4K images at 24 FPS during the day. But even when darkness falls, this camera won't let you down: high-performance adaptive IR LEDs switch on and clearly illuminate objects up to 100 meters away. The multi-exposure HDR function ensures excellent image dynamics even in challenging lighting conditions. The robust metal and plastic housing is IP66 weatherproof certified, making the camera ideal for use in extreme conditions – from -40°C to +50°C. Video transmission is efficiently handled via H.264 compression through the integrated Gigabit Ethernet port. For power supply, an 802.3bt PoE++ standard is required, allowing a maximum power consumption of 42.9W.
Smart Integration and Easy Management

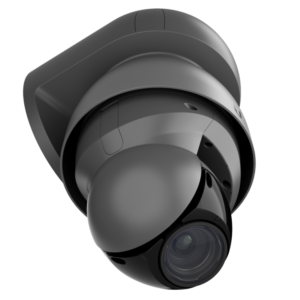

The Ubiquiti UniFi Protect G4 PTZ is not only a technical masterpiece but also a prime example of easy integration and intuitive management. It is fully integrated into the UniFi Protect software and mobile app. For you, this means: a central interface for all your UniFi Protect cameras, easy configuration, live views, playback of recordings, and intelligent notifications directly to your smartphone. Installation is straightforward thanks to the included wall mount kit, but make sure your infrastructure supports the PoE++ standard to ensure the camera's full performance.
Technical Data
| Model: | Ubiquiti UniFi Protect G4 PTZ (UVC-G4-PTZ) |
| Resolution: | 4K UHD (3840 x 2160) at 24 FPS |
| Image Sensor: | Sony 4K (8 MP) 1/1.8" CMOS Sensor |
| Optical Zoom: | 22x with F1.5 Lens |
| Night Vision: | Adaptive IR LEDs, up to 100 m (300 ft) range |
| View Angle (H/V): | Horizontal: 3° to 64°, Vertical: 2° to 37° |
| Video Compression: | H.264 |
| Network Interface: | (1) 10/100/1000 Mbps Gigabit Ethernet RJ45 Port |
| Power Method: | 802.3bt PoE++ |
| Max. Power Consumption: | 42.9W |
| Enclosure Materials: | Metal, Plastic |
| Mount Material: | Metal |
| Weatherproofing: | IP66 Certified |
| Operating Temperature: | -40 to 50° C (-40 to 122° F) |
| Operating Humidity: | 0 to 90% non-condensing |
| Dimensions: | 207 x 223.7 x 341.3 mm (8.15 x 8.81 x 13.44") |
| Weight (without/with mount): | 3.8 kg (8.38 lb) / 6.8 kg (14.99 lb) |
| Processor: | Ambarella S5L66 |
| Memory: | 1 GB |
| Flash Memory: | 256 MB |
| Management: | UniFi Protect Software and Mobile App |
| Certifications: | FCC, IC, CE |
Scope of Delivery
| 1 x Ubiquiti UniFi Protect G4 PTZ Camera (UVC-G4-PTZ) |
| 1 x Wall Mount Kit |
| 1 x PoE++ Injector (if not integrated into switch) |
| 1 x Screw Set and Wall Plugs |
| 1 x Quick Start Guide |
Homepage: https://www.ui.com
