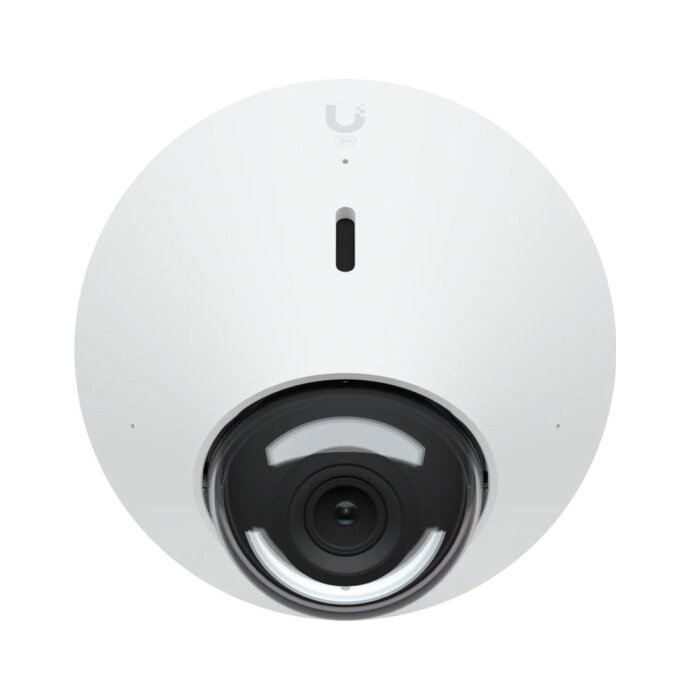

G5 Dome: The Robust All-Rounder with HDR
The Ubiquiti UVC-G5-DOME is the perfect solution if you need discreet surveillance that cannot be easily disabled. While normal cameras often look bulky, the G5 Dome sits flat and elegantly on the ceiling. Thanks to the IK08 certification, it is protected against impact – ideal for retail stores, stairwells, or covered outdoor areas (carports), where cameras often hang within reach of hands.
Why HDR is so important
A camera's biggest enemy is backlight. Imagine a dark shop, the sun is shining outside. Without HDR, the face of the person entering is black.
The G5 Dome with HDR balances these differences. It brightens shadows and dims bright areas so you can recognize who is in front of the lens in any situation.
Genius Simplicity: The UniFi Protect System
The real reason pros and home users love this camera is the software. Forget complicated IP configurations. Simply plug the G5 Dome into your PoE switch, and your UniFi Console (e.g., Cloud Key, Dream Machine, or NVR) detects it in seconds ("Plug & Play").
Via the free, license-free app, you have access from anywhere in the world. Scroll through the timeline at lightning speed, download clips, and manage your security – all without monthly cloud subscription fees, as your data stays locally with you.
Intelligence Meets Wide Angle
With a viewing angle of over 100°, almost nothing escapes it. Combined with the new AI engine, which now also recognizes animals and reports acoustic alarms (Smoke/CO), the G5 Dome becomes a comprehensive security sensor for your building.
Detailed Technical Data: Optics & Video
| Sensor: | 5 MP CMOS Sensor |
| Lens: | Fixed Focal Length |
| Aperture: | ƒ/2.4 |
| Resolution: | 4 MP (2688 x 1512) at 30 FPS |
| Field of View: | H: 102.4°, V: 54.9°, D: 120.6° |
| Image Enhancement: | HDR (High Dynamic Range), Low-Light Enhancement |
| Night Vision: | IR LEDs (up to 9m) with mechanical IR Cut Filter |
| Compression: | H.264 |
Detailed Technical Data: System & AI
| Processor: | Dual-Core Arm® Cortex®-A7 |
| Smart Detection: | People, Vehicles, Animals, Smoke/CO Alarm (Audio) |
| Networking Interface: | 1x 10/100 MbE RJ45 Port |
| Power Method: | PoE (37—57V DC) |
| Power Consumption: | Max. 5 Watts (very efficient) |
| Audio: | Microphone & Speaker (2-Way Audio) |
Mechanics & Environment
| Enclosure Material: | Aluminum Alloy & Polycarbonate (Hard-Coated) |
| Weatherproofing: | IPX4 (Splash resistant - Under-eave mounting recommended) |
| Impact Resistance: | IK08 (Vandal Resistant) |
| Mounting: | Wall or Ceiling (Surface mount) |
| Operating Temperature: | -20° C to +40° C (-4° F to 104° F) |
| Dimensions: | Ø 109.2 x 64.5 mm |
| Weight: | approx. 370 g |
Scope of Delivery
| 1x Ubiquiti G5 Dome Camera |
| 1x Mounting Plate |
| 1x Screw Kit & Anchors |
| Note: PoE Injector is not included! |
