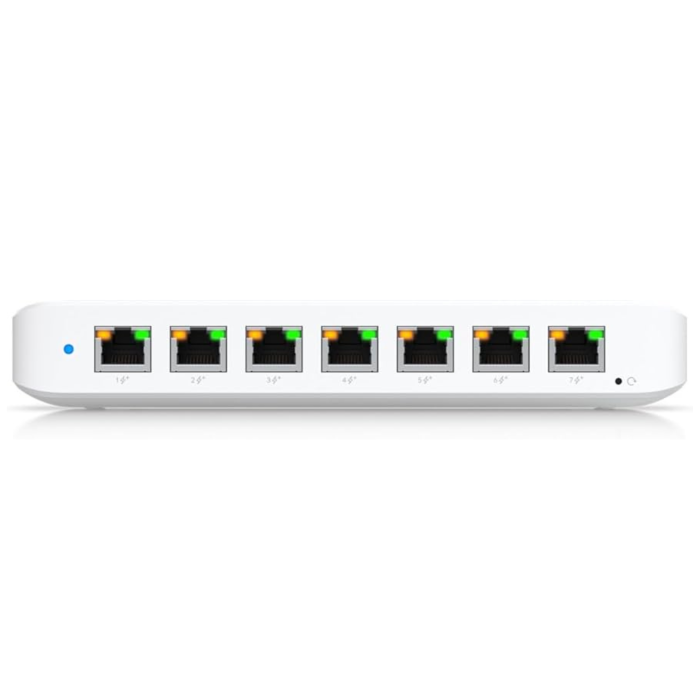

Power for your Network: The Ubiquiti UniFi USW-Ultra-210W
Are you looking for a Network switch that is not only compact but also delivers plenty of power? The Ubiquiti UniFi USW-Ultra-210W is exactly what you need. With an impressive 202W PoE Budget, you can effortlessly power a variety of your PoE-enabled devices such as access points, IP Cameras, or VoIP phones. The best part: you are flexible with the power supply! Whether via the included 210W AC adapter or directly via PoE++ input on Port 1 – this UniFi Switch adapts to your requirements.
Full Control with the UniFi Network Controller
As a Layer 2 Managed Switch, the USW-Ultra-210W offers you comprehensive options for controlling and monitoring your network. Via the intuitive UniFi Network Controller, you manage all settings centrally and keep an overview. Robust Layer 2 features such as STP & RSTP, Egress Rate Limiting, Flow Control, Storm Control, and Port Isolation ensure a stable and efficient network management environment. This way, you can easily optimize your network's performance and security.
Compact, Flexible, Ready for Use Anywhere
Space is often a luxury, especially in modern environments. The USW-Ultra-210W stands out with its extremely compact design and versatile mounting options. Whether as a desktop switch, for wall mounting, or even magnetically – you integrate it discreetly and efficiently into your smart home network, small office, or retail space. Its small size makes no compromises on performance, making it the perfect companion for any installation.
Application Scenarios: More Than Just a Switch
The Ubiquiti UniFi Switch Ultra 210W is not just a simple 8-Port Gigabit Ethernet switch, but a versatile solution for a variety of scenarios. Imagine powering all your UniFi Access Points in a small office with a single switch, without additional power adapters. Or seamlessly integrating your IP Cameras into your security system, while the switch itself is powered by a larger PoE++ switch. Its robust Layer 2 features are crucial for maintaining stable and efficient data transmission in complex environments. Whether for your home or business, this switch offers you the necessary flexibility and performance.
Strengths & Notes at a Glance
- Pro: High PoE Budget: With a PoE budget of up to 202W (when using the 210W AC adapter), the switch can reliably power a variety of PoE-enabled devices such as access points, IP Cameras, and VoIP phones.
- Pro: Versatile Power Supply Options: The switch can be operated either via the included 210W AC adapter or via PoE++ (on Port 1), which offers flexible installation options and facilitates integration into existing UniFi infrastructures.
- Pro: Compact Design and Flexible Mounting: Its small form factor and support for desktop, wall, and magnetic mounting allow for easy and discreet integration into various environments, even with limited space.
- Note: Layer 2 Limitation: As a pure Layer 2 switch, it lacks advanced Layer 3 functions such as routing, which can be a limitation for more complex network requirements or larger enterprise networks.
- Note: Temperature-Dependent PoE Budget: The maximum PoE budget of 202W is available at an operating temperature of 45°C and decreases at higher temperatures (e.g., to 161W at 60°C), which must be considered in warmer environments or under high load.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi Switch Ultra 210W (USW-Ultra-210W) |
| Product Type: | Layer 2 Managed PoE+ Switch |
| Number of Ports: | 8x Gigabit Ethernet |
| PoE Output: | 7x PoE+ (802.3at) |
| PoE Input: | 1x GbE PoE++ (802.3bt) |
| PoE Budget (max.): | 202W (with 210W AC adapter at 45°C) |
| Power Supply: | PoE++ (802.3bt) or 210W AC Adapter (incl.) |
| Management: | UniFi Network Controller |
| Switching Capacity: | 16 Gbps |
| Forwarding Rate: | 11.9 Mpps |
| Layer Functions: | Layer 2 (STP, RSTP, Egress Rate Limiting, Flow Control, Storm Control, Port Isolation, Port Mirroring, Jumbo Frames, Loop Protection) |
| Mounting Options: | Desktop, Wall, Magnetic |
| Operating Temperature: | -10 to 60°C |
| Humidity: | 5 - 95% non-condensing |
| Housing Material: | Metal |
| Fan: | Fanless |
Scope of Delivery
| 1 x Ubiquiti UniFi Switch Ultra 210W (USW-Ultra-210W) |
| 1 x 210W AC Power Adapter |
| 1 x Mounting Kit |
Frequently Asked Questions (FAQ)
What does "202W PoE Budget" mean for the Ubiquiti UniFi Switch Ultra 210W?
The "202W PoE Budget" indicates the maximum total power that the switch can deliver to connected devices via its PoE ports when you operate it with the 210W AC adapter. This allows you to power multiple PoE-enabled devices simultaneously.
Can the Ubiquiti USW-Ultra-210W be powered via PoE itself?
Yes, the USW-Ultra-210W features a GbE PoE++ input port through which it can be powered itself. This offers you additional flexibility in placing your switch.
What kind of devices can I connect to and power with the UniFi Switch Ultra 210W?
You can connect and power a variety of PoE-enabled devices, including Ubiquiti UniFi Access Points, IP Cameras, VoIP Phones, and other compatible network devices that support PoE+ (802.3at) or PoE (802.3af).
Is the Ubiquiti UniFi Switch Ultra 210W a managed switch?
Yes, the USW-Ultra-210W is a managed Layer 2 Gigabit switch. It is managed via the UniFi Network Controller, which allows for central configuration, monitoring, and troubleshooting.
What mounting options does the Ubiquiti USW-Ultra-210W offer?
The switch offers versatile mounting options, including desktop, wall, and magnetic mounting, allowing for flexible placement in various environments.
How many PoE ports does the Ubiquiti UniFi Switch Ultra 210W have and which PoE standards are supported?
The switch has a total of 8 Gigabit Ethernet ports. Of these, 7 ports are PoE+ (802.3at) output ports and 1 port is a GbE PoE++ (802.3bt) input port, which you can also use as a regular GbE port.
