Silent Power: The UniFi 24 Port Switch for your Office
No more annoying fan noise! The Ubiquiti UniFi USW-24 was specially developed for environments where concentration and quiet are crucial. Thanks to its passive cooling system, this powerful 24-port UniFi Switch operates absolutely silently. Whether in the office, home cinema, or sound studio – it delivers maximum performance without disturbing the working atmosphere. This Ethernet Switch is the basis for a professional and discreet Network.
Your Network, One Interface: Central Management in the UniFi Ecosystem
The biggest advantage of the USW-24 lies in its perfect integration into the UniFi ecosystem. Forget complicated individual configurations. Via the UniFi Network Controller (on a Cloud Key, server, or PC), you adopt and manage this UniFi Switch and all other UniFi devices centrally. Create VLANs, configure ports, or monitor traffic – all via a single, intuitive user interface. This way, you always have your entire Network fully under control.
Pro Features for your Network: VLAN, Link Aggregation & More
Don't be fooled by its quiet operation. The USW-24 is a full-fledged Managed Layer 2 Switch with features typically found only in the enterprise segment. Segment your Network with 802.1Q VLANs for more security and clarity, bundle ports via LACP (Link Aggregation) for higher throughput to your NAS or server, and protect your Network with advanced security features such as 802.1X port control and DHCP Snooping. It is the flexible hub for demanding tasks.
Thoughtful Design Meets Intuitive Operation

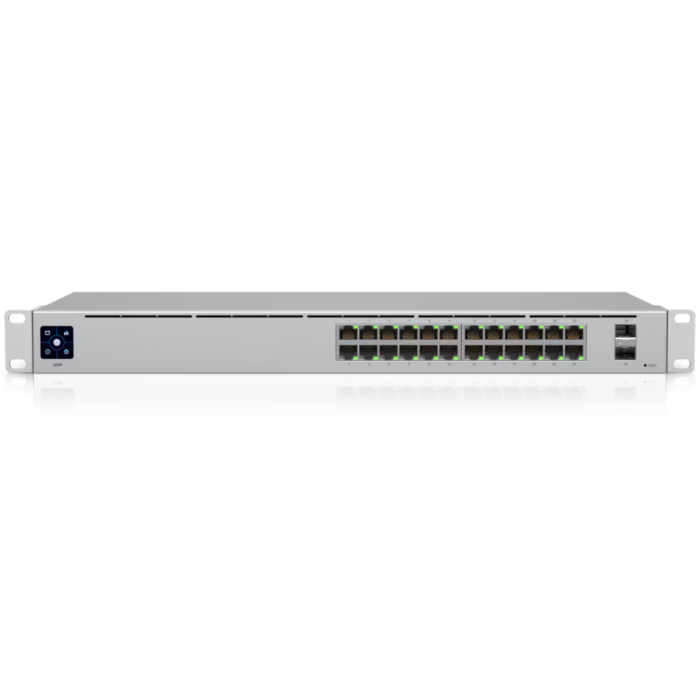

Ubiquiti has thought of everything with the USW-24. The robust steel housing in a 1U format can be easily mounted in a 19-Inch Rack, but also looks good on a desk. The highlight is the 1.3-inch color touchscreen, which provides important status information at a glance. In combination with the UniFi Network App, you can even use Augmented Reality to visualize your port connections – a feature that takes Network management to a new level.
Strengths & Notes at a Glance
- Pro: Completely silent operation due to fanless design, ideal for noise-sensitive environments.
- Pro: Seamless integration and central management via the UniFi Network Controller.
- Pro: Excellent value for money for a manageable 24-port UniFi Switch with SFP uplinks.
- Pro: Extensive Layer-2 functions such as VLANs, LACP, and RSTP for flexible and secure Networks.
- Note: This model does not offer PoE support. For PoE devices, the sister model USW-24-POE is required.
- Note: The SFP Ports are limited to 1 Gbps and do not support 10 GbE (SFP+).
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi USW-24 |
| EAN: | 0810010071385 |
| Device Type: | Managed Layer 2 Network Switch |
| Form Factor: | 1U Rack-mountable, Desktop |
| Dimensions (W x D x H): | 442.4 x 200 x 43.7 mm |
| Weight (without bracket): | 2.70 kg |
| Weight (with bracket): | 2.79 kg |
| Housing Material: | SGCC Steel |
| Network Ports (RJ45): | 24x 10/100/1000 Mbps GbE Ports |
| Uplink Ports (SFP): | 2x 1G SFP Ports |
| Management Interface: | Ethernet In-Band |
| Display: | 1.3-inch LCM Color Touchscreen |
| LED Indicators System: | Status (Boot, Firmware Upgrade, Adopted) |
| LED Indicators Ethernet: | Speed/Link/Activity (Green: 1G, Yellow: 10/100) |
| LED Indicators SFP: | Link/Activity (Green: 1G) |
| Switching Capacity: | 52 Gbps |
| Total Non-Blocking Throughput: | 26 Gbps |
| Forwarding Rate: | 38.69 Mpps |
| MAC Address Table: | 8,000 Entries |
| Jumbo Frames: | Supported |
| VLANs: | Supported (802.1Q Tagging) |
| Link Aggregation: | Supported (LACP, 802.3ad) |
| Spanning Tree Protocol: | STP / RSTP |
| Security Features: | 802.1X Control, RADIUS, Port Isolation, Storm Control, DHCP Snooping, MAC/IP ACLs |
| Other Protocols: | IGMP Snooping, Port Mirroring, LLDP-MED, Voice VLAN, Loop Protection |
| Power Supply: | Internal Power Supply (100-240VAC, 50/60 Hz) |
| Maximum Power Consumption: | 25W |
| Power over Ethernet (PoE): | Not Supported |
| Cooling: | Passive, Fanless |
| Operating Temperature: | -5°C to 40°C |
| Operating Humidity: | 10% to 90% (non-condensing) |
| ESD/EMP Protection: | Air: ± 16 kV, Contact: ± 12 kV |
| Certificates: | CE, FCC, IC |
| Management Software: | UniFi Network Controller (Version 5.12.32 or newer) |
| Mobile App: | UniFi Network Mobile App (iOS/Android) |
| Special Feature: | Supports Augmented Reality (AR) Management |
Scope of Delivery
| 1 x Ubiquiti UniFi Switch USW-24 |
| 1 x Rack Mount Kit |
| 1 x Power Cable |
Frequently Asked Questions (FAQ)
Is the Ubiquiti USW-24 suitable for a home network?
Yes, the USW-24 is excellent for demanding home networks, such as smart homes with many wired devices. It is ideal when silent operation and central management are desired, offering significantly more capacity and management functions than typical consumer Ethernet Switches.
Do I need a UniFi Cloud Key to operate the USW-24?
No, a Cloud Key is not strictly necessary. The UniFi Network Controller Software can also be installed for free on a computer (Windows, macOS, Linux). However, a Cloud Key or a dedicated server offers the advantage that the controller is available 24/7 without a PC needing to run.
Can I use the USW-24 without the UniFi Controller?
No, for configuration and use of management functions such as VLANs or Link Aggregation, integration into a UniFi Network Controller is mandatory. Without it, the Ethernet Switch acts only as a simple, unconfigured switch.
What is the difference between the USW-24 and the US-24?
The USW-24 is the newer Generation 2 version. The main differences are the fanless design for quiet operation, the added 1.3-inch touchscreen for status display, and support for AR management. The USW-24 is the more modern and quieter choice among UniFi Switches.
Does the USW-24 support Layer-3 switching?
No, the USW-24 is a pure Layer-2 Ethernet Switch. It can forward data packets within a VLAN but cannot route between different VLANs. For inter-VLAN routing, a Layer-3 capable device such as a UniFi Gateway or a UniFi Pro Switch is required.
How do I set up port aggregation (LAG) on the USW-24?
Port aggregation (Link Aggregation) is configured in the UniFi Network Controller. You select the desired ports and combine them into an aggregation group. The Ethernet Switch uses the LACP protocol, so the connected device, e.g., a NAS, must also support LACP.
