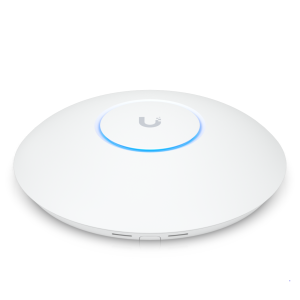

The UniFi U7 Pro is the first WiFi 7 access point from Ubiquiti. It has tri-band WiFi with up to 9.3 Gbit combined data throughput. Data rates of up to 5,765 Mbps can be achieved in the new 6GHz frequency band, 2,882 Mbps in the 5GHz band and 688 Mbps in the 2.4GHz band. Its 2x2 MIMO antenna technology guarantees comprehensive WiFi coverage. The U7 Pro also has a 2.5 Gigabit Ethernet port and is powered via PoE+.
The service of the new WiFi 7 standard makes it possible to provide high-quality data streams to a larger number of clients using the algorithms of the new 802.11be standard. The device is many times more efficient than the previous models in the U6 series. The omnidirectional antenna array is designed to provide increased radio coverage and is optimized for ceiling mounting.
Unlimited scalability
Scale your WiFi network as large or small as you need. The UniFi system can be expanded and enlarged at any time with additional UniFi APs. You can start with a UniFi Accesppoint and add to the system as you wish at any time. The integrated UniFi access points form a network and thus create a large-scale and high-performance WLAN network.
UniFi App
The UniFi AC access points can be configured and controlled either via the UniFi controller software or via the new UniFi app.
Power over Ethernet (PoE)
The U7-Pro is powered via PoE+. A PoE injector is not included in the scope of delivery. The UniFi access point can also be conveniently operated via a UniFi PoE switch.
Technical data:
| Manufacturer / Model: | Ubiquiti Networks / UniFi U7 Pro |
| Network interface: | 1 x 2.5 GbE Ethernet port |
| WiFi frequency band:: | 2.4 GHz / 5GHz / 6GHz |
| WiFi Standards: | 802.11a/b/g/n/ac/ax/be |
| Data rates: | 2.4 GHz: 688 Mbps 5 GHz: 2,882 Mbps 6 GHz: 5,765 Mbps |
| Maximum number of connected clients: | 300+ |
| TX transmission power: | max. 26dBm |
| max. Power consumption: | 21W |
| Power consumption: | 48V, 0.5A PoE Adapter (Not Included) |
| Power supply: | PoE+ (44-57V) |
| Dimensions: | Ø206 x 46 mm |
| Weight: | 680g (without mounting plate) |
| Operating temperature: | -30°C to 60°C |
| Humidity: | 5 - 95% non-condensing |
Scope of delivery:
| 1 x Ubiquiti UniFi U7Pro Accesspoint |
| 1 x wall and ceiling mounting set |
