The Problem: Cable Clutter and Complex Power Supply
Sound familiar? Your network is growing, and with each new device, more power adapters and cables are added. The result is often a tangled mess of cables that not only looks unsightly but also complicates troubleshooting and makes installing new components unnecessarily difficult. Especially for devices that need to be placed away from power outlets, power supply quickly becomes a challenge.

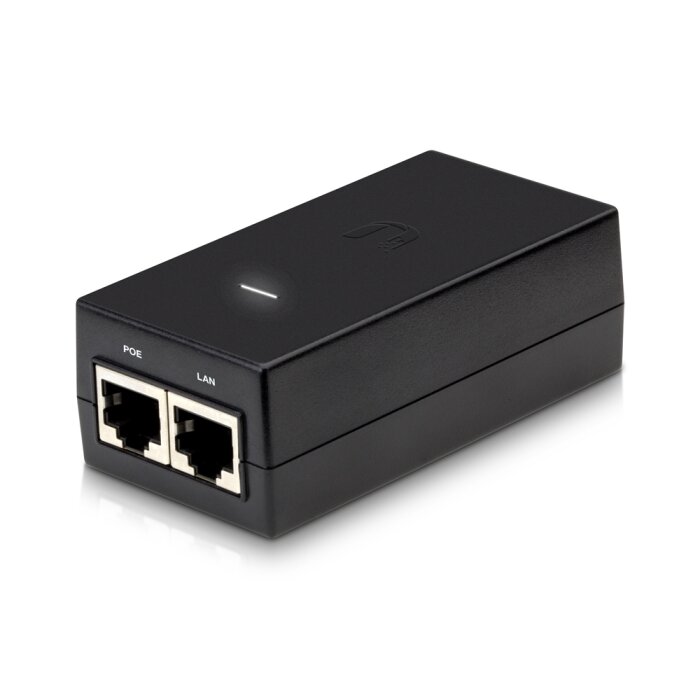

The Solution: The Ubiquiti PoE Injector POE-15-12W
The Ubiquiti PoE Injector POE-15-12W provides the perfect solution. As a dedicated Power over Ethernet Adapter, it allows you to transmit both power and data over a single Ethernet cable. This means fewer cables, a tidier installation, and maximum flexibility when placing your compatible Ubiquiti devices, such as access points or IP cameras.
Maximum Performance and Protection in a Compact Form
This PoE Injector delivers a reliable output power of 15V and 0.8A, totaling 12 Watts. It is perfectly matched for Ubiquiti devices that require this specific power consumption. Furthermore, the POE-15-12W is equipped with comprehensive protection features: surge protection, clamping protection, and robust ESD protection effectively safeguard your connected devices from electrical damage and ensure stable operation. Its compact dimensions of 85 x 44 x 29 mm allow for discreet integration into any environment.
Smart Investment for Your Network
With the Ubiquiti POE-15-12W, you invest in efficiency and security. Its high operational efficiency minimizes energy consumption and reduces long-term operating costs. The integrated protection mechanisms enhance the reliability of your entire network and safeguard your investments. This PoE Injector is the smart choice for anyone looking to optimize their Ubiquiti infrastructure while protecting it from unforeseen electrical events.
Technical Specifications
| Model: | POE-15-12W |
| Manufacturer: | Ubiquiti Networks |
| EAN: | 0810354022968 |
| MPN: | POE-15-12W |
| Output Voltage: | 15V DC |
| Output Current: | 0.8 A |
| Output Power: | 12 Watts |
| Input Voltage: | 90-260V AC |
| Input Frequency: | 47-63 Hz |
| Ethernet Ports: | 1 x 10/100 Mbps RJ45 (Data IN), 1 x 10/100 Mbps RJ45 (PoE Out) |
| PoE Method: | 2-Pair Powering (Pins 4, 5 (+) and 7, 8 (-)) |
| Surge Protection: | Yes (Differential and Common Mode) |
| Clamping Protection: | 11V Data, 60V Power |
| Max. Surge Discharge: | 1500A (8/20 µs) Power |
| ESD Protection: | Yes, with Ground Cable |
| Operating Temperature: | 0°C to 40°C |
| Storage Temperature: | -30°C to 70°C |
| Operating Humidity: | 35 to 95% Non-Condensing |
| Dimensions (WxDxH): | 85 x 44 x 29 mm |
| Certifications: | CE, FCC, IC, UL |
Scope of Delivery
| 1 x Ubiquiti PoE Injector POE-15-12W |
| 1 x AC Power Cord with Ground |
Häufig gestellte Fragen (FAQ)
What is a PoE Injector and why do I need one?
A PoE Injector, like the Ubiquiti POE-15-12W, allows network devices (e.g., access points, IP cameras) to receive power over the same Ethernet cable used for data transmission. You need it if your network switch doesn't support PoE but you want to power PoE-enabled end devices, reducing cable clutter and simplifying installation.
Which devices are compatible with the Ubiquiti POE-15-12W?
The POE-15-12W is specifically designed for Ubiquiti devices that require a 15V DC power supply up to 12 watts. This includes certain models from the airMAX, UniFi AP, EdgeMAX, and airGateway series. It's always advisable to check the specifications of your specific Ubiquiti device to ensure compatibility.
Does the POE-15-12W offer protection features for my devices?
Yes, absolutely! The Ubiquiti POE-15-12W is equipped with several important protection features. These include surge protection, clamping protection, and effective ESD protection (Electrostatic Discharge). These features safeguard your connected devices from harmful voltage spikes and electrostatic discharges, increasing the reliability and lifespan of your hardware.
Can I use the POE-15-12W for Gigabit networks?
No, the Ubiquiti POE-15-12W features 10/100 Mbps Ethernet ports. It is therefore designed for Fast Ethernet (100 Mbps) networks and not for Gigabit Ethernet (1000 Mbps). If you require Gigabit speeds, you should choose a PoE Injector that explicitly supports Gigabit ports.
Is the installation of the PoE Injector complicated?
No, the installation of the Ubiquiti POE-15-12W is very simple and user-friendly. You simply connect your network device to the 'PoE Out' port of the injector via an Ethernet cable and your network switch or router to the 'Data IN' port. Then, plug the injector into a power outlet. Thanks to its plug-and-play design, it's quickly ready for use.
