Power over Ethernet meets first-class 4G connectivity

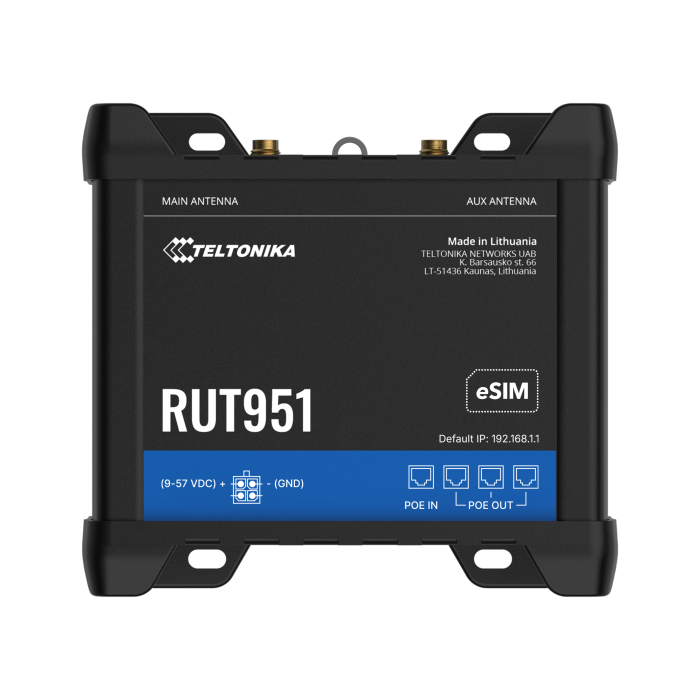

Imagine installing a surveillance camera in a location without a power outlet. No problem for the Teltonika RUT951 PoE+. This router is not only a gateway to the 4G Network but also a powerful Power Sourcing Equipment (PSE). Via three of its four Ethernet ports, it delivers up to 30 watts per port (a total of 90 watts) according to the 802.3af/at standard. This dramatically simplifies the installation of devices such as IP Cameras, access points, or VoIP phones. You only need a single Network cable for data and power. Conversely, the router can also be powered itself via its LAN1 port (PoE-In), giving you maximum flexibility during installation.
Maximum Reliability: Your 4G 4G Router Dual SIM Failover Shield
In business-critical applications, a connection failure is not an option. The RUT951, as a genuine Teltonika 4G / 5G Routers, is built precisely for this. With two SIM card slots and additional eSIM support, it creates impressive redundancy. Simply define rules for when the router should switch the connection: in case of a weak signal, reaching a data limit, roaming, or a complete Network outage. The switch happens automatically and ensures that your systems stay online, no matter what happens. This is the kind of reliability that makes a difference.
Built for Extremes: Robustness that convinces
The RUT951 feels most at home where other routers have long given up. Its robust aluminum housing (IP30 protection class) reliably protects the electronics from shocks and vibrations. The extended operating temperature range from icy -40 °C to hot 75 °C allows for use in control cabinets, production halls, vehicles, or weather-protected outdoor installations. Thanks to the wide input voltage range of 9-57 VDC, it also easily handles voltage fluctuations, such as those occurring in vehicle electrical systems. This router is a workhorse you can rely on.
Full Control with RutOS and Remote Management
The true strength of the RUT951 lies in its operating system. RutOS, based on the flexible OpenWrt, offers a wealth of configuration options. Set up complex firewall rules, segment your network with VLANs, or establish secure connections via a variety of VPN protocols – from OpenVPN to IPsec to the modern and fast WireGuard. For administrators managing multiple devices, compatibility with the Teltonika Remote Management System (RMS) is a crucial advantage. Monitor status, deploy firmware updates, and access all your routers remotely as if you were on-site.
Strengths & Notes at a Glance
- Pro: Outstanding redundancy through Dual-SIM, eSIM, and WAN failover.
- Pro: Flexible Power Supply via PoE-In and power distribution to 3 ports via PoE-Out with a 90W total budget.
- Pro: Extremely robust design with aluminum housing and extended temperature range (-40 °C to 75 °C).
- Pro: Powerful RutOS with professional features like Multi-VPN support, firewall, and VLAN.
- Pro: Fully remotely manageable via the Teltonika Remote Management System (RMS).
- Note: The Ethernet ports are limited to 10/100 Mbps (Fast Ethernet), which could be a bottleneck for high-speed LAN applications.
- Note: The WLAN module supports the Wi-Fi 4 (802.11n) standard, not the newer Wi-Fi 5 or 6 standards.
Specifications & Features
| Manufacturer: | Teltonika |
| Model: | RUT951 PoE+ |
| EAN: | 4779051843701 |
| Device Type: | Industrial 4G Router |
| Cellular Module: | 4G (4G) Category 4 |
| 4G Speed: | Up to 150 Mbps Downlink, 50 Mbps Uplink |
| SIM Slots: | 2 x Mini SIM (2FF), Dual-SIM with Auto-Failover |
| eSIM: | Yes, up to 7 profiles (GSMA SGP.22 Standard) |
| WLAN Standard: | IEEE 802.11b/g/n (Wi-Fi 4) |
| WLAN Frequency: | 2.4 GHz |
| Max. WLAN Clients: | Up to 100 |
| Ethernet Ports: | 4 x 10/100 Mbps RJ45 (1x WAN configurable as LAN, 3x LAN) |
| PoE In (PD): | Yes, on LAN1 (Active PoE 802.3af/at, 44-57 VDC) |
| PoE Out (PSE): | Yes, on LAN2, LAN3, WAN (Active PoE 802.3af/at) |
| PoE Budget (Total): | 90 W |
| Max. Power per PoE Port: | 30 W |
| CPU: | Mediatek, MIPS 24KEc, 580 MHz |
| RAM: | 128 MB, DDR2 |
| Flash Memory: | 16 MB, SPI Flash |
| Connectors: | 1x 4-Pin DC, 4x RJ45, 2x SMA (4G), 2x RP-SMA (WLAN), 1x Digital Input, 1x Digital Output |
| Housing: | Aluminum |
| Dimensions (W x H x D): | 110 x 50 x 100 mm (without Antennas) |
| Weight: | 287 g |
| Input Voltage: | 9 - 57 VDC (via 4-Pin connector) |
| Power Consumption: | < 7 W (without PoE), up to 97 W (with max. PoE load) |
| Operating Temperature: | -40 °C to 75 °C |
| Protection Class: | IP30 |
| Operating System: | RutOS (OpenWrt-based) |
Scope of Delivery
| 1 x Teltonika RUT951 PoE+ Router |
| 2 x 4G Antennas (swivel, SMA connector) |
| 2 x WLAN Antennas (swivel, RP-SMA connector) |
| 1 x Power Supply (voltage depending on order code) |
| 1 x Ethernet Cable (1.5 m) |
| 1 x SIM Adapter Kit |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Can the Teltonika RUT951 PoE+ directly power an IP camera?
Yes, absolutely. The router has three PoE+ outputs (802.3af/at standard), each capable of delivering up to 30 watts. As long as the camera is PoE-compatible and the total power consumption of all connected devices does not exceed 90 watts, no separate Power Supply is needed for the camera.
What does 'Dual-SIM-Failover' mean for the RUT951?
This means the router can accommodate two SIM cards from different providers. If the primary provider's connection fails, the router automatically switches to the second SIM card without manual intervention, ensuring an uninterrupted internet connection.
Do I need a special power supply to use the PoE-Out function?
Yes, to utilize the full PoE output power, the router must be supplied with a voltage between 48V and 57V. This can be done either via a suitable 4-pin power supply or via the PoE-In port (LAN1) from a PoE Injector or Switch.
Is the RUT951 suitable for use in vehicles?
Yes, due to its robust design, wide input voltage range (9-57V) which compensates for voltage fluctuations in the vehicle's electrical system, and extended operating temperature range, it is very well suited for use in vehicles, buses, or mobile offices.
Can I manage the router remotely?
Yes, the RUT951 is fully compatible with the Teltonika Remote Management System (RMS). This cloud platform enables remote access, status monitoring, firmware updates, and configuration management for individual devices or entire fleets.
Does the RUT951 support modern VPN technologies like WireGuard?
Yes, the RutOS operating system supports a wide range of VPN protocols, including OpenVPN, IPsec, GRE Tunnel, and also the modern and high-performance WireGuard.
