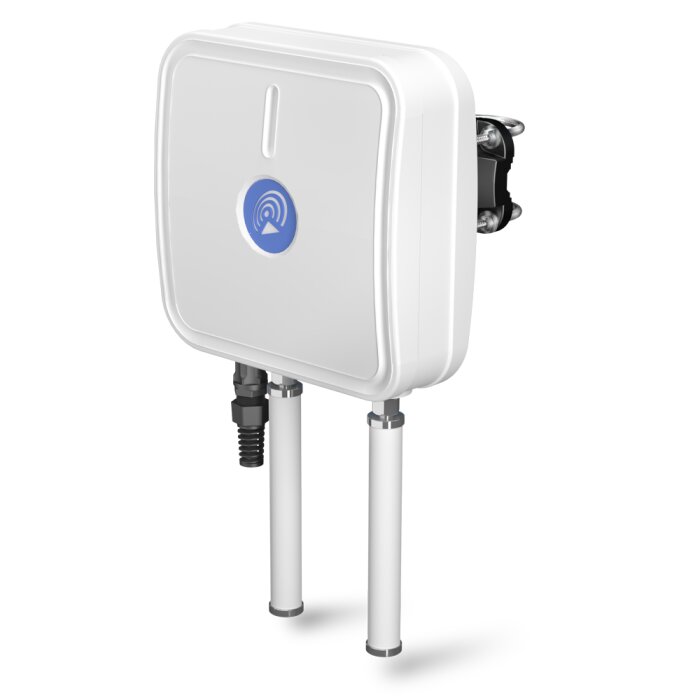

No More Slow Internet: Your Outdoor Signal Booster
You know the problem: You live or work in an area with weak mobile coverage, and a stable internet Network connection is pure luck. The QuMax A950M is the ultimate solution to elevate the signal quality of your Teltonika 4G / 5G Routers to a new level. This well-designed Antenna system was specifically developed for stationary Outdoor Antennas use – be it in rural areas, at industrial facilities, for CCTV (Other Cameras) surveillance, or for providing public WiFi Hotspots. Simply point the Antenna at the nearest cell tower and enjoy a significantly faster and more reliable connection.
The All-in-One Principle: Maximum Performance Without Losses

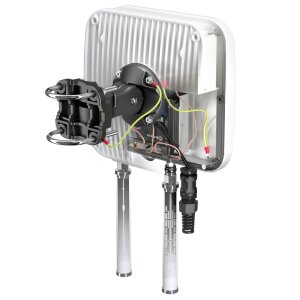

The decisive advantage of the A950M lies in its unique design. Instead of connecting an external Antenna to the Router via a long Antenna Cable, which inevitably leads to signal loss, the Router is mounted directly in the Antenna's Enclosure here. Every meter of Cable weakens the precious signal. The QuMax completely eliminates this weakness. The result is maximum signal amplification and performance that cannot be achieved with conventional setups. It is the perfect 4G directional antenna with housing for poor reception.
Built for Eternity: IP67 Protection and PoE Convenience
In outdoor use, the technology must withstand extreme conditions. With its IP67 protection class, the QuMax A950M is absolutely dustproof and even protected against temporary submersion. The Enclosure made of UV-resistant ABS and aluminum withstands heat, cold, rain, and snow. Another highlight is the support for passive PoE (Power over Ethernet). This means you power the Router via the same Ethernet Cable that also transmits data. This makes the weatherproof 4G Antenna with PoE Injectors / Power Supplies for industrial applications incredibly flexible in choosing the mounting location.
More Than Just 4G: Your Outdoor WiFi Hotspot
The QuMax A950M is more than just a pure receiving Antenna. It is a complete communication hub for outdoor areas. In addition to the powerful 4G directional antenna, two omnidirectional 2x2 MIMO WiFi Antennas with 6 dBi gain are integrated. This allows your Teltonika 4G / 5G Routers to simultaneously set up a strong WiFi Network in a 360° radius around the mounting location. Ideal for providing the garden, terrace, or company premises with stable WiFi for laptops, IP Cameras, or M2M / IoT Antennas - 4G, 5G, WiFi devices. A true all-in-one 4G and WiFi Antenna for rural areas and one of the best Antenna systems on the market.

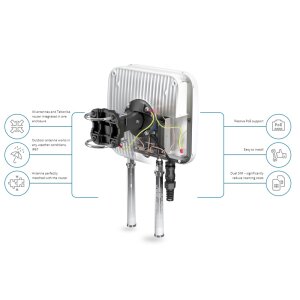

Strengths & Notes at a Glance
- Pro: The direct integration of the Router eliminates Cable losses and maximizes signal strength.
- Pro: Extremely robust and weatherproof IP67 Enclosure for year-round outdoor use.
- Pro: Simplified installation through Power Supply via Passive PoE Injectors / Power Supplies over a single Ethernet Cable.
- Pro: Additionally creates a powerful Outdoor WiFi Hotspot around the mounting location.
- Note: As a directional Antenna, it must be precisely aligned with a cell tower for optimal performance.
- Note: The compatible Teltonika 4G / 5G Routers (e.g., RUT951) is not included and must be purchased separately.
Specifications & Features
| Manufacturer: | QuMax |
| Model: | A950M |
| EAN: | 5907772035092 |
| HAN / MPN: | A950M |
| Product Type: | Integrated Outdoor Multiband Antenna System |
| Compatibility: | Teltonika RUT900, RUT901, RUT950, RUT951 |
| Application Area: | Stationary Outdoor Installations, long distances to cell tower |
| 4G Antenna Specification | |
| Antenna Type 4G: | Directional Antenna |
| Frequency Range & Gain 1: | 694 - 960 MHz: 4 dBi |
| Frequency Range & Gain 2: | 1700 - 2200 MHz: 5 dBi |
| Frequency Range & Gain 3: | 2200 - 2700 MHz: 6 dBi |
| Polarization 4G: | Vertical |
| Beamwidth 4G: | 90°/90° ±30° |
| Impedance 4G: | 50 Ω |
| VSWR 4G: | <1.30 (max. <1.80) |
| Front-to-Back Ratio: | >8 dB |
| WiFi Antenna Specification | |
| Antenna Type WiFi: | 2x2 MIMO Omnidirectional |
| Frequency Range WiFi: | 2400 - 2500 MHz (2.4 GHz) |
| Gain WiFi: | 6 dBi |
| Polarization WiFi: | Vertical |
| Beamwidth WiFi (Horizontal): | 360° |
| Beamwidth WiFi (Vertical): | 25° ±5° |
| Impedance WiFi: | 50 Ω |
| VSWR WiFi: | <1.70 (max. <2.00) |
| Mechanics & Environment | |
| Housing Material: | UV-resistant ABS, Aluminum, PTFE, Fiberglass |
| Protection Class: | IP67 |
| Connectors (internal): | RJ45 Jack |
| Connectors (external): | 2x Nf + 2x Nm (in external Omni WiFi Antenna) |
| Power Supply: | Passive Power over Ethernet (PoE) |
| Operating Temperature: | -40°C to +75°C |
| Dimensions (W x H x D): | 272 x 276 x 96 mm |
| Weight: | approx. 1.8 kg |
Scope of Delivery
| 1 x QuMax A950M All-in-One Antenna System (without Router) |
Frequently Asked Questions (FAQ)
What is the main advantage of the QuMax A950M compared to a router's standard antennas?
The main advantage lies in the combination of a powerful directional antenna for 4G reception and the direct integration of the router. This minimizes signal loss from long Antenna Cables and maximizes reception performance, leading to higher speeds and a more stable connection, especially at a great distance from the cell tower. This setup enhances your Network performance, especially for 4G / 5G Routers.
Is the installation of the QuMax A950M complicated?
Installation is simplified by the PoE feature, as only an Ethernet Cable needs to be run to the Enclosure. The biggest challenge is correctly aligning the directional antenna with the cell tower, which may require some patience and testing to find the optimal point. This uses PoE Injectors / Power Supplies for power.
Can I also improve my WiFi signal outdoors with this antenna?
Yes, the A950M includes integrated omni-directional 2x2 MIMO WiFi Antennas with 6 dBi gain. These are designed to create a stable WiFi network around the antenna's mounting location, ideal for gardens, company premises, or terraces. This acts like a WiFi Access Point and enhances your WiFi Routers capabilities.
Does the antenna work with every 4G Router?
No, the QuMax A950M is mechanically and connector-wise specifically designed for Teltonika Router models RUT900, RUT901, RUT950, and RUT951. The router is physically mounted inside the Enclosure. These are Teltonika 4G / 5G Routers.
What does protection class IP67 mean?
IP67 means that the Enclosure is completely protected against dust ingress and can withstand temporary immersion in water. It is therefore ideally protected against rain, snow, and dirt for outdoor use. This is crucial for robust Mounting Systems in outdoor environments.
Do I need a special Power Supply for the power?
Yes, you need a passive PoE Injector to power the router installed in the Enclosure via the Ethernet Cable. This is typically not included with the antenna. These are important PoE Injectors / Power Supplies.
