Description
The RF-240 coaxial cable is a high quality and super low loss coax cable which can be perfectly used for appliances up to 6GHz (GSM, 3G, 4G, WiFi frequencies).
It has a solid inner copper conductor and is double shlieded. The PE coating is UV resistand and weatherproof which allows to use the RF240 coax cable for outdoor installations.

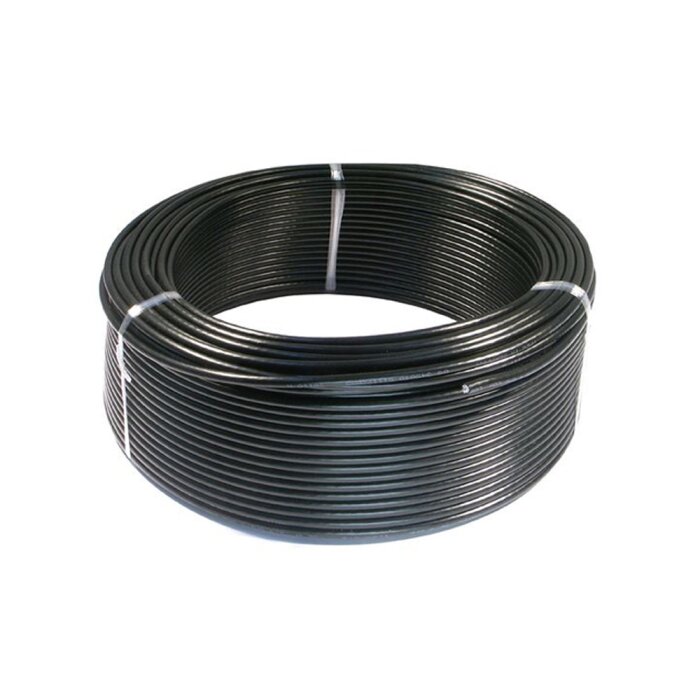

The cable is delivered on a 100m reel.
Technical Data:
| Cabletype: | RF-240 Coaxial Cable |
| Impedance: | 50 Ohm |
| Loss: | 0,24dB/m @ 900 MHz 0,35dB/m @ 1800 MHz 0,41db/m @ 2400 MHz 0,66db/m @ 5800 MHz |
| Capacity: | 82pf/m |
| Inner conductor: | 1.42mm Copper |
| Insulation: | 3.81mm PE |
| Coat: | PE |
| Outer diameter: | 6.1 mm |
| Bending radius: | 50mm |
| Color: | Black |
Scope of delivery
| 100m Ring RF-240 Coaxial Cable |
