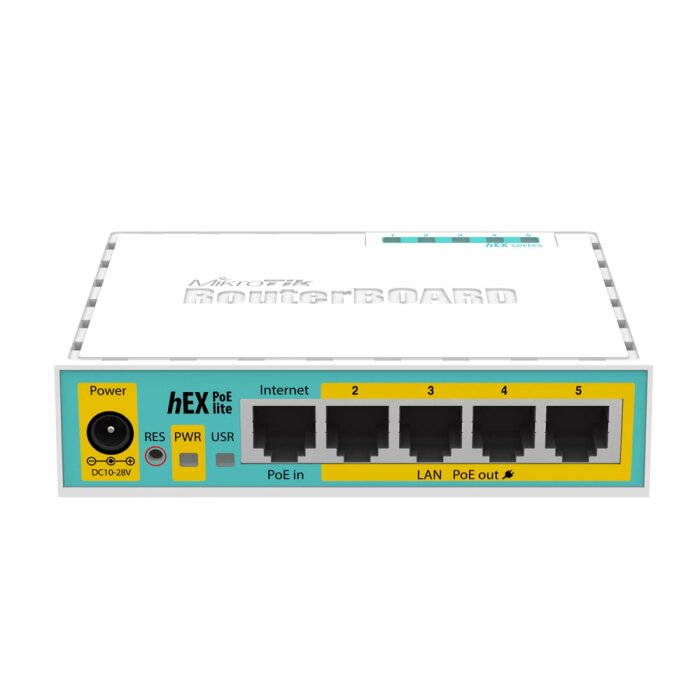

The Central Power Supply for Your Network: The hEX PoE lite
No more cable clutter and countless power supplies! The MikroTik hEX PoE lite (RB750UPr2) is the ingenious solution to tidy up and professionalize your Network. With four Power-over-Ethernet outputs, you can power compatible devices like IP Cameras, VoIP phones, or WiFi Access Points directly via the Ethernet Cable. This not only simplifies installation in hard-to-reach places but also makes your entire setup more reliable and organized. Simply connect the included 24V Power Supply, and up to 1A per port will be available on ports 2 to 5.
RouterOS: The Power of a Pro Router for You
The heart of this compact powerhouse is the legendary MikroTik RouterOS with a powerful Level 4 license. While other Routers restrict you with rigid menus, RouterOS gives you the freedom to design your Network down to the smallest detail. Create complex firewall rules, segment your Network with VLANs, prioritize important data traffic with Quality of Service (QoS), or set up secure VPN tunnels for remote access. Even if configuration requires some familiarization, you will be rewarded with stability and a range of functions typically found only in significantly more expensive devices. This MikroTik Router is your entry into the professional league.
Compact Powerhouse for Demanding Environments
Don't be fooled by its small size. The hEX PoE lite is designed for continuous operation. Its robust plastic housing and passive cooling ensure silent and reliable operation. The impressive, tested operating temperature range of -40°C to +70°C makes it the perfect choice for installations in non-air-conditioned environments such as attics, basements, or technical cabinets. Integrated sensors for monitoring voltage and board temperature give you full control over the system status at all times.
Versatile USB Connection and Smart Features
The integrated USB 2.0 port significantly extends the Router's functionality. Its most common application is connecting a 3G/4G modem to create a fail-safe backup internet connection – an invaluable advantage for any business or demanding home office. This makes the hEX PoE lite the basis for a full-fledged 4G / 5G Router. Alternatively, you can connect USB storage to share files on the Network. A clever detail is the software-controllable Power Supply of the USB port, which allows you to remotely restart a connected modem in case of problems.
Strengths & Notes at a Glance
- Pro: Integrated PoE power supply for up to 4 devices reduces Cabling effort.
- Pro: Extremely flexible and powerful RouterOS (Level 4 license) for maximum control.
- Pro: Very compact design and extremely wide operating temperature range (-40°C to 70°C).
- Pro: Unbeatable price-performance ratio for entry into professional Networks.
- Note: The 10/100 Mbit/s ports are a bottleneck for internet connections over 100 Mbit/s.
- Note: Configuring RouterOS requires familiarization time and basic Network knowledge.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | hEX PoE lite |
| Product Code: | RB750UPr2 |
| EAN: | 4752224000385 |
| CPU Model: | Qualcomm Atheros QCA9531 |
| CPU Architecture: | MIPSBE |
| CPU Cores: | 1 |
| CPU Clock Frequency: | 650 MHz |
| RAM: | 64 MB |
| Storage Size: | 16 MB |
| Storage Type: | FLASH |
| 10/100 Ethernet Ports: | 5 (shielded) |
| Switch Chip Model: | QCA9531 |
| PoE-In (Input): | Yes, on Port 1 (Ether1) |
| PoE-In Type: | Passive PoE |
| PoE-In Input Voltage: | 8-30 V DC |
| PoE-Out (Output): | Yes, on Ports 2-5 |
| PoE-Out Type: | Passive PoE (voltage matches input voltage) |
| Max. Current per PoE Port: | 1 A |
| Max. Total Current (Total Out): | 2 A |
| Number of DC Inputs: | 2 (DC jack, PoE-IN) |
| DC Jack Input Voltage: | 8-30 V DC |
| Max. Power Consumption (with PoE): | 51 W |
| Max. Power Consumption (without PoE): | 3 W |
| Included Power Supply: | 24V, 2.5A |
| Cooling: | Passive |
| USB Ports: | 1x USB 2.0 |
| USB Slot Type: | USB Type A |
| Max. USB Current: | 1 A |
| USB Power Reset: | Yes |
| Operating System: | MikroTik RouterOS |
| RouterOS License Level: | Level 4 |
| Dimensions: | 113 x 89 x 28 mm |
| Housing: | Plastic |
| Tested Ambient Temperature: | -40°C to 70°C |
| MTBF: | approx. 100,000 hours at 25°C |
| Certifications: | CE, EAC, ROHS |
| IP Protection Class: | IP20 |
| PCB Temperature Monitor: | Yes |
| Voltage Monitor: | Yes |
| Current Monitor: | Yes |
Scope of Delivery
| 1 x MikroTik hEX PoE lite (RB750UPr2) |
| 1 x Power Supply (24V, 2.5A) |
Frequently Asked Questions (FAQ)
Can the MikroTik hEX PoE lite power IP Cameras?
Yes, ports 2 to 5 can power passive PoE-enabled devices such as IP Cameras. The output voltage corresponds to the input voltage of the MikroTik Router, and up to 1 Ampere can be supplied per port, which is sufficient for most cameras.
Is this Router suitable for a Gigabit internet connection?
No, this Router is not suitable for internet connections over 100 Mbit/s. Since all Ethernet Ports are limited to 100 Mbit/s (Fast Ethernet), it cannot utilize the full speed of a Gigabit connection.
What can I do with the USB port?
The USB 2.0 Port is versatile. For example, you can use it for a 3G/4G modem as a backup internet connection or for connecting an external storage medium like a USB stick for Network storage purposes.
What does the RouterOS 'Level 4' license mean?
The Level 4 license is a professional license that unlocks advanced functions. These include operation as a Hotspot-Gateway for up to 200 users, up to 200 concurrent VPN tunnels (PPTP, L2TP, OVPN), and support for dynamic Routing protocols like OSPF and BGP, enhancing your Network capabilities with MikroTik Routers.
Is the Router difficult to configure?
For Network beginners, configuration can be a challenge as it is more complex than with standard home WiFi Routers. Setup is done via the web interface (WebFig) or the software (WinBox). However, there is a useful standard configuration for a quick start.
Does the Router use standard PoE (802.3af/at)?
No, the RB750UPr2 uses passive PoE. This means it applies the input voltage directly to the wire pairs. It is therefore important to ensure that the connected devices are compatible with the voltage of the Router's power supply (typically 24V), which is a key consideration for PoE Injectors / Power Supplies.
