Description

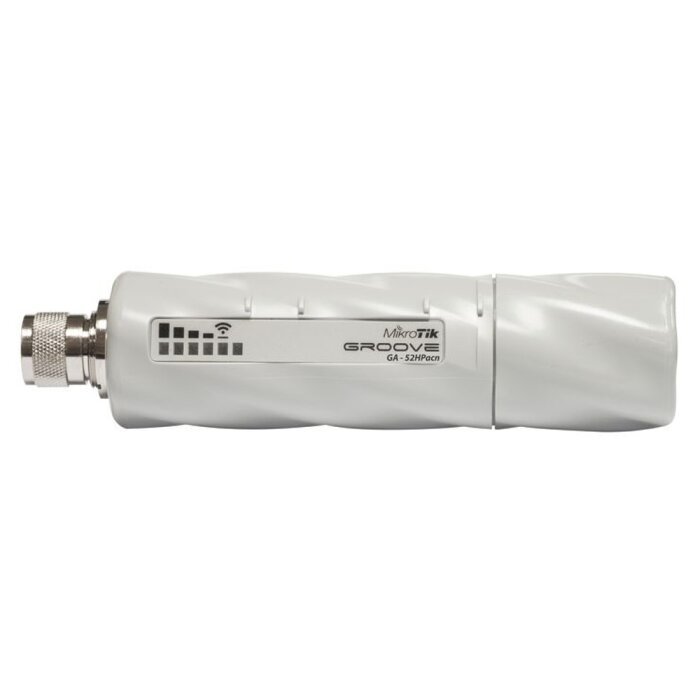

MikroTik GrooveA 52HPacn i a fully featured wireless RouterBOARD powered by RouterOS supporting AccessPoint and Station mode. Weatherproof, durable and ready to use. Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4 GHz or 5 GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilise the full benefit of 802.11ac high speed wireless.The Groove supports 2.4 GHz, 5 GHz and all the legacy wireless modes as well (802.11 b/g/n for2.4 GHz and 802.11 ac/n/a for 5 GHz).
A omnidirectional WiFi antenna with 6dBi / 8dBi gain is included. LED signal indicators makes it easy to install and align the Groove.
Technical Data:
| Manufacturer / Model: | Mikrotik / GrooveA-52HPacn |
| Prozessor: | QCA9556 |
| CPU nominal frequency: | 720 MHz |
| Size of RAM: | 64 MB |
| Storage: | 16 MB Flash |
| Operating frequency: |
5 GHz: International: 5150 - 5875 MHz USA: 5170 - 5250 MHz, 5725 - 5835 MHz 2.4 GHz: International: 2412 - 2484 MHz USA 2412 - 2462 MHz |
| WLAN Standards: | 802.11a/b/g/n/ac |
| Channel width: | 5GHz: 20/40/80 MHz 2.4GHz: 20/40 MHz |
| TX Power 2.4 GHz: | 1MBit/s: 24 11MBit/s: 21 6MBit/s: 24 54MBit/s: 21 MCS0: 24 MCS7: 20 |
| RX Power 2.4 GHz: | 1MBit/s: -97 11MBit/s: -91 6MBit/s: -93 54MBit/s: -77 MCS0: -93 MCS7: -72 |
| TX Power 5 GHz: | 6MBit/s: 26 54MBit/s: 21 MCS0: 26 MCS7: 21 MCS9: 19 |
| RX Power 5 GHz: | 6MBit/s: -93 54MBit/s: -78 MCS0: -93 MCS7: -74 MCS9: -69 |
| Netwerk Interface: | 1 x 10/100/1000 Gigabit Ethernet |
| Antenna: | 1 x N-Male connector |
| Supported input voltage: | 10 V - 30 V (passive PoE) |
| Power consumption: | 5W |
| Voltage monitor: | Yes |
| PCB temperature monitor: | Yes |
| RouterOS License: | Level 4 |
| Appliance: | In- and Outdoor |
| Dimensions: | 17.7 x 4.4 x 4.4 cm |
| Operation Temperature: | -40°C to +70°C |
Scope of delivery:
| 1 x Mikrotik RouterBoard GrooveGA 52HPacn |
| 1 x 6dBi / 8dBi omni antenna |
| 1 x PoE Injector + 24 V 0.38 A Power Supply (EU) |
| 1 x Plastic zip tie |
