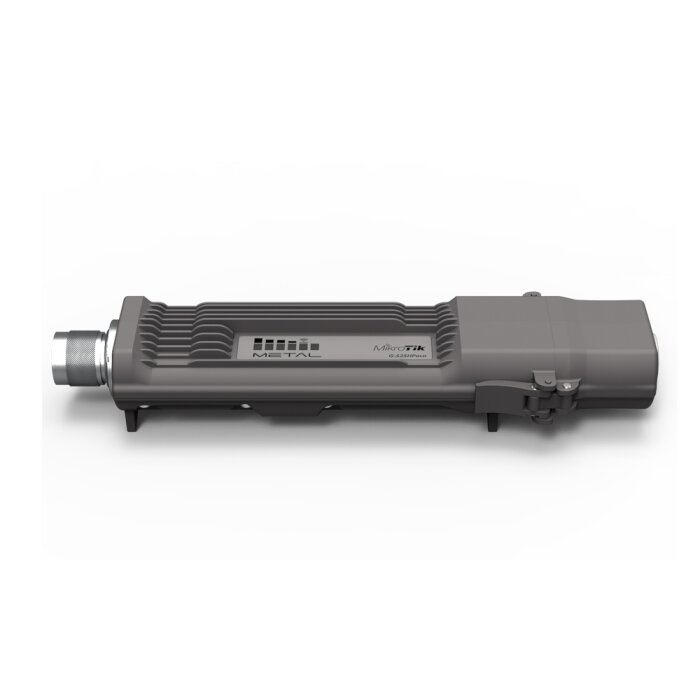

Your Network Defies All Weather: The MikroTik Metal 52 ac in Action
Imagine having a stable and fast internet connection everywhere in the outdoor area of your company, your campsite, or even on a construction site. The MikroTik Metal 52 ac makes it possible! This exceptional outdoor wireless device was specially developed to defy the elements. Its robust, weatherproof metal casing with IP55 protection rating reliably protects the sensitive electronics from dust, water, and extreme temperatures from -40°C to 70°C. This means for you: no more worries about outages in rain, snow, or scorching heat. Rely on consistently high performance and durability that you expect from a device with an industrial design. Whether you use it as an outdoor access point for your guests or as part of a temporary Network infrastructure – this MikroTik access point is your reliable partner.
Maximum Flexibility for Your Outdoor Network: Dual-Band Power and Gigabit Speed
The MikroTik Metal 52 ac is a true multi-talent when it comes to wireless connectivity. Thanks to its dual-band capability, it supports both the 2.4 GHz and 5 GHz frequency bands and the fast 802.11ac standard. This allows you to optimally adapt your high-performance Wi-Fi to the conditions – whether for far-reaching coverage in the 2.4 GHz band or for maximum speed and less interference in the 5 GHz band. With an impressive maximum wireless data rate of 433 Mbit/s and a Gigabit Ethernet port, you are well equipped for data-intensive applications. The included omnidirectional Antenna ensures excellent 360-degree coverage, ideal for use as a Wi-Fi access point, Wi-Fi CPE, or as a stable wireless bridge (point-to-point). For demanding users who want to expand their network infrastructure, this device is the perfect choice.
The Intelligence Behind It: RouterOS Level 4 and Easy Integration
At the heart of the MikroTik Metal 52 ac beats a powerful QCA9556 CPU with 720 MHz and 64 MB RAM, based on the robust MIPSBE architecture. But the real highlight is the pre-installed RouterOS Level 4. This operating system offers you an unparalleled range of functions and flexibility for your network management. From firewall rules to VPN to Quality of Service – you have full control. Installation is incredibly simple thanks to Passive PoE: you only need a single Ethernet Cable to power the device and transmit data. A suitable Gigabit PoE Injectors / Power Supplies is already included in the scope of delivery, so you can get started immediately. Create reliable and future-proof outdoor connectivity with this professional MikroTik device.
Application Examples That Will Convince You
The MikroTik Metal 52 ac is incredibly versatile. Imagine extending the Wi-Fi in outdoor areas for your hotel or restaurant, so your guests also have the best reception on the terrace or in the beer garden. Or you are an Internet Service Provider (ISP) and use it as a Wi-Fi CPE to deliver wireless 'last-mile' connectivity to your customers in rural areas. Its high transmit power and the ability to connect external Antennas enable reliable connections over longer distances. Even for temporary network infrastructures at events or on construction sites, it is ideal thanks to its robustness and easy mounting. It can serve as a Wi-Fi access point for end devices or as a backbone link to connect remote network segments. Your outdoor wireless device for every challenge!
Strengths & Notes at a Glance
- Pro: Robust, weatherproof metal casing (IP55): The device is fully sealed and designed for use under harsh outdoor conditions (temperature range from -40°C to 70°C), ensuring high reliability and durability.
- Pro: Versatile application possibilities (AP, CPE, Point-to-Point): Thanks to the RouterOS License Level 4 and the hardware equipment, the device can be flexibly configured as an access point, client (CPE), or for wireless point-to-point connections, making it extremely adaptable.
- Pro: Dual-band operation with 802.11ac and Gigabit Ethernet: The support of 2.4 GHz and 5 GHz as well as the fast 802.11ac standard in combination with a Gigabit Ethernet port enables high wireless throughputs and fast connection to the wired network.
- Note: Complexity of RouterOS: While the MikroTik RouterOS operating system offers an enormous range of functions and flexibility, it requires a high degree of technical knowledge and experience for configuration and management, which can be a challenge for inexperienced users.
- Note: Single-Chain Wireless: The device has a single chain for wireless operation, which limits the maximum theoretical data throughput to 433 Mbit/s and makes it less suitable for applications requiring extremely high bandwidths or Multi-User MIMO (MU-MIMO).
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | Metal 52 ac |
| Product Code: | RBMetalG-52SHPacn |
| Architecture: | MIPSBE |
| CPU: | QCA9556 |
| CPU Cores: | 1 |
| CPU Nominal Frequency: | 720 MHz |
| RAM: | 64 MB |
| Storage Size: | 16 MB |
| Storage Type: | FLASH |
| Operating System: | RouterOS |
| RouterOS License Level: | 4 |
| Dimensions (LxWxH): | 215 x 60 x 38 mm |
| Tested Ambient Temperature: | -40°C to 70°C |
| PoE Input: | Passive PoE |
| PoE Input Voltage: | 10-30 V |
| Number of DC Inputs: | 1 (PoE-IN) |
| Max. Power Consumption: | 11 W |
| Cooling Type: | Passive |
| Ethernet Ports: | 1x 10/100/1000 Mbit/s Gigabit Ethernet |
| Wi-Fi Standards (2.4 GHz): | 802.11b/g/n |
| Wi-Fi Standards (5 GHz): | 802.11a/n/ac |
| Wi-Fi Chip Model: | QCA9889 |
| Wi-Fi Generation: | Wi-Fi 5 |
| Max. Wireless Data Rate: | 433 Mbit/s |
| Number of Chains: | 1 (Single-Chain) |
| Antenna Gain (2.4 GHz): | 6 dBi (Omnidirectional) |
| Antenna Gain (5 GHz): | 8 dBi (Omnidirectional) |
| Max. Transmit Power: | 1300 mW (31 dBm) |
| IP Protection Rating: | IP55 |
| MTBF: | Approx. 200,000 hours at 25°C |
| Certifications: | CE, FCC, IC, EAC, ROHS |
| Additional Features: | PCB Temperature Monitoring, Voltage Monitoring |
Scope of Delivery
| 1 x MikroTik Metal 52 ac (RBMetalG-52SHPacn) |
| 1 x 24V 0.38A Power Supply |
| 1 x Gigabit PoE Injector |
| 1 x Metal Ring for Pole Mounting |
| 2 x Cable Ties |
Frequently Asked Questions (FAQ)
Is the MikroTik Metal 52 ac waterproof?
Yes, the MikroTik Metal 52 ac features a fully sealed, industrial metal casing and is weatherproof with an IP55 rating, so you can safely use it outdoors.
Which WLAN standards does the Metal 52 ac support?
The Metal 52 ac supports WLAN standards 802.11ac/n/a in the 5 GHz band and 802.11b/g/n in the 2.4 GHz band, offering you flexible connectivity.
Can I use the Metal 52 ac as an Access Point and as a CPE?
Yes, the Metal 52 ac is versatile and can be configured as both an Access Point (AP) and Customer Premises Equipment (CPE) or for point-to-point connections.

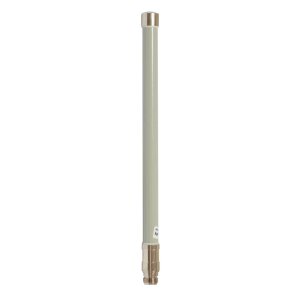

What are the antenna gains of the included antenna?
The included dual-band omnidirectional antenna offers a gain of 6 dBi for the 2.4 GHz band and 8 dBi for the 5 GHz band.
How is the MikroTik Metal 52 ac powered?
Your device is powered via Passive Power over Ethernet (PoE) with an input voltage of 10-30 V. A suitable PoE Injector is already included in the scope of delivery.
What is the maximum wireless data rate of the Metal 52 ac?
The maximum wireless data rate achieved by your Metal 52 ac is 433 Mbit/s.
