Forget WiFi Problems: Your Upgrade to Peak Performance
Is your current WiFi Network a constant source of frustration? Especially in modern offices, busy hotels, or even in your demanding smart home, slow connections and unreliable coverage are a real nuisance. The MikroTik cAP ax puts an end to these problems and catapults your Network into a new era of connectivity. Experience how this powerful WiFi Access Point delivers superior performance even in High-Density Environments and seamlessly connects all your devices.
Intelligent Power for Your Network: RouterOS v7 & PoE Flexibility
At the heart of the MikroTik cAP ax beats a powerful Quad-Core CPU with 1.8 GHz and 1 GB RAM, providing you with the necessary computing power for demanding network applications. With two Gigabit Ethernet ports, one of which supports PoE-Out, you can not only flexibly power the access point itself via PoE (802.3af/at PoE-In) but also directly connect and power other PoE-enabled devices such as IP Cameras or other WiFi Access Points. The pre-installed RouterOS v7 also opens up a world of configuration possibilities, from advanced firewall rules to VPN protocols like Wireguard and BGP support for dynamic routing. A real advantage if you need, for example, PoE Injectors / Power Supplies for other devices.
Central Control, Maximum Security: With CAPsMAN and WPA3
Managing your network has never been easier! Thanks to the CAPsMAN central management system, you can configure and monitor hundreds of MikroTik Access Points & Router like the cAP ax with just a few clicks. This saves you valuable time and nerves in network maintenance. But the cAP ax offers not only convenience but also maximum security. With modern authentication protocols like WPA3-PSK, WPA3-EAP, and OWE, as well as 802.11r Roaming, you optimally protect your wireless network from unauthorized access and ensure seamless mobility for your clients. Your data is secure, your connections stable.
Where the cAP ax Shines: Application Areas for the Highest Demands
The MikroTik cAP ax is a true multi-talent and adapts perfectly to various scenarios. In modern office environments and open-plan offices, the unobtrusive Ceiling Mount ensures optimal signal distribution and aesthetic integration, while CAPsMAN simplifies central management. For tech-savvy home users and smart homes, the cAP ax offers not only lightning-fast WiFi 6 (802.11ax) but also advanced security features and the ability to use complex RouterOS functions. Even in educational institutions and public areas with high device density, where many devices are connected simultaneously, WiFi 6 technology with OFDMA and MU-MIMO ensures efficient bandwidth utilization and stable connections. Wherever you need reliable WiFi Access Points, the cAP ax is the right choice.
Strengths & Notes at a Glance
- Pro: The MikroTik cAP ax delivers up to 40% higher speeds in the 5 GHz band and up to 90% in the 2.4 GHz band thanks to WiFi 6 (802.11ax), leading to improved stability and performance in environments with many interferences.
- Pro: Equipped with a powerful Quad-Core CPU and 1 GB RAM, the cAP ax offers comprehensive management and routing functions through RouterOS v7 and the CAPsMAN system, including IPsec Hardware Encryption.
- Pro: The flexible power supply via PoE-In (802.3af/at) and the additional PoE-Out function on the second Gigabit Ethernet port simplify installation and enable direct power supply for other devices.
- Note: While the powerful RouterOS v7 offers an exceptional depth of configuration options, it can present a steep learning curve for beginners without prior knowledge.
- Note: Some user reports indicate that the WiFi range is not always superior compared to some competitor products, and there have been challenges with DFS channels in the past, which have been improved by newer firmware versions.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | cAP ax (cAPGi-5HaxD2HaxD) |
| Architecture: | ARM 64bit |
| CPU: | IPQ-6010 Quad-Core |
| CPU Clock Frequency: | 1.8 GHz (nominal auto 864-1800 MHz) |
| CPU Core Count: | 4 |
| RAM: | 1 GB DDR3L |
| Storage: | 128 MB NAND |
| Operating System: | RouterOS v7 (License Level 4) |
| MTBF: | Approx. 200,000 hours at 25°C |
| Tested Ambient Temperature: | -40°C to 70°C |
| IPsec Hardware Acceleration: | Yes |
| WiFi Standard: | 802.11a/b/g/n/ac/ax (WiFi 6 / Generation 6) |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| Max. Data Rate 2.4 GHz: | 574 Mbit/s (Dual-Chain) |
| Antenna Gain 2.4 GHz: | 6 dBi |
| WiFi Chip 2.4 GHz: | QCN-5022 |
| Max. Data Rate 5 GHz: | 1200 Mbit/s (Dual-Chain) |
| Antenna Gain 5 GHz: | 5.5 dBi |
| WiFi Chip 5 GHz: | QCN-5052 |
| Total WiFi Speed: | AX1800 (1774 Mbit/s combined) |
| WiFi Features: | MU-MIMO (2x2), Beamforming, OFDMA, Target Wake Time (TWT), BSS Coloring |
| Security Standards: | WPA3-PSK, WPA3-EAP, OWE, 802.11r Roaming |

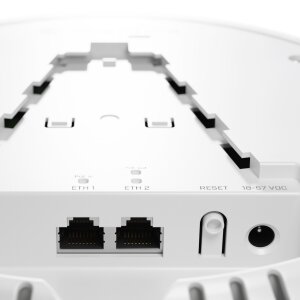

| Number of 1G Ethernet Ports: | 2 |
| PoE-IN Standard: | 802.3af/at (18-57 V) |
| PoE-Out Ports: | Ether2 (Port 2) |
| PoE-Out Type: | Passive PoE up to 57V |
| Max. Output Current PoE-Out (<30V): | 600 mA per port |
| Max. Output Current PoE-Out (>30V): | 400 mA per port |
| Max. Total Output Power PoE-Out: | 19.2 W |
| Max. Power Consumption (without Accessories): | 11 W |
| Max. Power Consumption (with Accessories): | 36 W |
Scope of Delivery
| 1 x MikroTik cAP ax (cAPGi-5HaxD2HaxD) |
| 1 x Power Adapter (48 V DC 0.95 A) |
| 1 x Ceiling Mount Kit |
| 1 x Screw Set |
Frequently Asked Questions (FAQ)
What is the MikroTik cAP ax and what is it used for?
The MikroTik cAP ax is a dual-band WLAN Access Point that supports the Wi-Fi 6 (802.11ax) standard. You use it for ceiling mounting in offices, hotels, shopping centers, and demanding home networks to ensure fast and stable wireless connectivity in high-density environments.
What advantages does Wi-Fi 6 offer with the MikroTik cAP ax?
Wi-Fi 6 (802.11ax) offers your cAP ax higher speeds (up to 1800 Mbit/s combined), improved efficiency in crowded environments through technologies like OFDMA and Target Wake Time (TWT), and a more stable connection. You benefit from better performance with many simultaneously connected devices.
Can the MikroTik cAP ax power other devices?
Yes, your MikroTik cAP ax features PoE-In (Power over Ethernet) and PoE-Out. The second Gigabit Ethernet port can power other PoE-enabled devices such as IP Cameras, network switches, or additional access points, simplifying your installation.
How is the MikroTik cAP ax managed?
Your cAP ax runs on MikroTik's RouterOS v7. You can configure it either as a standalone device or manage it centrally via CAPsMAN (Controlled Access Point System Manager). CAPsMAN allows you to easily set up and monitor hundreds of cAP ax devices in your network.
Is the MikroTik cAP ax suitable for beginners?
Due to the powerful but complex RouterOS operating system, your MikroTik cAP ax has a steep learning curve for beginners. It is more intended for you if you are tech-savvy or run a small business and want to utilize the advanced configuration options.
Which security standards does the MikroTik cAP ax support?
Your MikroTik cAP ax supports modern and enhanced authentication types such as WPA3-PSK, WPA3-EAP, and OWE (Opportunistic Wireless Encryption) to keep your wireless connections secure and protect your information. It also offers you 802.11r Roaming for seamless transitions.
