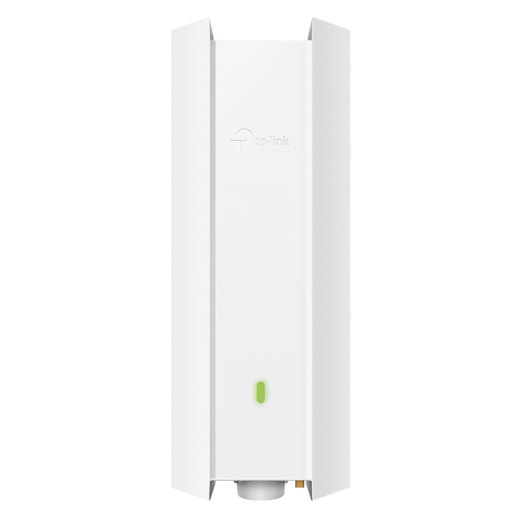

Stable WiFi Outdoors: Your Outdoor Access Point with Wi-Fi 6
No more WiFi dead zones in the garden or on company premises. The TP-Link EAP610-Outdoor is the professional solution for a powerful and reliable wireless Network outdoors. Thanks to state-of-the-art Wi-Fi 6 technology, you benefit from significantly higher speeds and better efficiency, especially when many devices are online simultaneously. Technologies like OFDMA and MU-MIMO ensure that data packets are intelligently distributed to multiple clients simultaneously. The result is a smooth online experience with WiFi 6 for long range, whether you're streaming 4K videos, operating IP Cameras, or just casually surfing the internet.
Built for Any Weather: IP67 Protection Against Dust and Water
The EAP610-Outdoor was specially developed for demanding environments. Its robust housing is IP67 certified, meaning it is not only protected against jet water (as with IP65) but even against temporary submersion and is absolutely dustproof. Whether heavy rain, snowstorm, or summer heat – this Access Point withstands it. An integrated 6 kV Lightning Protection ensures additional safety and longevity. This makes it the perfect choice for outdoor areas of hotels, for campus coverage, for the garden, for warehouses, or for any other location where reliability is paramount.
Central Control Made Easy with TP-Link Omada SDN
This Access Point is part of the intelligent TP-Link Omada ecosystem. This means you can either configure it as a standalone AP via an intuitive web interface or integrate it into a Software Defined Networking (SDN) platform. With an Omada Controller (as hardware or free software), you manage all your WiFi Access Points, Ethernet Switch, and WiFi Routers centrally via a single interface – even across locations via the cloud. Features like seamless roaming, a captive portal for guest WiFi, or the intelligent Mesh function for wireless expansion of your Network become child's play.
Flexible Installation Thanks to Power over Ethernet (PoE)
Where outdoors is there ever an outlet nearby? The EAP610-Outdoor elegantly solves this problem via Power over Ethernet (PoE). A single Ethernet Cable is sufficient to supply the device with both data and power. It supports the common 802.3at PoE+ standard, so it can be operated directly on a compatible Ethernet Switch. For maximum flexibility, a passive PoE Injectors / Power Supplies (injector) is also included. This allows you to mount the Access Point exactly where you achieve the best coverage, without having to worry about Power Supply. The appropriate Antenna Mounting Accessories for wall or pole are also included directly in the scope of delivery.
Strengths & Notes at a Glance
- Pro: Extremely robust and weatherproof IP67 housing that withstands even heavy rain and dust.
- Pro: State-of-the-art Wi-Fi 6 technology (OFDMA, MU-MIMO) for high efficiency with many clients.
- Pro: Seamless integration into the free Omada SDN platform for central management and scalability.
- Pro: Flexible Power Supply via standard PoE+ or included passive PoE adapter.
- Pro: Supports Omada Mesh for easy, wireless expansion of WiFi coverage.
- Note: The Gigabit Ethernet port can theoretically limit the combined WiFi speed of 1.8 Gbps.
- Note: The maximum range is highly dependent on the environment (obstacles, interference).
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | EAP610-Outdoor |
| EAN: | 6935364010232 |
| Device Type: | Dual-Band WiFi Access Point for Outdoor Use |
| WiFi Standard: | IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Max. Data Rate (Total): | 1775 Mbps (AX1800) |
| Data Rate 5 GHz: | Up to 1201 Mbps |
| Data Rate 2.4 GHz: | Up to 574 Mbps |
| Frequency Bands: | 2.4 GHz and 5 GHz |
| Processor (CPU): | Qualcomm Atheros IPQ6000 (Quad-Core ARM Cortex-A53, 1.2GHz) |
| RAM: | 256 MB DDR3L |
| Storage (NAND): | 128 MB |
| Antennas: | 2x internal, omnidirectional Dual-Band Antennas |
| Antenna Gain 2.4 GHz: | 2x 4 dBi |
| Antenna Gain 5 GHz: | 2x 5 dBi |
| Transmit Power (CE): | < 20 dBm (2.4 GHz), < 30 dBm (5 GHz) |
| WiFi Features: | MU-MIMO, OFDMA, 1024-QAM, Beamforming, Band Steering, Airtime Fairness, Omada Mesh, Seamless Roaming (802.11k/v) |
| WiFi Encryption: | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Network Security: | Captive Portal, MAC Filtering, Wireless Isolation, SSID-to-VLAN Mapping, Rogue AP Detection, 802.1X |
| Number of SSIDs: | Up to 16 (8 per band) |

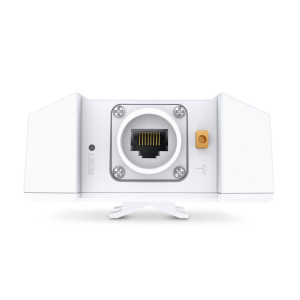

| Ports: | 1x Gigabit Ethernet (RJ-45) Port |
| Power Supply: | 802.3at PoE+ or 48V Passive PoE (Adapter incl.) |
| Max. Power Consumption (EU): | 12.5 Watt |
| Weather Protection Class: | IP67 (dustproof, protection against temporary submersion) |
| Lightning Protection: | 6 kV |
| Operating Temperature: | -30 °C to 70 °C |
| Dimensions: | 280.4 × 106.5 × 56.8 mm (housing only) |
| Mounting: | Pole or Wall Mounting (Kits included) |
| Management: | Standalone (WebUI/App) or central via TP-Link Omada SDN Controller |
Scope of Delivery
| 1 x TP-Link EAP610-Outdoor Access Point |
| 1 x Passive PoE Injectors / Power Supplies |
| 1 x Power Cable |
| 1 x Mounting Systems Kit (Wall/Pole) |
| 1 x Waterproof Kit for Cabling |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Can the TP-Link EAP610-Outdoor also be used indoors?
Yes, although it is designed for outdoor use, its discreet design also allows it to be used in demanding indoor environments such as warehouses, workshops, or large halls where robustness and long range are required.
Do I need a special controller to operate the Access Point?
No, the EAP610-Outdoor can be operated in 'standalone mode' and configured via a simple web interface or the Omada App. However, for advanced functions such as seamless roaming or central management of multiple APs, an Omada SDN Controller is required.
What does IP67 certification mean in practice?
IP67 means that the housing is completely dust-tight and protected against the effects of temporary immersion in water (up to 1 meter deep for 30 minutes). This makes it more robust than models with IP65, which are only protected against jet water.
Is the necessary mounting Accessories included?
Yes, both a wall mounting kit and clamps for pole mounting are included. A passive PoE Injector is also supplied, so no additional power supply is required at the installation location.
Does the Access Point support Mesh technology?
Yes, the Access Point supports Omada Mesh. This allows multiple EAPs to be connected wirelessly to flexibly extend WiFi coverage to hard-to-reach areas without laying additional network cables. This function requires the use of an Omada SDN Controller.
What is the difference between WPA2 and WPA3 on this device?
WPA3 is the newer and more secure encryption standard. It offers improved protection against brute-force attacks and ensures more robust encryption. The EAP610-Outdoor supports both standards to be compatible with both modern and older devices.
