End the Cable Clutter: Your Network, Redefined!
Anyone who has ever tried to integrate multiple IP cameras, Wi-Fi Access Points, or VoIP phones into their network knows the problem: Each device requires its own PoE injector and an additional power outlet. The result is a messy cable jungle and increased power consumption. This scenario is a thing of the past with the MikroTik RB260GSP.
The Smart Solution: PoE-Out Directly on the Gigabit Switch

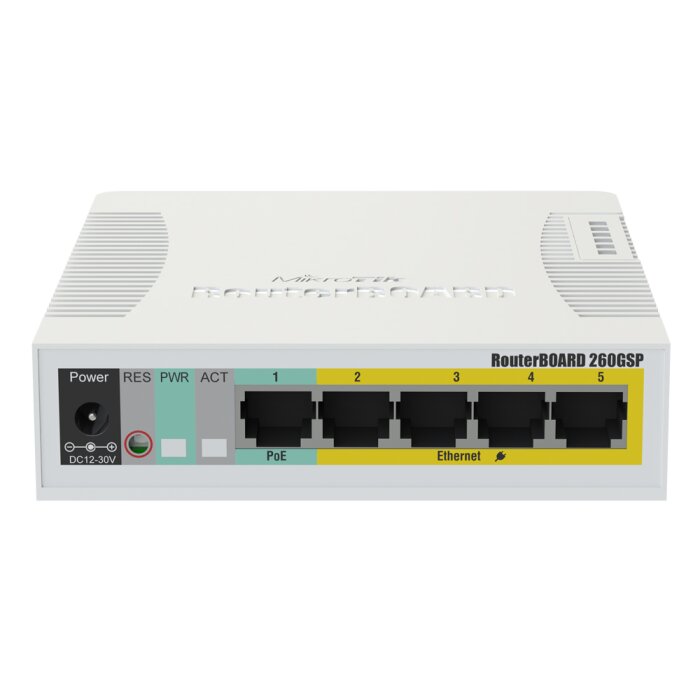

The MikroTik RB260GSP (CSS106-1G-4P-1S) revolutionizes your network installation. Thanks to the intelligent PoE-Out function on ports 2, 3, 4, and 5, you can connect your PoE-enabled end devices directly to the switch. Power is supplied passively via the network cable, with the voltage present at the switch (11-30 V DC) being passed directly to the devices. The included 24V / 2.5A power supply provides more than enough power to deliver up to 2 A total current for your devices.
Fiber Optic Speed and Intuitive Control for Your Network
In addition to the five versatile Gigabit Ethernet ports, the MikroTik RB260GSP offers an additional SFP slot for fiber optic connections. This allows you to connect the switch to your main router via fiber optics quickly and securely, which not only provides enormous bandwidth but also effectively protects your setup from overvoltage damage. Configuration is done via SwOS (Switch OS), specifically developed for MikroTik switches, which offers an intuitive web interface. Here you can easily and quickly set up functions such as VLAN management, port isolation, traffic mirroring, and bandwidth limitation.
Future-Proof Performance and Reliability for SOHO
The MikroTik RB260GSP is the ideal choice for Small Office/Home Office (SOHO) environments requiring a reliable and flexible network solution. With its robust construction, fanless design for silent operation, and a wide operating temperature range of -20°C to 70°C, it is equipped for demanding applications. Integrated monitoring functions for PCB temperature and voltage also ensure a long lifespan and stable performance for your network.
Technical Specifications
| Product Name: | MikroTik RB260GSP |
| Model Number (MPN): | CSS106-1G-4P-1S |
| EAN: | 4251028602714 |
| Switch Type: | Managed Smart Switch (Layer 2) |
| Ethernet Ports: | 5 x 10/100/1000 Mbps Gigabit RJ45 |
| PoE-Out Ports: | 4 (Ports 2-5), Passive PoE |
| Max. PoE-Out per Port: | 1 A (at 18-30 V input) |
| Max. Total PoE-Out: | 2 A |
| SFP Ports: | 1 x 1.25G SFP Cage (Mini-GBIC, DDMI Support) |
| Switch Chip Model: | Atheros QCA8337 |
| Operating System: | MikroTik SwOS |
| CPU: | Taifatech TF470 (RISC Architecture) |
| RAM: | 96 KB SRAM |
| Storage: | 128 KB FLASH |
| DC Input Voltage: | 11-30 V (DC Jack, PoE-IN) |
| Max. Power Consumption (without PoE): | 5 W |
| Max. Power Consumption (with PoE): | 53 W |
| Cooling: | Passive (fanless) |
| Dimensions (LxWxH): | 113 x 139 x 28 mm |
| Operating Temperature: | -20°C to 70°C |
| MTBF: | Approx. 100,000 hours at 25°C |
| Certifications: | CE, EAC, ROHS |
| IP Protection Class: | IP20 |
Package Contents
| 1 x MikroTik RB260GSP (CSS106-1G-4P-1S) Gigabit Switch |
| 1 x 24V 2.5A Power Supply |
| 1 x IEC Power Cable |
Häufig gestellte Fragen (FAQ)
What does PoE-Out mean on ports 2-5 of the MikroTik RB260GSP?
PoE-Out (Power over Ethernet Output) means that ports 2 to 5 of the MikroTik RB260GSP can supply not only data but also power to connected devices. This allows you to power PoE-enabled devices such as IP cameras or Wi-Fi Access Points directly via the network cable, without needing separate power supplies or PoE injectors. This is passive PoE, which passes through the voltage supplied to the switch.
Can I connect the MikroTik RB260GSP via fiber optic?
Yes, the MikroTik RB260GSP features an SFP port (Small Form-Factor Pluggable) with 1.25G speed. This allows you to connect the switch via a fiber optic cable to your main router or another network device. This not only provides a very fast and stable connection but also protects your network from electromagnetic interference and overvoltage, especially over longer cable runs.
What operating system runs on the MikroTik RB260GSP and how is it configured?
The MikroTik RB260GSP runs on SwOS (Switch OS), an operating system specifically developed for MikroTik switch products. Configuration is straightforward via an intuitive web interface in your browser. Simply enter the switch's IP address to access all important functions such as VLANs, port isolation, traffic mirroring, and bandwidth limitation.
Is the MikroTik RB260GSP suitable for use in harsh environments?
The MikroTik RB260GSP is designed for a wide operating temperature range of -20°C to 70°C and features passive cooling, making it robust and silent. With an MTBF (Mean Time Between Failures) of approximately 100,000 hours at 25°C and integrated temperature and voltage monitors, it is highly reliable and well-suited for demanding SOHO environments, even though it has an IP20 rating for indoor use.
What type of PoE does the MikroTik RB260GSP support and what voltage is output?
The MikroTik RB260GSP supports passive PoE-Out on ports 2 to 5. This means that the voltage you apply to the DC input of the switch (in the range of 11-30 V DC) is directly passed on to the connected PoE devices. The maximum current output is 1 A per port and 2 A total. It is important that your end devices support passive PoE with the corresponding voltage.
