Your WiFi Signal without Limits: Robust in Any Weather
No more weak signals outdoors. The Interline HORIZON LOGIS MINI was developed for the toughest conditions. Its housing is IP67 certified, making it completely dustproof and even protected against temporary submersion. Whether it's freezing cold at -40°C or scorching summer heat at +80°C – this Antenna consistently delivers performance. The UV-resistant ABS material ensures that it won't become brittle even after years in direct sunlight and reliably fulfills its function as a durable Outdoor Antenna.
Maximum Flexibility with Dual-Band and 360° All-Round Coverage
Why choose one frequency band when you can have both? The HORIZON LOGIS MINI is a true Dual-Band Antenna that transmits simultaneously on 2.4 GHz and 5 GHz. This allows you to benefit from the long range of the 2.4 GHz band and simultaneously from the high speed and lower interference in the 5 GHz band. In combination with its 360° omnidirectional characteristic, it is the perfect omnidirectional WiFi Antenna for a warehouse, a company premises, or a large garden. You install it centrally and provide coverage for the entire area without dead spots, making it an excellent choice among 2.4 GHz Omni-Directional Antennas and 5 GHz Omni-Directional Antennas.
Future-Proof Investment: Ready for WiFi 6 and Professional Applications
This antenna is more than just a piece of hardware – it's an investment in the future of your Network. With full support for the IEEE 802.11ax standard, it is the ideal WiFi 6 Outdoor Antenna with N-connector. It can unleash the full potential of modern WiFi Access Points and ensures higher data rates, greater efficiency, and a more stable connection for many end devices simultaneously. The professional N-connector underscores the quality standard and enables a low-loss connection to your transmitting and receiving device, often requiring high-quality Antenna Cables or Coaxial Connectors.
Strengths & Notes at a Glance
- Pro: Extreme robustness and weather resistance (IP67, -40°C to +80°C) for reliable continuous outdoor use.
- Pro: Flexible Dual-Band usage (2.4 & 5 GHz) for an optimal balance of range and speed, making it a versatile Dual-Band Antenna.
- Pro: True 360° all-round coverage, ideal for covering open areas without complex alignment.
- Pro: Future-proof due to full compatibility with the modern WiFi 6 (IEEE 802.11ax) standard.
- Note: As an omnidirectional antenna, it does not bundle the signal. For long-distance point-to-point connections, directional Antennas are more suitable.
- Note: The antenna gain is moderate and ideal for area coverage, but not for extreme range extension in highly interfered environments.
Specifications & Features
| Manufacturer: | Interline |
| Model: | HORIZON LOGIS MINI |
| HAN / MPN: | IH-G0405-F2460-V |
| EAN: | 5907758040645 |
| Product Type: | WiFi Omnidirectional Antenna |
| Antenna Type: | Omnidirectional |
| Frequency Band: | Dual-Band (simultaneous) |
| Frequency Range 2.4 GHz: | 2400 - 2500 MHz |
| Frequency Range 5 GHz: | 4800 - 6000 MHz |
| Antenna Gain @ 2.4 GHz: | 4 dBi |
| Antenna Gain @ 5 GHz: | 5 dBi |
| Supported WiFi Standards: | IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) |
| Impedance: | 50 Ohm |
| VSWR: | ≤ 1.70:1 |
| Maximum Input Power: | 2 Watt |
| Polarization: | Vertical |
| Cross-Polarization Discrimination (XPD): | >18 dB |
| Horizontal Beamwidth (-3dB): | 360° |
| Vertical Beamwidth (-3dB): | 35° |

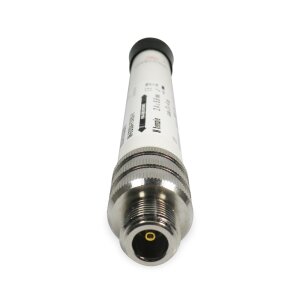

| Connector: | N-female |
| Housing Material: | UV-resistant ABS plastic |
| Protection Class: | IP67 (dustproof, protected against temporary submersion) |
| Application Area: | Indoor / Outdoor |
| Operating Temperature: | -40°C to +80°C |
| Wind Load Resistance: | up to 170 km/h |
| Dimensions (Length x Diameter): | 190 mm x 26 mm |
| Weight: | 0.25 kg |
| Mounting: | Mast or wall mounting |
| Suitable Mast Diameter: | 38 - 51 mm |
Scope of Delivery
| 1 x Interline HORIZON LOGIS MINI | WiFi Omnidirectional Antenna, Dual-Band, Weatherproof |
| 1 x Mounting material for mast/wall mounting (Antenna Mounting Accessories) |
Frequently Asked Questions (FAQ)
Is the Interline HORIZON LOGIS MINI suitable for outdoor use?
Yes, absolutely. It is certified with protection class IP67, making it dustproof and waterproof. The UV-resistant housing and high wind load tolerance guarantee a long outdoor lifespan for this WiFi Antenna.
Can I connect this antenna to my regular home WiFi Router?
That depends on the Router. The antenna has a professional N-female connector, while most home WiFi Routers use smaller RP-SMA connectors. You will therefore need a suitable adapter, a so-called Coaxial Pigtail cable, to connect the antenna to a standard Router.
What does 'Dual-Band' mean for this antenna?
Dual-Band means that the antenna can transmit and receive simultaneously on two frequency bands: the 2.4 GHz band and the 5 GHz band. This allows you to leverage the advantages of both bands – greater range (2.4 GHz Components) and higher speed (5 GHz Components).
Does this antenna improve my WiFi reception on my mobile phone?
Indirectly, yes. The antenna connects to a WiFi Access Point or Router and improves its transmission and reception performance. This makes the WiFi signal provided by that device stronger and more stable, which in turn leads to better reception on your mobile phone and other end devices within the coverage area.
What does the 360° beam angle mean in practice?
In practice, this means that the WiFi Antenna distributes the WiFi signal evenly in a circle around itself. It is ideal for providing complete WiFi coverage to a central area, such as a courtyard or a large hall, from a single point.
Is the antenna suitable for MIMO systems?
Yes, the antenna can be used in MIMO (Multiple Input, Multiple Output) configurations. For optimal performance, multiple Antennas must be mounted at a certain distance from each other to improve signal stability and quality.
