Maximum WiFi Performance for your Radio Link
Connect buildings, bridge properties, or provide a remote workshop with stable internet. The Cyberbajt LineEter 16 DUO was developed precisely for this. With its high Antenna gain of 16 dBi and the strongly bundled signal beam, you can build a reliable Point-to-Point connection that remains performant even over longer distances. Simply connect the Antenna to a compatible Router or WiFi Access Point and align it precisely with the remote station – the result is a stable and fast connection that simply filters out ambient interference.

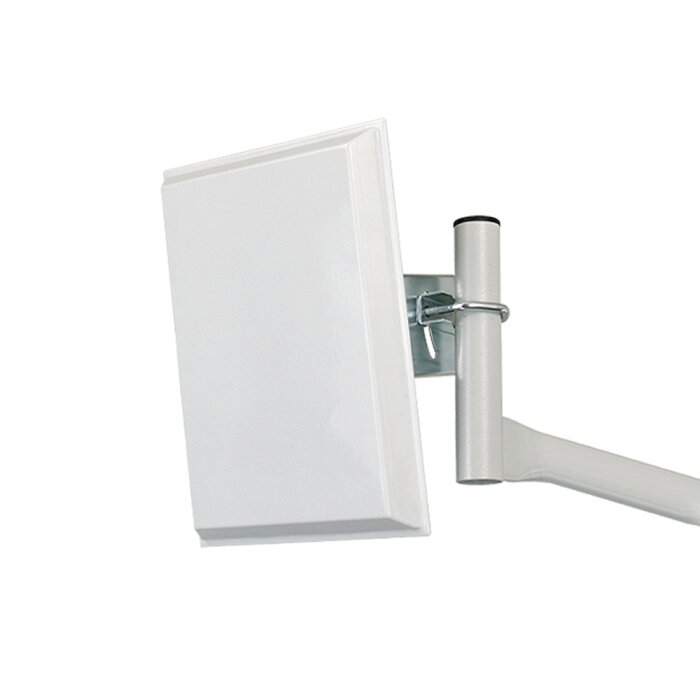

Built for Eternity: Weatherproof MIMO Panel Antenna
An outdoor antenna has to withstand a lot. That's why the LineEter 16 DUO's housing is made of high-quality, UV-resistant ABS plastic, which won't become brittle even after years in the sun. The internal reflector made of painted aluminum ensures optimal signal reflection and is protected against corrosion. The entire construction is absolutely weatherproof and can withstand wind speeds of up to 200 km/h. You can therefore rely on this WiFi Antenna to perform its duty reliably in all weather conditions, making it an ideal 2.4 GHz Antenna.
2x2 MIMO Technology for Stability and Speed
This antenna is more than just a simple signal amplifier – it is the foundation for modern WiFi Networks. As one of the most advanced directional Antennas in its class, it utilizes 2x2 MIMO (Multiple-Input Multiple-Output) technology. Two separate antenna elements with different polarization (horizontal and vertical) transmit and receive data streams simultaneously. The result in conjunction with a suitable end device: a significantly more stable connection, higher data throughputs, and better performance, especially in environments with many reflections. It is the perfect choice for all 2x2 MIMO systems according to the IEEE 802.11n standard.
Strengths & Notes at a Glance
- Pro: Optimized for 2x2 MIMO systems (802.11n) for higher data rates and stability.
- Pro: High 16 dBi gain and narrow beam for long ranges and excellent interference immunity.
- Pro: Extremely robust and weather-resistant construction for a long lifespan in outdoor use.
- Pro: Very good price-performance ratio compared to other professional MIMO Antennas.
- Note: The narrow 25° beamwidth requires very precise alignment with the remote station.
- Note: Works exclusively in the 2.4 GHz frequency band (2.4 GHz Components), not suitable for 5 GHz (5 GHz Components) or 6 GHz.
Specifications & Features
| Manufacturer: | Cyberbajt |
| Model: | LineEter 16 DUO |
| HAN / MPN: | LineEter 16 DUO |
| EAN: | 5907776046360 |
| Product Type: | Passive WiFi Directional Antenna (Accessory) |
| Technology: | 2x2 MIMO (Multiple-Input Multiple-Output) |
| Frequency Range: | 2.4 - 2.5 GHz |
| Supported WiFi Standards: | IEEE 802.11b/g/n |
| Antenna Gain: | 16 dBi (per element) |
| Polarization: | Dual-polarized (Horizontal & Vertical, linear) |
| Impedance: | 50 Ohm |
| VSWR (Voltage Standing Wave Ratio): | ≤ 1.4:1 |
| Beamwidth (horizontal): | 25° |
| Beamwidth (vertical): | 25° |
| Connectors: | 2 x N-female |
| Port Separation: | >30 dB |
| Internal Technology: | Microstrip Technology (Microwave PCB) |
| Housing Material: | UV-resistant ABS plastic |
| Reflector Material: | Painted Metal (Aluminum) |
| Weather Protection: | Yes, designed for outdoor use |
| Mounting Type: | Mast mounting |
| Compatible Mast Diameter: | 30 - 50 mm |
| Wind Load Resistance: | up to 56 m/s (approx. 200 km/h) |
| Dimensions (antenna only): | 250 x 340 x 30 mm |
| Weight (antenna only): | 692 g |
| Weight (antenna with bracket): | 1100 g |
| Weight (total package): | 1291 g |
| Dimensions (packaging): | 380 x 270 x 100 mm |
| Warranty: | 36 months |
Scope of Delivery
| 1 x Cyberbajt LineEter 16 DUO Antenna |
| 1 x Mounting material for mast mounting (30-50 mm) |
Frequently Asked Questions (FAQ)
Is the Cyberbajt LineEter 16 DUO a WiFi Repeater?
No, it is a passive antenna. It does not actively amplify a signal but only bundles it in a specific direction. To extend a WiFi signal, it must be connected to a Router, an Access Point, or a WiFi USB Adapter with two external antenna connectors.
Do I need two of these Antennas for a Wireless Bridge?
Yes, for a stable point-to-point connection (Wireless Bridge), one such or a comparable MIMO antenna is required at both locations, precisely aligned with each other.
Which cables do I need for connection?
You need two weatherproof, low-loss Coaxial Cables with an N-connector on one side (for the antenna) and the appropriate connector for your end device (e.g., RP-SMA) on the other side. The cable length should be kept as short as possible to minimize signal loss.
Can I improve my WiFi signal throughout the entire house with this antenna?
No, it is unsuitable for that. As a directional antenna, it sends the signal specifically in one direction, similar to the beam of a flashlight. For comprehensive coverage, Omni-Directional Antennas are needed.
What does 2x2 MIMO mean for this antenna?
2x2 MIMO means that the antenna has two separate internal antenna elements that can simultaneously send and receive two data streams. This increases the reliability and maximum data rate of the wireless connection, provided the connected device also supports 2x2 MIMO.
Is the Mounting System included?
Yes, the necessary brackets and clamps for mounting on a mast with a diameter of 30 to 50 mm are included in the scope of delivery.
