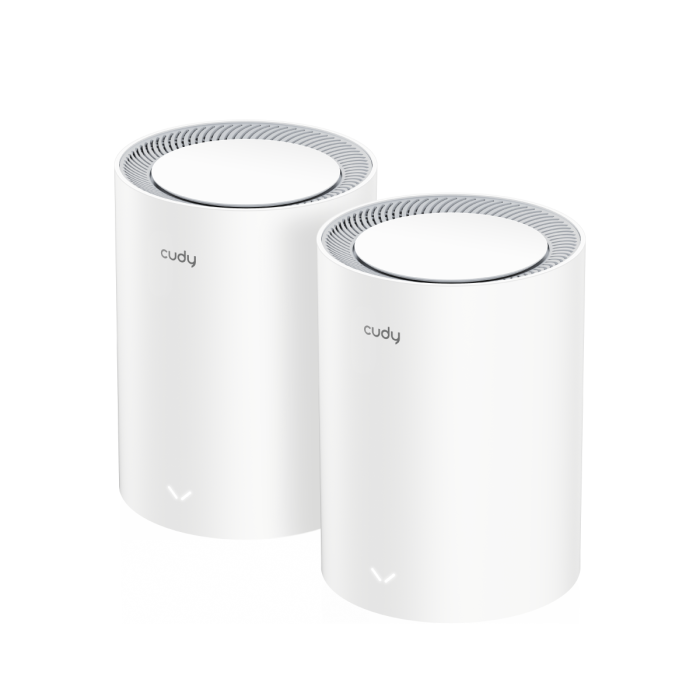

Your Home, Redefined: Wi-Fi 7 in Every Corner
Imagine your entire home as a single, giant high-speed zone. With the Cudy M3600 BE3600 Wi-Fi 7 Mesh System, this dream becomes a reality. This 2-pack brings revolutionary Wi-Fi 7 (802.11be) technology directly to you, with an impressive total speed of BE3600. For you, this means: coverage of up to 200 m², where you can move freely thanks to seamless roaming without ever losing connection. Whether you live in a large apartment or own a multi-story house – your WiFi is always there where you are. Features like MLO (Multi-Link Operation), OFDMA, and 4096-QAM ensure that your Network remains efficient and lightning-fast even with intensive use, such as 8K streaming or online gaming.
Security & Control: Your Network in Good Hands
In a world where data security is becoming increasingly important, the Cudy M3600 offers comprehensive protection. The integrated VPN Server & Client functionality supports a wide range of protocols such as OpenVPN, WireGuard, L2TP, PPTP, IPSec, and Zerotier. This allows you not only to securely access your home Network remotely but also to protect your online privacy. The intuitive Cudy App makes management a breeze: set up parental control in no time, prioritize devices with QoS, or create a separate guest network. With WPA3 encryption and the three Gigabit Ethernet Ports per unit, you also have the assurance that both your wireless and wired connections are optimally protected and powerful – ideal for your home office or small offices with high security requirements.
Power for Your Smart Home: Up to 200 Devices, Always Connected
Is your smart home growing and growing? No problem for the Cudy M3600! Equipped with a powerful 2.0 GHz Quad-Core processor and 512 MB RAM, this Mesh System is designed to manage up to 200 devices simultaneously. Whether smart lights, thermostats, surveillance cameras, or multiple 4K/8K streaming clients – every device receives a stable and fast connection. Technologies like MU-MIMO and OFDMA optimize data transmission, while the 160 MHz channel width provides the full bandwidth for your most demanding applications. Experience a smooth interplay of all your IoT devices and enjoy lag-free entertainment in every corner of your home.
Scalability that Grows with You: Your WiFi, Your Rules
The Cudy M3600 Mesh System is not only powerful but also incredibly flexible. Initial setup is done in minutes thanks to the guided Cudy App. And if your needs change or your home grows, your WiFi simply grows with it. Add more M3600 units as needed, and they seamlessly integrate into your existing Mesh System to further optimize coverage. This system is an investment in the future of your digital life, offering you the benefits of Wi-Fi 7 technology today and preparing you for the demands of tomorrow. Your WiFi router becomes the heart of your connected home.
Strengths & Notes at a Glance
- Pro: Future-proof Wi-Fi 7 Technology: Experience the latest WiFi generation (802.11be) with features like MLO, 4096-QAM, and OFDMA for higher speeds, lower latency, and improved efficiency, future-proofing your network.
- Pro: Comprehensive VPN Functionality: Benefit from a wide range of supported VPN protocols (OpenVPN, WireGuard, L2TP, PPTP, IPSec, Zerotier) both as a server and as a client, enabling flexible and secure connections for remote access and data protection.
- Pro: Good Coverage and Device Capacity: The 2-pack covers up to 200 m² and can connect up to 200 devices simultaneously, making it ideal for large households or offices with many networked devices.
- Note: No 6 GHz Band (Dual-Band): Although it is Wi-Fi 7, it is a dual-band system (2.4 GHz and 5 GHz) and not a tri-band system with the additional 6 GHz band. This means it cannot utilize the full bandwidth and lowest interference that Wi-Fi 7 with 6 GHz would offer, especially for backhaul in wireless mesh configurations.
- Note: Gigabit Ethernet Ports instead of Multi-Gigabit: The units feature 3 Gigabit Ethernet ports (1 WAN, 2 LAN). For users with internet connections over 1 Gbit/s or for a wired backhaul that aims to utilize the full BE3600 speed, multi-Gigabit ports (2.5G or 10G) might be desirable to avoid bottlenecks.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | M3600 BE3600 |
| Type: | Dual-Band Wi-Fi 7 Mesh System |
| Total WiFi Speed: | BE3600 (up to 3570 Mbps combined) |
| WiFi Standard: | Wi-Fi 7 (802.11be) |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| 5 GHz Wi-Fi Speed: | 2882 Mbps |
| 2.4 GHz Wi-Fi Speed: | 688 Mbps |
| 5 GHz Wi-Fi Streams: | 2T2R (2x2 MIMO) |
| 2.4 GHz Wi-Fi Streams: | 2T2R (2x2 MIMO) |
| Antennas: | 4x internal Antennas per unit |
| Antenna Gain 5 GHz (Max): | 5.5 dBi |
| Antenna Gain 2.4 GHz (Max): | 5.4 dBi |
| Modulation: | 4096-QAM |
| WiFi Efficiency: | MLO, Multi-RU, Puncturing, OFDMA, MU-MIMO, BSS Color |
| Max. WiFi Channel Width: | 160 MHz |
| CPU: | 2.0 GHz Quad-Core, ARM Cortex-A7 |
| Flash/ROM: | 128 MB (1 Gbit) NAND |
| DDR/RAM: | 512 MB (4 Gbit) DDR3L |
| Gigabit RJ45 Ports: | 3 per unit (1x WAN, 2x LAN) |
| Power Supply: | 12V⎓1A DC |
| Max. Power Consumption: | 9W |
| Dimensions (per unit): | Φ110 × 154.5 mm |
| Product Weight (per unit): | 357.6 g |
| VPN Protocols: | OpenVPN, WireGuard, L2TP, PPTP, IPSec, Zerotier |
Scope of Delivery
| 2 x Cudy M3600 BE3600 Wi-Fi 7 Mesh Unit |
| 2 x Power Adapter (12V⎓1A) |
| 1 x Ethernet Cable |
| 1 x Quick Installation Guide |
Frequently Asked Questions (FAQ)
What is the difference between Wi-Fi 6 and Wi-Fi 7 in the Cudy M3600?
Your Cudy M3600 uses Wi-Fi 7 (802.11be), which offers improvements over Wi-Fi 6 (802.11ax) such as Multi-Link Operation (MLO), 4096-QAM modulation, and enhanced OFDMA features. This results in higher theoretical speeds for you (up to 3570 Mbps combined), lower latency, and more efficient spectrum utilization, even if your M3600 does not use the 6 GHz band, which is often associated with Wi-Fi 7.
What is the range of the Cudy M3600 2-pack set?
Your Cudy M3600 2-pack set offers you coverage of up to 200 square meters (2100 sq ft) indoors. However, the actual range may vary depending on building structure, wall materials, and interference in your home.
Can I use a VPN with the Cudy M3600?
Yes, with your Cudy M3600, you can use both VPN server and VPN client functions. It is compatible with various VPN protocols such as OpenVPN, WireGuard, L2TP, PPTP, IPSec, and Zerotier, which allows you secure and flexible network usage.
How many devices can the Cudy M3600 connect simultaneously?
Your Cudy M3600 can connect up to 200 devices simultaneously without compromising performance. This is ideal for your household with many smart home devices, smartphones, tablets, and computers.
Does the Cudy M3600 have Gigabit Ethernet ports?
Yes, each unit of your Cudy M3600 is equipped with three Gigabit Ethernet RJ45 ports. One of them serves as a WAN port, the Others as LAN ports, which allows you flexible wired connections.
Is the Cudy M3600 easy to set up and manage?
Yes, you can easily set up and manage your Cudy M3600 via the Cudy App. The app provides you with clear instructions for initial setup and allows you to remotely manage your network, including features like guest network and parental controls.
