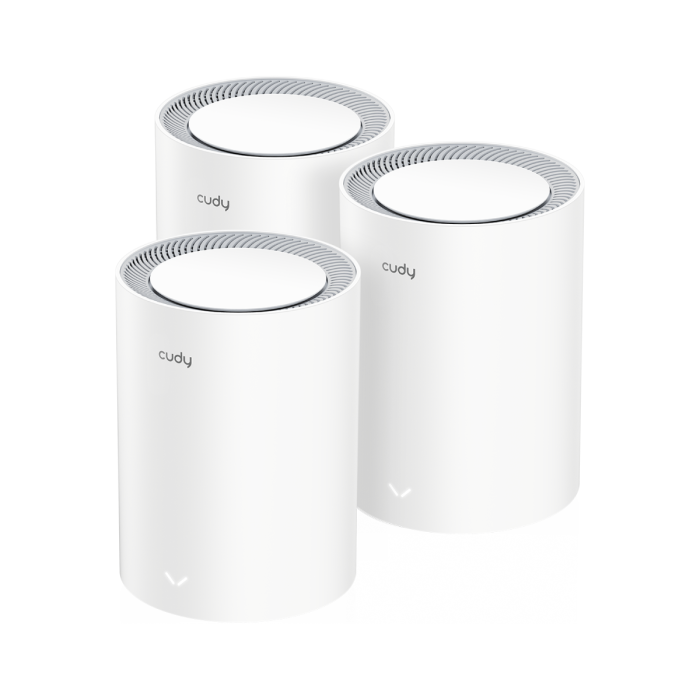

Your Entry into the Wi-Fi 7 World: The Cudy M3600 Mesh System
Get your home ready for the future. The Cudy M3600 Wi-Fi 7 Mesh Set is more than just a simple WiFi booster – it's a complete command center for your digital life. Thanks to the latest Wi-Fi 7 technology, you benefit from features like Multi-Link Operation (MLO), which intelligently allows your devices to transmit on both frequency bands simultaneously. The result: an extremely stable connection with minimal latency, perfect for demanding applications like 4K/8K streaming, online gaming, or video conferences without stuttering. This system is the ideal entry point to experience the benefits of the new standard.
Seamless WiFi in Every Corner of Your Home
With the three M3600 units, you build a single, intelligent Network that covers an area of up to 270 m². Whether you move from the living room to the study or to the terrace – seamless roaming ensures that your devices are always automatically connected to the strongest signal without losing connection. The three nodes work as a team to eliminate dead zones and ensure consistently high speed in every room. This system is the answer to the question of a reliable WiFi Routers for the whole family.
More Than Just Fast: Full Control with VPN and App
Security and control are paramount with the Cudy M3600. Unlike many other systems in this price range, it offers impressive VPN functionality. Set up secure access to your home Network from anywhere or route all your traffic through an external VPN Service – all directly via the WiFi Routers settings. The intuitive Cudy App for iOS and Android makes management a breeze. Set up a guest Network, create profiles for parental control, or prioritize specific devices – you have full control over your Network.
Plug & Play: Your New Network in Minutes
You don't have to be a tech professional to install the Cudy M3600. The three units in this set are already factory-paired. You just need to connect one node to your modem and place the other two in strategic locations in your home and power them. The Cudy App then guides you step-by-step through the easy setup. If you want maximum performance, you can also connect the nodes via LAN cable (wired backhaul) to fully free up the WiFi bands for your end devices.
Strengths & Notes at a Glance
- Pro: Future-proof Wi-Fi 7 standard with MLO & 4K-QAM for higher efficiency and speed.
- Pro: Very extensive VPN functions (Server & Client) including modern WireGuard protocol.
- Pro: Extremely easy plug-and-play setup thanks to pre-paired units and intuitive app.
- Pro: Attractive price-performance ratio for entering Wi-Fi 7 Mesh technology.
- Note: As a dual-band system, the 6 GHz frequency band is missing, which means the full potential of Wi-Fi 7 is not utilized.
- Note: According to reports, performance fluctuations may occur with very high utilization of wired ports.
Specifications & Features
| Manufacturer: | Cudy |
| Model: | M3600 (3-Pack) |
| EAN: | 6971690793661 |
| Product Type: | Wi-Fi 7 Mesh System |
| Chipset: | Broadcom BCM6764 |
| CPU: | 2.0 GHz Quad-Core ARM Cortex-A7 |
| RAM: | 512 MB DDR3L |
| Flash Memory (ROM): | 128 MB NAND |
| Antennas per Unit: | 4x fixed (2x external 5 GHz, 2x internal 2.4 GHz) |
| WiFi Standards: | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Frequency Bands: | Dual-Band (2.4 GHz, 5 GHz) |
| Max Data Rate (Aggregated): | 3.6 Gbit/s (BE3600) |
| Data Rate 5 GHz: | Up to 2882 Mbps |
| Data Rate 2.4 GHz: | Up to 688 Mbps |
| Channel Width: | Up to 160 MHz |
| WiFi Technologies: | Multi-Link Operation (MLO), 4K-QAM, 2x2 MU-MIMO, OFDMA, Beamforming, BSS Color |
| WiFi Encryption: | WPA, WPA2, WPA3 |
| Coverage (3-pack): | Up to 270 m² |
| Ethernet Ports (per Unit): | 1x Gigabit WAN Port, 2x Gigabit LAN Ports |
| Operating Modes: | WiFi Routers, WiFi Access Points, Repeater, WISP, Client |
| VPN Support: | WireGuard, OpenVPN, IPSec, Zerotier, L2TP, PPTP (Client & Server) |
| Network Functions: | IPv4/IPv6, QoS, Parental Control, Guest Network, IPTV/VLAN |
| Management: | Cudy App (iOS/Android), Web Interface, Cloud Management, TR069 |
| Power Supply: | 12V / 1A DC (Power adapter included) |
| Max Power Consumption: | 9 W |
| Dimensions (per Unit): | Φ110 × 154.5 mm |
| Color: | White |
| Certificates: | FCC, CE |
Scope of Delivery
| 3 x Cudy M3600 Wi-Fi 7 Mesh Unit |
| 3 x 12V / 1A Power Adapter |
| 1 x RJ45 Ethernet Cables |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Is the Cudy M3600 a true Wi-Fi 7 system?
Yes, it supports core Wi-Fi 7 technologies like MLO and 4K-QAM. However, it is a dual-band system and does not utilize the 6 GHz band, which is a key feature of Wi-Fi 7. Thus, it offers many advantages of the new standard, but not the full frequency spectrum.
Can I also connect the units via LAN cable?
Yes, the system supports a wired backhaul. You can connect the mesh nodes with each other via the Gigabit Ethernet ports. This is recommended to free up full bandwidth for your end devices and maximize stability.
How many devices can I connect with the Cudy M3600 (3-pack)?
The manufacturer states that the system is designed for up to 200 simultaneously connected devices, which is more than sufficient for most modern smart homes and small offices.
Do I need technical knowledge for setup?
No, the setup is designed to be very user-friendly. The units in the set are pre-configured, and the initial setup is done via an intuitive web interface or the Cudy smartphone app.
Does the system support a guest WiFi function?
Yes, you can set up a separate guest network. This allows visitors to access the internet without gaining access to your private network and the devices within it.
Is the system compatible with older WiFi devices?
Yes, the Cudy M3600 is fully backward compatible with all older WiFi standards such as Wi-Fi 6, 5, and 4. Older devices can connect without issues, but will not utilize the new Wi-Fi 7 features.
