Your WiFi Problem – Finally Solved!

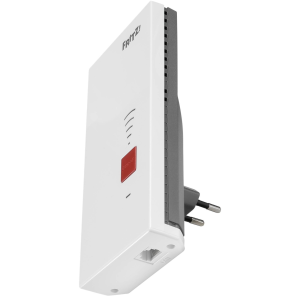

No more dead zones in tricky corners or on different floors! The AVM FRITZ!Repeater 2400 is your ideal partner to specifically boost your WiFi signal and seamlessly extend the range of your home Network. Strategically place this compact power outlet repeater midway between your router and the devices that previously suffered from poor reception. This way, you'll enjoy a stable and fast connection everywhere in the house, from the basement to the attic, for all your streaming, gaming, and home office applications.
Bringing Wired Devices into the Wireless Network? No Problem!
Your smart TV in the living room, the game console in the children's room, or your desktop PC in the study don't have their own WiFi function? No need for long, unsightly Network cables running through the house! The FRITZ!Repeater 2400 acts as a clever WiFi Bridge thanks to its integrated Gigabit LAN port. Simply connect your wired device via network cable to the WiFi Repeater, and it's wirelessly integrated into your home network. An elegant solution that offers you maximum flexibility.
Mesh Power for an Intelligent WiFi Experience
If you already own an AVM FRITZ!Box (from FRITZ!OS 6.90), the FRITZ!Repeater 2400 becomes the heart of your intelligent WiFi Mesh network. All WiFi nodes – your router and the WiFi booster – merge into a single, powerful network. Your devices are automatically registered at the access point with the best connection (WiFi Mesh Steering), ensuring optimal performance and seamless roaming. Thanks to Dual-Band WiFi, MU-MIMO, and Beamforming, you benefit from maximum efficiency and speed, even with many devices active simultaneously.
Lightning-Fast Setup and Secure Connection
The installation of the AVM FRITZ!Repeater 2400 is incredibly simple and requires no technical knowledge. Thanks to WPS setup, a push of a button on your router and on the power outlet repeater is enough to establish the connection. The repeater automatically adopts all necessary WiFi settings. And to protect your data, the repeater supports modern WPA2/WPA3 encryption, ensuring your home network is always secure from unauthorized access.
Strengths & Notes at a Glance
- Pro: High WiFi speed and range: Offers Dual-Band WiFi AC+N with up to 1733 MBit/s (5 GHz) and 600 MBit/s (2.4 GHz) for a total data rate of up to 2333 MBit/s, ideal for 4K streaming and gaming.
- Pro: Seamless Mesh integration and easy setup: Quickly integrated into existing WiFi networks at the touch of a button (WPS), especially efficient in the FRITZ!Box Mesh system.
- Pro: Versatile connectivity and functions: Features a Gigabit LAN port for wired devices or as a LAN bridge and supports MU-MIMO, Beamforming, and Crossband Repeating.
- Note: Only one Gigabit LAN port: For users who want to connect multiple wired devices at an extended location, the single LAN port may not be sufficient and requires the use of an additional Ethernet Switch.
- Note: No Wi-Fi 6 (WiFi AX): Although the repeater achieves high speeds in the Wi-Fi 5 (WiFi AC) standard, it does not support the newer Wi-Fi 6 standard.
Specifications & Features
| Manufacturer: | AVM |
| Model: | FRITZ!Repeater 2400 |
| Device Type: | Wi-Fi Range Extender / WiFi Repeater |
| WiFi Standards: | IEEE 802.11ac (Wi-Fi 5), IEEE 802.11n (Wi-Fi 4), IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Frequency Bands: | Dual-Band (2.4 GHz and 5 GHz) |
| Maximum Data Rate (Total): | Up to 2333 MBit/s |
| Maximum Data Rate (5 GHz): | Up to 1733 MBit/s (4x4 MU-MIMO, 80 MHz channel width) |
| Maximum Data Rate (2.4 GHz): | Up to 600 MBit/s (4x4 MU-MIMO, 40 MHz channel width) |
| Antennas: | Integrated Antennas (4x4 configuration on both bands) |
| LAN Port: | 1x Gigabit Ethernet (10/100/1000 MBit/s) |
| WiFi Mesh: | Yes, compatible with FRITZ!Boxes from FRITZ!OS 6.90 |
| Encryption: | WPA2 (802.11i), additionally WPA3 Transition Mode (in LAN bridge mode) |
| WPS (Wi-Fi Protected Setup): | Yes, for easy and secure setup at the touch of a button |
| Operating Modes: | WiFi Repeater, LAN Bridge (Access Point) |
| Special WiFi Features: | Dynamic Crossband Repeating, WiFi Mesh Steering, MU-MIMO, Beamforming (TxBF), Qualcomm's Wi-Fi SON |
| Display: | Status LEDs for connection quality and operating status |
| User Interface: | Browser-based (http://fritz.repeater) |
| Firmware Updates: | Regular free updates with new functions and improved security |
| Power Supply: | Internal power supply, connection to mains via 230 V, 50 Hz |
| Power Consumption (Average): | approx. 4 Watts |
| Power Consumption (Maximum): | approx. 8.5 Watts |
| Dimensions (W x H x D): | approx. 76.5 x 155 x 62.6 mm |
| Weight: | approx. 160 g |
| Housing Material: | Plastic, white |
| Warranty: | 5 years manufacturer's warranty on hardware |
| Internet Protocol: | Supports IPv6 |
Scope of Delivery
| 1 x AVM FRITZ!Repeater 2400 |
| 1 x Schuko Adapter |
| 1 x Network Cable (1.5 m) |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
How do I set up the AVM FRITZ!Repeater 2400?
Setup is usually very simple via WPS (Wi-Fi Protected Setup) at the push of a button. Plug the repeater into a power outlet near your router, wait until the status LED slowly flashes, then briefly press the Connect button on the repeater and then, within two minutes, the WPS button on your router. Once the LEDs glow solid green, the connection is established.
Is the FRITZ!Repeater 2400 compatible with every Wi-Fi router?
Yes, the FRITZ!Repeater 2400 is compatible with all common Wi-Fi routers that support the 802.11ac/n/g/b/a radio standards. You can also use it with routers from other manufacturers in 'Universal Repeater Mode'.
What is Wi-Fi Mesh and how does it work with the FRITZ!Repeater 2400?
Wi-Fi Mesh combines several Wi-Fi access points (e.g., FRITZ!Box and FRITZ!Repeater) into a single intelligent Wi-Fi network. The FRITZ!Repeater 2400 becomes part of this network, automatically adopts the Wi-Fi settings of your FRITZ!Box, and ensures that your Wi-Fi devices are always connected to the access point with the best connection (Mesh Steering).
Can I also connect the FRITZ!Repeater 2400 to my router via an Ethernet cable?
Yes, you can alternatively connect the FRITZ!Repeater 2400 to your router via an existing Ethernet cable in 'LAN Bridge' mode. This is useful if a cable is already in place or if the repeater is to be used in a location where a stable Wi-Fi connection to your router is not possible. In this mode, it can also function as an Access Point.
What speeds does the FRITZ!Repeater 2400 achieve?
The repeater theoretically achieves a maximum total data rate of up to 2333 MBit/s. This is composed of up to 1733 MBit/s in the 5-GHz band (Wi-Fi AC) and up to 600 MBit/s in the 2.4-GHz band (Wi-Fi N). Actual values in practice may vary depending on the environment and interference sources.
Does the FRITZ!Repeater 2400 have parental controls or guest access?
The FRITZ!Repeater 2400 itself does not offer direct parental control or guest access functionality. However, in Mesh operation with a FRITZ!Box, it adopts the settings of your router, so that the functions configured there, such as parental control and guest access, are also effective via the repeater.
