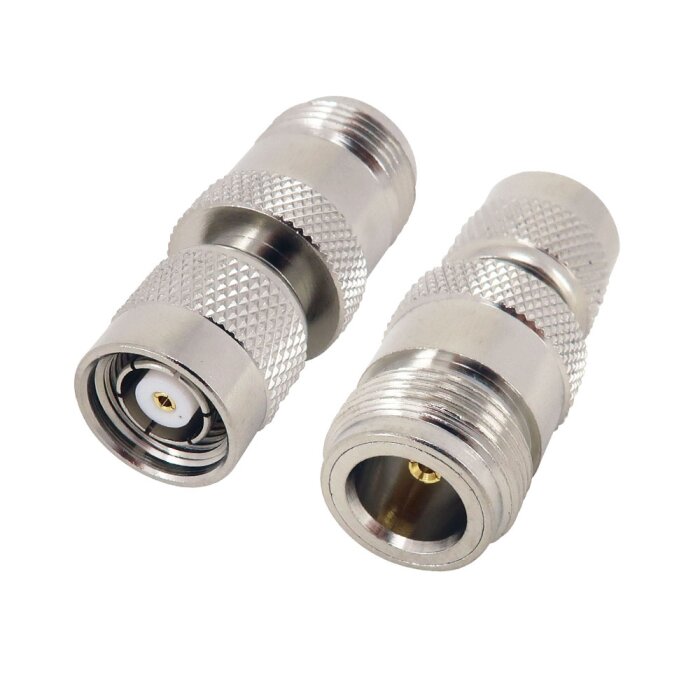

The Perfect Bridge: From RP-TNC to Professional N-Standard
You know the problem: your high-quality access point, perhaps an older Cisco model, has an RP-TNC connector, but your new, powerful outdoor Antenna uses the robust N-standard. This is exactly where our adapter comes in. It creates a seamless, mechanically and electrically perfect connection, future-proofing your setup.
Built to Last: Robust, Weatherproof, and Vibration-Resistant
Forget about wobbly connections. Thanks to the threads on both connectors, this adapter sits rock-solid. Even with strong vibrations in industrial environments or on an Antenna mast in the wind, the connection remains stable. The nickel-plated brass housing and the N-connector, designed for outdoor use, make this adapter for high-performance Antennas with an N-connector the first choice for demanding projects. It's a key part of any robust Network.
No Compromises on Signal Quality
Every inch counts when it comes to your signal. That's why we've focused on the highest quality for this adapter. The gold-plated inner contacts ensure maximum conductivity, while the high-quality PTFE dielectric (Teflon) minimizes signal loss. With an extremely low insertion loss of under 0.15 dB, your signal arrives clean and strong at its destination. A low-loss rp-tnc male to n-female 50 ohm adapter you can rely on.
Your Problem-Solver for WiFi, Industry, and Measurement Technology
Whether you want to connect a Cisco WiFi Antenna to an outdoor antenna, build a stable setup for industrial communication, or perform precise measurements in the lab – this adapter is your reliable partner. Its high durability and excellent electrical values make it a universal tool for any RF technician, perfect for use with various WiFi Antennas and other equipment.
Strengths & Notes at a Glance
- Pro: The screw connections on both ends (TNC and N) guarantee extremely high vibration resistance, ideal for vehicles or industrial facilities.
- Pro: Connects the common RP-TNC standard (e.g., on older Cisco devices) with the professional and robust N-standard for outdoor Antennas.
- Pro: The N-connector is designed for outdoor use and, in combination with the nickel-plated housing, offers a durable, weatherproof solution.
- Pro: High-quality materials like gold-plated contacts and a PTFE dielectric ensure minimal signal attenuation and a clean signal.
- Note: For an optimal, weatherproof connection, you should tighten the screw connections with a suitable torque wrench.
- Note: Pay close attention to the 'Reverse Polarity' (RP) type. This adapter only fits an RP-TNC female connector (with a pin), not a standard TNC connector.
Specifications & Features
| Manufacturer Part Number (MPN): | TNC-17-27-TGN |
| EAN / GTIN: | 4251028601434 |
| Product Type: | Coaxial High-Frequency Adapter |
| Design: | Straight |
| Connector A (Side 1): | RP-TNC Male (Reverse Polarity TNC Male) |
| Feature Connector A: | External thread, central contact is a socket (hole) |
| Connector B (Side 2): | N Female (N-Type Female) |
| Feature Connector B: | Internal thread, central contact is a socket (hole) |
| Impedance: | 50 Ohm |
| Frequency Range: | DC to 11 GHz |
| Insertion Loss: | ≤ 0.15 dB |
| Voltage Standing Wave Ratio (VSWR): | ≤ 1.22 |
| Operating Voltage: | 500 V |
| Dielectric Withstanding Voltage: | 1500 V rms |
| Insulation Resistance: | ≥ 5 GΩ |
| Contact Resistance (Center Contact): | ≤ 1.5 mΩ |
| Contact Resistance (Outer Contact): | ≤ 1 mΩ |
| Housing Material: | Brass |
| Surface Plating: | Nickel Plated |
| Contact Pin Material: | Brass or Copper Alloy |
| Contact Pin Plating: | Gold Plated |
| Insulator (Dielectric): | PTFE (Polytetrafluoroethylene) |
| Coupling: | Threaded (7/16-28 UNEF thread) |
| Mating Cycles (Durability): | > 500 cycles |
| Operating Temperature: | -65 °C to +165 °C |
| Weather Resistance: | Yes, N-side when correctly installed |
| Vibration Resistance: | Very high |
| Typical Standards Compliance: | MIL-STD-348, IEC 60169-17 |
| Weight: | approx. 20 g - 39 g |
Scope of Delivery
| 1 x Coaxial Adapter - RP-TNC Male to N Female, 50 Ohm |
Frequently Asked Questions (FAQ)
Will this adapter work to connect my FRITZ!Box to a large outdoor antenna?
That really depends on your FRITZ!Box. Most models use RP-SMA connectors, but this adapter has an RP-TNC plug. You should check carefully to see if your device actually has an RP-TNC port – this is more common on older professional equipment from brands like Cisco. For your FRITZ!Box, you will likely need a different type of Coaxial Adapter.
What exactly does 'RP' in RP-TNC mean?
RP stands for 'Reverse Polarity'. This means the inner conductor is swapped: your RP-TNC plug has a hole in the center instead of the usual pin. So, make sure your counterpart has the matching pin to establish a connection.
Can I also use the adapter outdoors on my mast antenna?
Yes, absolutely! The N-socket is specifically made for outdoor use and is weatherproof when screwed on tightly. The sturdy, nickel-plated housing reliably protects the adapter from rust. For perfect, long-lasting protection, you can also wrap the connection with self-amalgamating sealing tape.
What frequencies can I use the adapter for?
The adapter covers a huge frequency range up to 11 GHz. So you can easily use it for all your Network applications like WiFi (2.4 GHz, 5 GHz, 6 GHz), 4G, or 5G without having to worry about signal loss.
What's the advantage of this screw-on adapter over a simple BNC push-on adapter?
The key advantage for you is the rock-solid screw connection. While BNC adapters are just plugged in, the thread here ensures an extremely stable and vibration-proof connection. This is perfect if your setup is exposed to vibrations or if cables are moved.
Will I lose signal strength because of the adapter?
Don't worry! While every adapter has a tiny, theoretical signal attenuation, with this high-quality model it's so extremely low at under 0.15 dB that you'll notice absolutely no difference in your signal strength or range in practice.
