Poor connectivity slowing down your projects?
In today's connected world, reliable cellular connections are crucial – whether for M2M applications, IoT devices, or temporary mobile workstations. Often, integrated antennas are insufficient, or the installation of fixed outdoor antennas is too complex or impractical. The result is unstable connections, slow data transfers, and interrupted processes that significantly impair your efficiency and productivity.

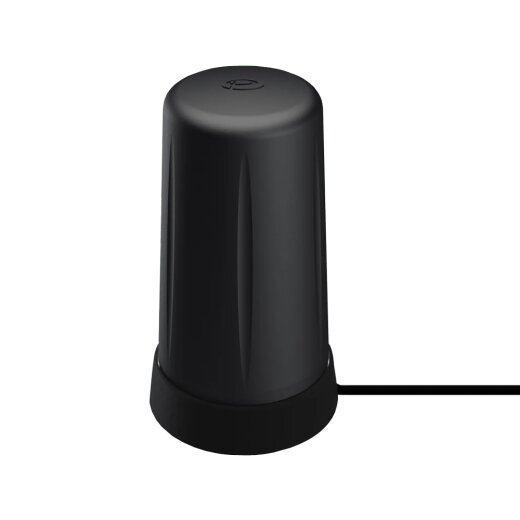

The Panorama LPBEM-6-60-2SP: Your flexible solution for stable cellular connections.
The Panorama LPBEM-6-60-2SP offers you a straightforward and powerful solution to these challenges. As a versatile magnetic mount antenna, it enables you to quickly and flexibly improve your 2G, UMTS, LTE, and 5G connectivity. You can temporarily attach it to any suitable metal surface and easily relocate it as needed. This ensures that your devices are always optimally connected without the need for complex installations.
In-depth details for maximum performance.
The LPBEM-6-60-2SP is a Single-Input Single-Output (SISO) antenna that covers an extremely wide frequency spectrum from 617 MHz to 6000 MHz. This includes all relevant global cellular bands, including the new 5G frequencies and the important LTE Band 71 (600 MHz), making it a future-proof investment. Its omnidirectional radiation pattern ensures 360-degree coverage, so you don't need to be precisely aligned with a cell tower. The peak gain varies by frequency band, reaching an impressive 8 dBi in the upper 5G range (4000-6000 MHz), while still providing a solid 3 dBi in the lower range (617-960 MHz). The antenna is designed for operation with a maximum input power of 25 watts and features vertical polarization. The integrated 2-meter flexible RG174 coaxial cable terminates in a standardized SMA (male) connector, ensuring compatibility with a wide range of cellular modems and routers. Mounting is via a strong magnetic base, which requires a conductive metal surface as a ground plane for optimal performance. Alternatively, the antenna can also be used as a desktop antenna, although this may result in slight performance degradation. The robust, black radome with an IPX6 certification reliably protects the internal technology from dust and strong water jets, allowing the antenna to be used in demanding indoor and outdoor environments. With dimensions of only 96 mm height and 48 mm diameter, it is compact and discreet. The operating temperature ranges from -40°C to +80°C, enabling reliable use in extreme environments. For MIMO applications, multiple LPBEM-6-60-2SP antennas can be deployed with sufficient separation to further increase data rates and connection reliability.
Invest in reliable connectivity that grows with you.
With the Panorama LPBEM-6-60-2SP, you are investing in a future-proof and flexible antenna solution. Its wide frequency coverage and compatibility with current and future cellular standards (2G, UMTS, LTE, 5G) ensure that your applications function optimally even with technological advancements. The easy installation and robust construction minimize maintenance and maximize the uptime of your critical systems. Optimize your connectivity today and gain a decisive advantage.
Technical Data
| Manufacturer: | Panorama Antennas |
| Model: | LPBEM-6-60-2SP |
| Antenna Type: | Multiband Magnetic Mount Antenna, SISO |
| Frequency Range: | 617-960 MHz / 1710-6000 MHz (2G/UMTS/LTE/5G) |
| Peak Gain: | 3 dBi (617-960 MHz) to 8 dBi (4000-6000 MHz) |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-directional |
| Max. Input Power: | 25 W |
| VSWR: | <2.5:1 (typical) |
| Cable Type: | RG174 Coaxial Cable |
| Cable Length: | 2 Meters |
| Connector: | SMA (male) |
| Mounting Type: | Magnetic mount (temporary), desk mount possible |
| Ground Plane: | Recommended for optimal performance (>300mm diameter) |
| Housing Material: | Robust, high-impact radome |
| Color: | Black |
| IP Rating: | IPX6 |
| Dimensions (H x Ø): | 96 mm x 48 mm |
| Operating Temperature: | -40°C to +80°C |
Scope of Delivery
| 1 x Panorama LPBEM-6-60-2SP Magnetic Mount Antenna |
| 1 x Integrated 2m RG174 Cable with SMA (m) Connector |
| 1 x Double-sided adhesive pad (optional for desk mounting) |
Häufig gestellte Fragen (FAQ)
What frequency ranges is the Panorama LPBEM-6-60-2SP antenna suitable for?
The antenna covers a very wide frequency range from 617 MHz to 6000 MHz. This includes all common 2G, UMTS, LTE (4G), and 5G bands, including the important LTE Band 71 (600 MHz) and the upper 5G frequencies, making it extremely versatile.
Can I use the antenna without a metal surface or mount it permanently?
The LPBEM-6-60-2SP is primarily designed for magnetic mounting on a conductive metal surface (ground plane) to achieve optimal performance. You can also use it as a desktop antenna, but this may lead to slight performance degradation. Permanent screw mounting is not intended for this model; however, other models in the LPB series are available for such purposes.
Is the antenna suitable for MIMO applications?
Yes, although the LPBEM-6-60-2SP is a SISO (Single-Input Single-Output) antenna, you can deploy multiple units with sufficient separation to implement a MIMO (Multiple-Input Multiple-Output) configuration. This can improve data rates and the reliability of your cellular connection.
