4G / 5G Coaxial Antenna Cable | 2.5m, Twin / Duplex, N male to SMA male

2.5m antenna cable in twin / dual design with N male to SMA male connector. Flexible, high-quality and cost-effective. Especially suitable for use with an 4G or 5G antenna and a corresponding router. An example view of an SMA connector on a router on can be found in the product images.
ART5608 4251028601175 CC-NM-SM-2.5-D-G
22,49 €
incl. 19% VAT , plus shipping costs (Standard)
Pieces
  • Available immediately
  • Delivery time: 2 - 3 Workdays (DE - int. shipments may differ)
Description

This high-quality, low-loss and yet flexible antenna cable in twin/dual design (two cables in one strand) is specially designed for the connection between an 4G or 5G antenna and a router. Due to the good performance data, the antenna cable offers a high degree of flexibility with low attenuation in the frequency bands.

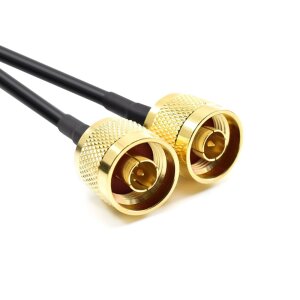

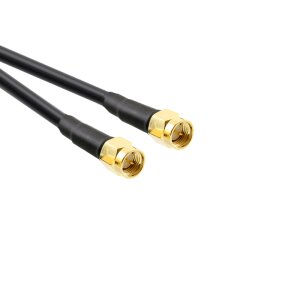

The antenna cable is equipped with the connector combination N male (suitable for common 4G and 5G antennas) on SMA male plug (suitable for all common 4G and 5G routers).

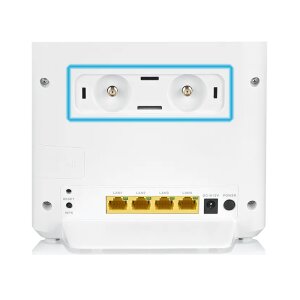

If you are not sure whether the SMA connector of the cable fits your router, we have included an example view of an SMA connector on an 4G / 5G router as an article image.


Technical Data:

Cable:CLF-200 TWIN
Length:2.5m
Impedance:50 Ohm
Loss:0,30db/m @ 800MHz
0,46db/m @ 1,8GHz
0,56db/m @ 2,6GHz
Capacity:80.3pf/m
Inner conductor:1.12mm Copper
Isolation:2.95mm PE
Jacket:PVC
Outer diameter:4,95 mm
Color:Black
Connector:N male to SMA male


Scope of delivery:

1 x 2.5m Twin Antenna Cable N male / SMA male
