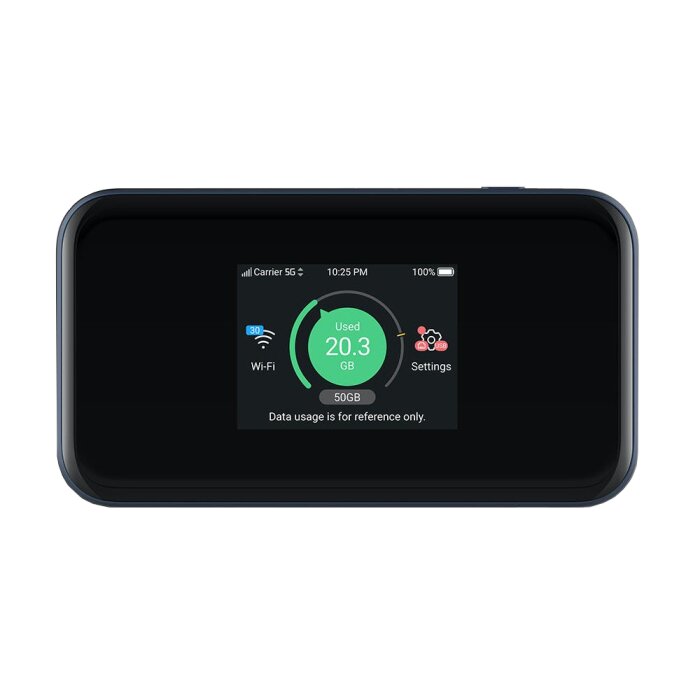

Your Internet for Your Pocket: 5G Performance to Go
No more slow public Wi-Fi. The ZTE MU5002 is your personal high-speed command center. Equipped with the proven Qualcomm Snapdragon X55 modem, you are well-prepared for the future of mobile communication. The router supports both 5G NSA and the future-proof SA (Standalone) mode, ensuring lower latencies and maximum compatibility in all 5G networks. Whether on the train, in a holiday home, or as a backup for your home Network – with this 4G / 5G Router you always have a stable and lightning-fast connection for all your devices, everywhere.
One Port, Countless Possibilities: The Adaptive LAN/WAN Port
The true genius of the MU5002 lies in its flexibility. The Gigabit Ethernet port is a true multi-talent. If you connect it to an existing Network, e.g., in a hotel room, it transforms into a WAN port and sets up a secure, private Wi-Fi 6 Network for you. If, on the other hand, you want to provide your gaming PC or workstation with maximum speed and stability, it functions as a classic LAN port and forwards the 5G signal directly via cable. A WiFi Router with LAN connection that perfectly adapts to your needs.
Optimized Reception Thanks to External Antenna Connections
Are you traveling in a region with a weak mobile signal? No problem. The ZTE MU5002 has two TS-9 connectors that allow you to connect external 5G or 4G Antennas. This is ideal for use in vehicles, campers, or in buildings with strong shielding. This way, you get the maximum speed and stability from your connection even under difficult conditions and significantly improve your reception.
Intelligent Management and Long-lasting Energy
Always keep an overview. On the clear 2.4-inch color touchscreen, you can see signal strength, data consumption, battery level, and the number of connected devices at a glance. For deeper settings, simply use the web interface or the convenient 'ZTE Link' app on your smartphone. The powerful 4,500 mAh battery provides up to 8 hours of operating time, is replaceable, and thanks to Quick Charge 3.0, it's fully charged again in no time. And if your phone runs out of juice, the MU5002 even doubles as a practical power bank.
Strengths & Notes at a Glance
- Pro: Extreme connectivity flexibility through 5G, Wi-Fi 6, and adaptive Gigabit port.
- Pro: Powerful and proven hardware basis with Qualcomm Snapdragon X55.
- Pro: Easy control and monitoring directly on the device thanks to the 2.4-inch touchscreen.
- Pro: Well-thought-out Power Supply with replaceable battery, Quick Charge 3.0, and power bank function.
- Note: The Wi-Fi range is naturally smaller than with large, stationary routers.
- Note: With many simultaneously active devices, performance may decrease.
Specifications & Features
| Manufacturer: | ZTE |
| Model: | MU5002 |
| EAN: | 6902176076916 |
| Device Type: | Mobile 5G Router (MiFi) / Portable Hotspot |
| Modem/Processor: | Qualcomm® Snapdragon™ X55 (SDX55) |
| Wi-Fi Chipset: | Qualcomm® QCA6391 |
| 5G Modes: | SA (Standalone) & NSA (Non-Standalone) |
| 5G Peak Data Rate: | Up to 3.8 Gbit/s (theoretical, EN-DC) |
| 5G Frequency Bands (FDD): | n1/3/5/7/8/20/28 |
| 5G Frequency Bands (TDD): | n38/40/41/77/78 |
| 4G Category: | 4G Cat. 20 / 22 |
| 4G Frequency Bands: | B1/3/5/7/8/20/28/38/39/40/41/42 |
| 3G WCDMA Bands: | B1/2/5/8 |
| Wi-Fi Standard: | Wi-Fi 6 (802.11a/b/g/n/ac/ax) |
| Wi-Fi Frequency: | Dual-Band (2.4 GHz & 5 GHz) |
| Wi-Fi Features: | 2x2 MIMO, MU-MIMO |
| Max. Connected Devices: | 32 |
| SIM Card Slot: | 1 x Nano-SIM (4FF) |
| Ethernet Port: | 1 x RJ45 Gigabit (WAN/LAN adaptive) |
| USB Port: | 1 x USB 3.1 Type-C (Charging, Data, Reverse Charging) |
| Antenna Connectors: | 2 x TS-9 (for external 5G/4G Antennas) |
| Display: | 2.4 inch Color Touchscreen (320x240 QVGA) |
| Battery Capacity: | 4,500 mAh (Lithium-Ion, replaceable) |
| Battery Life: | Up to 8 hours |
| Charging Technology: | Qualcomm Quick Charge 3.0 |
| Power Bank Function: | Yes, Reverse Charging (up to 10W) |
| Dimensions: | 133 x 73 x 18.5 mm |
| Weight: | 220 g |
| Management: | Touchscreen, Web Interface, 'ZTE Link' App |
Scope of Delivery
| 1 x ZTE MU5002 Pocket 5G Router |
| 1 x Replaceable Battery (4,500 mAh) |
| 1 x USB Type-C Charging and Data Cable |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Can the ZTE MU5002 replace a fixed-line internet connection?
Yes, for individuals or small households in areas with good 5G or 4G reception, the MU5002 can be a viable alternative to fixed-line broadband. Its Gigabit LAN interface even allows direct connection of a computer or an Ethernet Switch for maximum speed.
Do I need to install software to operate the LTE / 5G Routers?
No, for basic operation, no software installation is required on your end devices. You simply connect to the WiFi Routers's WiFi Routers network. For advanced settings, you can access the administration interface via a web browser or use the optional 'ZTE Link' app.
What are the TS-9 connectors on the ZTE MU5002 for?
The two TS-9 connectors allow the connection of external 5G Antennas / Outdoor Antennas/4G / LTE Outdoor Antennas. This is particularly useful in areas with weak mobile signals to significantly improve reception and thus internet speed.
Does the ZTE MU5002 support all SIM cards?
The device is usually available without a SIM lock and supports Nano-SIM cards from all mobile network providers that use the supported frequency bands. It is advisable to compare your provider's frequency bands with the LTE / 5G Routers's specification list.
What is the difference between 5G SA (Standalone) and NSA (Non-Standalone)?
NSA (Non-Standalone) uses an existing Network as an anchor, while SA (Standalone) functions completely independently of Network and enables lower latencies. The MU5002 supports both modes, making it future-proof and maximally compatible.
How does the WAN/LAN switching of the Ethernet port work?
The RJ45 port automatically detects what is connected. With an internet Ethernet Cables (e.g., in a hotel), it becomes the WAN input. If you connect a computer, it acts as a LAN output and uses the 5G/Network.
