Internet over Long Distances: Your Personal Data Highway
No more slow connections at remote locations. The Ubiquiti Wave LR is your solution to bring a powerful internet connection where trenching cables is impossible or too expensive. As a client device (CPE) in a Point-to-MultiPoint Network or as part of a dedicated point-to-point connection with a second Wave LR (from FW 3.2.0), you create a digital bridge with Gigabit-speed. Supply branch offices, warehouses, or entire buildings with the speed they need for modern applications. The Wave LR is the perfect choice for Internet Service Providers and demanding enterprise networks, showcasing Ubiquiti' commitment to robust connectivity.
Wave LR as a Wireless Link: Maximum Performance Meets Reliability
The heart of the Wave LR is the powerful 60 GHz radio module. This frequency is significantly less congested than the classic 5 GHz band, enabling extremely stable connections with low latency, making it a prime example of 60 GHz Components. But what happens during heavy rain, the natural enemy of 60 GHz signals? Ubiquiti has prepared for this: an integrated 5 GHz backup radio module based on Wi-Fi 6 automatically takes over if the main connection is affected by 'Rain Fade'. This ensures your connection always stays online – a crucial advantage for anyone relying on uninterrupted connectivity. This combination makes the Wave LR one of the most reliable solutions among 60 GHz Components and 5 GHz Components.
Precision Down to the Detail: Installation Made Easy

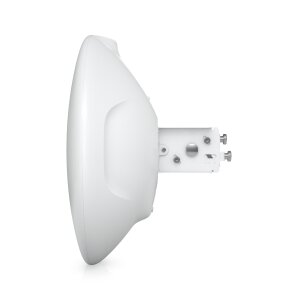

A wireless link over several kilometers requires precise alignment. Ubiquiti makes this process as simple as possible for you. Thanks to the integrated Bluetooth module, you connect directly with your smartphone and the UISP Mobile App (part of the UISP / UniFi Cable ecosystem). The app guides you through the setup and helps you with real-time data for perfect alignment. The included precision mounting bracket allows for sensitive adjustment in azimuth and elevation. Integrated GPS also assists with Network planning and management within the central UISP platform. Power is supplied easily via the included PoE Injectors / Power Supplies.
Built for Outdoor Use: Robustness in Any Weather
The Wave LR was developed for continuous and reliable outdoor operation. The housing, made of UV-stabilized polycarbonate, is protected against strong jet water according to the IPX6 standard, thus withstanding even the most severe storms. With a tested wind load of 286 N at 200 km/h and an operating temperature range of -40 to 60° C, this device is prepared for almost any location in the world. Rely on hardware that won't let you down, no matter what the weather holds for you. This robust design is ideal for various Antennas and Antenna Mounting Accessories.
Strengths & Notes at a Glance
- Pro: Excellent range of up to 8 km with high data throughput in the low-interference 60 GHz band.
- Pro: Robust, IPX6 weatherproof design with high wind stability for reliable outdoor use.
- Pro: Integrated 5 GHz failover radio (Wi-Fi 6) provides redundancy during extreme weather conditions.
- Pro: Easy and precise installation thanks to the included precision bracket and Bluetooth setup via UISP App.
- Note: The usable duplex throughput is limited to 1 Gbit/s by the single 1 GbE port, although the radio module could achieve more.
- Note: The performance of the 5 GHz backup link may vary in practice and does not always reach theoretical maximum values.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UISP Wave Long-Range (Wave-LR) |
| EAN: | 0810010078995 |
| Device Classification: | Client Device (Station / CPE) |
| 60 GHz Main Radio Module | |
| Frequency Range: | 57 - 71 GHz (region-dependent) |
| Technology: | Proprietary Wave Technology |
| Max. Total Throughput: | 2 Gbit/s |
| Duplex Throughput: | 1 Gbit/s |
| Max. Range (with Wave AP): | Up to 8 km |
| Max. Range (with Wave AP Micro): | Up to 6 km |
| Antenna Gain: | 46 dBi |
| Max. Transmit Power (TX Power): | 26 dBm |
| Max. EIRP (FCC): | 72 dBm |
| Channel Bandwidth: | 2.160 MHz, 1.080 MHz, 540 MHz |
| Modulation: | 16QAM, QPSK |
| Polarization: | Vertical Linear |
| Beamwidth (3 dB): | 0.8° (Azimuth & Elevation) |
| 5 GHz Backup Radio Module | |
| Frequency Range: | 5.150 - 5.875 GHz (region-dependent) |
| WiFi Standard: | 802.11ax (Wi-Fi 6) |
| Max. Throughput: | 800 Mbit/s |
| Antenna Gain: | 22 dBi |
| Channel Bandwidth: | 20, 40, 80 MHz |
| Modulation: | BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Polarization: | Dual-Linear |
| Beamwidth (3 dB): | 8 - 10° (Azimuth & Elevation) |
| Hardware & System | |
| Processor: | Dual-Core ARM® Cortex®-A53 @ 1 GHz |
| Memory (RAM): | 512 MB DDR3L |

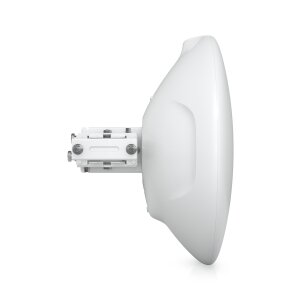

| Network Interface: | (1) 1 GbE RJ45 Port |

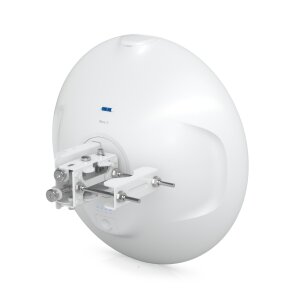

| GPS: | Yes, integrated |
| Management Interface: | Bluetooth for Setup via UISP® Mobile App |
| LED Indicators: | Power, Ethernet, GPS, Link (60GHz/5GHz Status) |
| Reset Button: | Yes, Factory Reset |
| Power Supply | |
| Power Supply Method: | Passive PoE (4-pair or 2-pair) |
| Max. Power Consumption: | 20W |
| Supported Voltage Range: | 44–54V DC (4-pair/2-pair PoE), 22–27V DC (4-pair PoE only) |
| Included Power Adapter: | 48V DC, 0.65A Gigabit PoE Adapter |
| Physical Properties | |
| Dimensions: | Ø 424.4 x 166.2 mm |
| Weight (without bracket): | 2.6 kg |
| Weight (with bracket): | 3.8 kg |
| Housing Material: | UV-stabilized plastic / polycarbonate |
| Mounting Material: | Stainless steel |
| Pole Mounting Diameter: | 25 to 76.2 mm |
| Wind Load: | 286 N at 200 km/h |
| Weather Protection Class: | IPX6 |
| Operating Temperature: | -40 to 60° C |
| Operating Humidity: | 5 to 95% non-condensing |
| Software & Management | |
| Operating System: | airOS® |
| Operating Modes: | PtMP Station, PtP (from FW 3.2.0) |
| Network Modes: | Bridge, Router (Router mode only as PtMP Station) |
| Encryption: | WPA2-PSK (AES) |
| Management Platform: | UISP Application (Version 1.4.5 and higher) |
| Ubiquiti Features: | Wave AI, Discovery Protocol |
| Supported Services: | Ping Watchdog, NTP Client, SNMP |
| Integrated Tools: | Antenna Alignment, Speed Test, Ping, Traceroute, Site Survey |
| Certifications & Compliance | |
| Certifications: | FCC, IC, CE |
| Compliance: | NDAA Compliant |

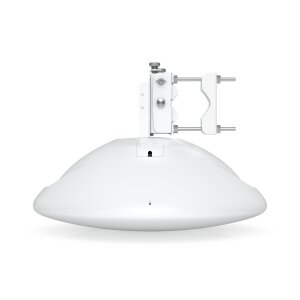

Scope of Delivery
| 1 x Ubiquiti UISP Wave Long-Range (Wave-LR) |
| 1 x Precision Alignment Bracket |
| 1 x 48V DC, 0.65A Gigabit PoE Adapter |
Frequently Asked Questions (FAQ)
Is a clear line of sight (Line of Sight) required for the Ubiquiti Wave LR?
Yes, absolutely. For operation in the 60 GHz frequency band, a 100% clear line of sight (LOS) without obstacles such as trees or buildings between the Wave LR Station and the WiFi Access Points is absolutely essential. Even heavy rain can attenuate the signal.
What is the purpose of the 5 GHz backup radio module?
The 5 GHz radio module serves as an automatic failover. Should the primary 60 GHz connection be interrupted by extreme weather conditions such as heavy rain, the system seamlessly switches to the more robust 5 GHz connection to maintain connectivity, albeit with lower bandwidth. This ensures reliable Network performance.
Can I use two Wave LR units for a point-to-point connection?
Yes, from firmware version 3.2.0, the Wave LR also supports a Point-to-Point (PtP) mode. You can therefore connect two Wave LR devices directly to each other to establish a dedicated high-speed bridge over a long distance. This is ideal for robust Network links.
How is the Ubiquiti Wave LR powered?
Power is supplied exclusively via passive Power over Ethernet (PoE). A suitable 48V, 0.65A Gigabit PoE Injectors / Power Supplies is included. The device can also be powered by compatible Ubiquiti Networks UniFi Switches.
What is the difference between the Wave LR and the Wave Nano?
The main difference lies in the range and antenna size. The Wave LR has a larger parabolic Antennas with higher gain (46 dBi), achieving a greater range (up to 8 km) than the Wave Nano (41 dBi, up to 5 km). The Wave LR is therefore the better choice for connections over longer distances, utilizing advanced airMAX ac Components.
Do I need special software to manage the Wave LR?
Yes, management and monitoring are centrally performed via the free Ubiquiti Networks ISP platform "UISP / UniFi Cable" (from version 1.4.5). Initial setup can also be conveniently done via Bluetooth with the UISP Mobile App on a smartphone or tablet, simplifying your Network configuration.
