Ubiquiti UniFi Cable / UC-C6-CMP - Indoor CAT6 Ethernet cable for use in high-speed UniFi and regular networks with data rates of up to 1Gbit. The UC-C6-CMP cable meets the requirements of a CMP fire protection cable. CMP (Communications Multipose Cable, Plenum) cables are intended for use in plenum areas within buildings where air normally circulates. Cables for these areas must meet strict manufacturing requirements to ensure they can be used in these spaces.
Technical Data:
| Manufacturer / Model: |
Ubiquiti / UC-C6-CMP |
| Type: |
Ethernet Cable |
| Length: |
305m |
| Standard: |
CAT6 |
| Ethernet: |
up to 10 Gbit |
| Conductor Type: |
Bare Solid Copper |
| Conductor Wire Gauge |
23 AWG |
| Conductor Diameter: |
0.575 mm, nominal |
| Insulation Type: |
FR-PE |
| Insulation Thickness: |
0.2 mm, nominal |
| Insulation Diameter: |
1.0 +- 0.1 mm |
| Anti-Crosstalk Divider Type: |
FR-PE |
| Anti-Crosstalk Divider: |
5.0 x 0.5mm, nominal |
| Rip Cord: |
Yes |
| Jacket Material: |
Low Smoke Flame Retardant PVC |
| Jacket Thickness: |
0.55mm, nominal/td>
|
| Jacket Outer Diameter: |
5.6 +-0.20 mm |
| Jacket Color: |
White |
| Reference Standard: |
ISO/IEC 11801, TIA/EIA568B.2 |
Scope of delivery:

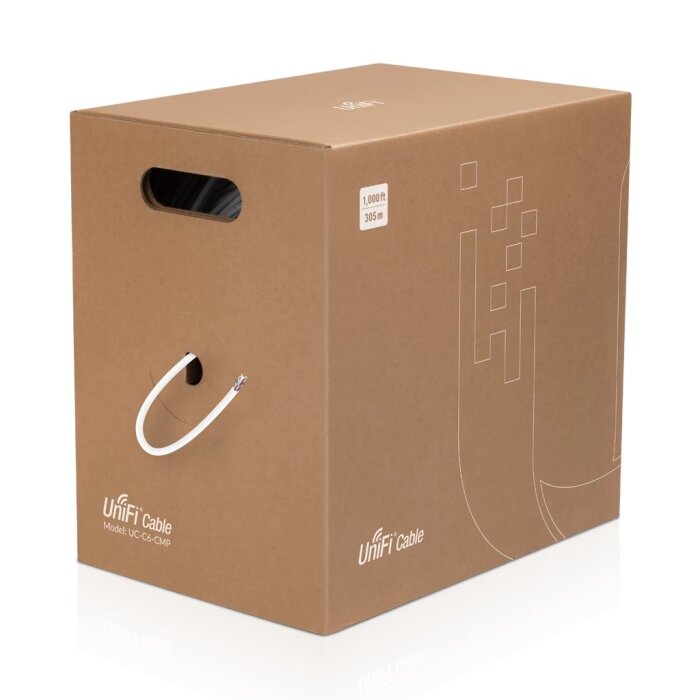

| 1 x 305m BOX Ubiquiti UniFi Cable / UC-C6-CMP |
