Your Network Upgrade: The UniFi Switch Pro 8 PoE in Detail
When your Network grows and demands increase, you need a control center that can keep up. The Ubiquiti UniFi Switch Pro 8 PoE is exactly that: a high-performance, managed Ethernet Switch designed for demanding environments. With eight Gigabit Ethernet ports and a robust Layer 3 engine, it forms the foundation for a stable and lightning-fast Network. Whether you're equipping a small business, upgrading your smart home, or operating a complex surveillance system – this UniFi Switch delivers the necessary power and intelligence.
Maximum Power with PoE+ and PoE++
Forget countless power adapters and cable clutter. The USW-Pro-8-PoE provides a hefty PoE budget of 120 Watts. Six ports support the PoE+ standard (802.3at) for devices such as IP Cameras or VoIP phones. However, the true stars are the two PoE++ Ports (802.3bt), each capable of delivering up to 60 Watts. This allows you to power even the most power-hungry devices, such as the latest UniFi 6 or 7 Access Points and professional PTZ cameras, with just a single Network cable for data and power.
Future-Proof thanks to 10G SFP+ and Layer 3 Features

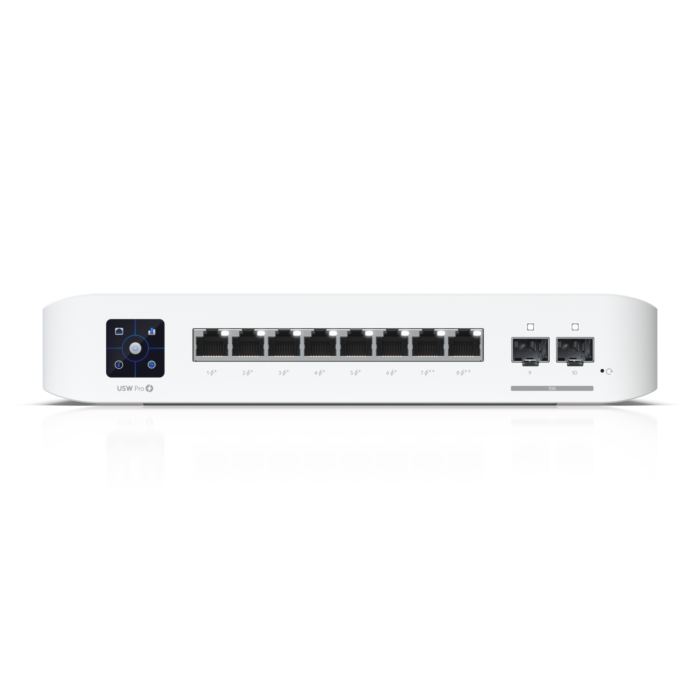

While the RJ45 ports are perfect for your end devices, the two 10G SFP+ Uplink-Ports ensure that the UniFi Switch itself doesn't become a bottleneck. Connect it at light speed to your main distributor or a fast NAS and enjoy maximum data rates. But the true intelligence lies in the Layer 3 features. With Inter-VLAN Routing, the UniFi Switch can independently and highly efficiently control data traffic between different Networks (e.g., guests, office, IoT) without burdening your router. This makes it a central component in the professional UniFi Switch family.
Intuitive Management via Touchscreen and UniFi Controller
Ubiquiti stands for a seamless user experience. Like all UniFi devices, the UniFi Switch is centrally adopted and managed via the UniFi Network Application. This 'Single Pane of Glass' view gives you full control over configuration, monitoring, and troubleshooting. A unique feature is the 1.3-inch Touchscreen directly on the device. It provides important status information at a glance, shows current power consumption, and even supports Augmented Reality functions for easy port identification with the UniFi Mobile App.
Strengths & Notes at a Glance
- Pro: Extremely flexible Power Supply thanks to PoE+ and PoE++ support.
- Pro: Powerful 10G SFP+ Uplinks for bottleneck-free connectivity.
- Pro: Layer 3 features offload the router and boost Network performance.
- Pro: Perfect integration into the UniFi ecosystem for central management.
- Pro: Compact design with innovative Touchscreen for quick diagnostics.
- Note: The RJ45 ports are limited to 1 Gbit/s; no Multi-Gigabit support for end devices.
- Note: Under high load, the fan may be audible in very quiet environments.
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi Switch Pro 8 PoE (USW-Pro-8-PoE) |
| EAN: | 0810084692691 |
| Product Classification: | Layer 3 Managed Network Switch |
| Management Interface: | Ethernet In-Band |
| GbE RJ45 Ports: | 8 x 10/100/1000 Mbps |
| PoE+ Ports (IEEE 802.3at): | 6 |
| PoE++ Ports (IEEE 802.3bt): | 2 |
| 10G SFP+ Ports: | 2 x 1G/10G |
| Switching Capacity: | 56 Gbps |
| Total Non-Blocking Throughput: | 28 Gbps |
| Forwarding Rate: | 42 Mpps |
| Layer 2 Features: | LACP, STP/RSTP, IGMP Snooping, 802.1X, Port Isolation, DHCP Snooping, Storm Control, Port Mirroring, Jumbo Frames, Voice VLAN, Flow Control, LLDP-MED, MAC Address Blocking |
| Layer 3 Features: | Inter-VLAN Routing, Static Routing, DHCP Server, DHCP Relay |
| MAC Address Table Size: | 16,000 |
| Supported VLANs: | 1,000 |
| ARP Entries: | 6,000 |
| IPv4 Routes (Static): | 256 |
| Packet Buffer Size: | 1.5 MB |
| Total PoE Budget: | 120W |
| Max. Wattage per Port (PoE): | 15.4W |
| Max. Wattage per Port (PoE+): | 32W |
| Max. Wattage per Port (PoE++): | 64W |
| PoE Voltage Range: | 44–57V (PoE), 50–57V (PoE+/PoE++) |
| Power Supply: | Internal AC/DC Power Adapter, 150W |
| Supported Voltage Range: | 100–240V AC, 50/60 Hz |
| Max. Power Consumption (without PoE): | 30W |
| Max. Power Consumption (incl. PoE): | 150W |
| Display: | 1.3' LCM Touchscreen |
| Dimensions: | 200 x 248 x 44 mm |
| Weight: | 2.1 kg |
| Housing Material: | Polycarbonate and Metal |
| Form Factor: | Desktop, Wall Mountable |
| Operating Temperature: | -5°C to 45°C |
| Operating Humidity: | 10% to 90% non-condensing |
| Management Software: | UniFi Network Application (v7.5.176 or newer) |
| Certifications: | CE, FCC, IC, NDAA Compliant |
Scope of Delivery
| 1 x Ubiquiti UniFi Switch Pro 8 PoE (USW-PRO-8-POE) |
| 1 x Mounting Kit (Screws and Anchors) |
| 1 x Power Cable |
| 1 x Quick Start Guide |
Frequently Asked Questions (FAQ)
Do I need to use the UniFi Network Application to operate the UniFi Switch?
Yes, for full configuration and utilization of management, VLAN, and Layer-3 functions, the UniFi Network Application is mandatory. Without adoption into a controller, it functions only as a simple, unmanaged UniFi Switch.
Can this UniFi Switch replace my Router?
No. Although it has basic Layer-3 routing functions like static and Inter-VLAN routing, it does not replace a full-fledged Router. It does not offer NAT, firewall, or WAN functionality and is designed to offload the Router in the internal Network.
What is the difference between PoE+ and PoE++?
The main difference is the maximum power provided. PoE+ (802.3at) delivers up to 30 watts per port, while PoE++ (802.3bt) can deliver up to 60 watts per port. PoE++ is required for devices with very high power demands such as professional PTZ IP Cameras or powerful WiFi Access Points, utilizing advanced PoE Injectors / Power Supplies.
Can I mount the UniFi Switch in a 19-Inch Rack?
No, the UniFi Switch is designed for desktop use or wall Mounting Systems. It does not have the standard width for direct 19-Inch Rack mounting. However, third-party rack shelves could be used.
What does the touchscreen display?
The touchscreen provides a quick overview of the system status, port assignment, current PoE consumption, and data throughput. It also enables the use of the UniFi Augmented Reality (AR) function for visual identification of ports on the UniFi Switch.
Is the UniFi Switch oversized for a pure home Network?
For a simple home Network, it is likely oversized. However, for prosumers, Smart Homes with many PoE devices like IP Cameras and WiFi Access Points, or small business Networks requiring VLAN separation and high performance, it is ideal.
