Crystal-Clear 4K Surveillance Day and Night

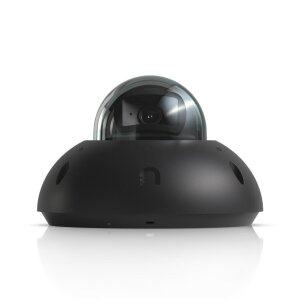

The UniFi G6 Dome redefines image quality. Its core is an impressive 1/1.8' 8MP CMOS sensor, delivering native 4K resolution (3840 x 2160) at a smooth 30 frames per second. The result is not only incredibly detailed live images but also recordings where you can effortlessly identify faces or license plates. When night falls, the camera automatically switches to night vision mode. The powerful, integrated IR LEDs illuminate areas up to 30 meters away and, together with the IR cut filter, ensure clear and noise-free black and white images.
Built to Last: Vandalism-Proof & Weather-Resistant
Where other IP Cameras reach their limits, the G6 Dome just begins. Its robust aluminum alloy housing is certified with the highest protection class IK10 against vandalism. This means it withstands massive impacts and is the ideal choice for publicly accessible areas. Additionally, the IP66 certification guarantees that neither dust nor strong water jets can harm the camera. With an operating temperature range of -20°C to 50°C, it is perfectly equipped for year-round outdoor use under all conditions.
Intelligence Onboard: Smart AI Detection Without Cloud Dependency
Forget false alarms from swaying branches or fleeting shadows. The Ubiquiti G6 Dome features a powerful Multi-TOPS AI Engine that performs complex analyses directly on the device. It precisely detects people, vehicles, and animals. But that's not all: the advanced AI also enables face and license plate recognition. All events are intelligently categorized in the UniFi Protect software, allowing for lightning-fast and targeted searches in your recordings – all securely within your local Network, without reliance on an external cloud.
Seamless Integration into Your UniFi Network
As part of the Ubiquiti ecosystem, the G6 Dome is perfectly matched to the UniFi Protect management platform. Setup is incredibly simple: connect the camera via an Ethernet Cable to a PoE-enabled UniFi Switch or one of the suitable PoE Injectors / Power Supplies, and it will be automatically detected and configured. You manage all your IP Cameras centrally via an intuitive web interface or the mobile app, securely access live streams and recordings from anywhere, and benefit from a professional system without ongoing license or cloud fees.
Strengths & Notes at a Glance
- Pro: Excellent 4K image quality thanks to a large 1/1.8' 8MP sensor.
- Pro: Extremely robust construction with IP66 weather protection and IK10 vandalism protection.
- Pro: Powerful on-device AI for precise detection without additional server load.
- Pro: Perfect and fee-free integration into the UniFi Protect ecosystem.
- Note: The Network connection is limited to 10/100 Mbps, which is sufficient for the stream but does not meet the Gigabit standard.
- Note: The camera is designed exclusively for operation with UniFi Protect and is not compatible with third-party systems (e.g., via ONVIF).
Specifications & Features
| Manufacturer: | Ubiquiti |
| Model: | UniFi Video Camera G6 Dome (UVC-G6-Dome) |
| EAN: | 0810177163404 |
| Device Class: | Client Device (IP Camera) |
| Sensor: | 1/1.8' 8MP CMOS Sensor |
| Lens: | Fixed-focus lens |
| Resolution: | 4K, 8 Megapixel - 3840 x 2160 (16:9) |
| Maximum Frame Rate: | 30 FPS |
| Field of View (Horizontal): | 109.9° |
| Field of View (Vertical): | 56.7° |
| Field of View (Diagonal): | 134.1° |
| Night Vision Mode: | Integrated IR LEDs and IR Cut Filter |
| IR Range: | Up to 30 m |
| Image Settings: | Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control, 2DNR, 3DNR, NR by Motion, Masking, Text Overlay, HDR |
| Processor: | Quad-Core Arm® Cortex®-A53 based chip |
| AI Engine: | Multi-TOPS AI Engine |
| Audio: | Integrated Microphone |
| Network Port: | (1) 10/100 MbE RJ45 Port |
| Power Supply: | Power over Ethernet (PoE) |
| Supported Voltage Range: | 37–57V DC |
| Maximum Power Consumption: | 9.25W |
| Dimensions: | Ø 144.7 x 96.3 mm |
| Weight: | 820 g |
| Housing Material: | Aluminum Alloy |
| Mounting Material: | Polycarbonate |
| Color: | Black |
| Weather Protection Class: | IP66 |
| Vandalism/Impact Resistance: | IK10 |
| Operating Temperature: | -20°C to 50°C |
| Operating Humidity: | 0 to 90% non-condensing |
| Management Software: | UniFi Protect |
| Intelligent Detection: | People, Vehicles, Animals, Face Recognition, License Plate Recognition |
| Certifications: | CE, FCC, IC |
| NDAA Compliant: | Yes |
Scope of Delivery
| 1 x Ubiquiti UniFi Video Camera G6 Dome (UVC-G6-Dome) |
| 1 x Mounting Material |
Frequently Asked Questions (FAQ)
Does the Ubiquiti G6 Dome require a separate Power Supply?
No, the camera is powered via Power over Ethernet (PoE). You only need a single Ethernet Cable connected to a PoE-enabled Ethernet Switch or a PoE Injector / Power Supply. The supported voltage range is between 37 and 57V DC.
Is the G6 Dome suitable for outdoor use in all weather conditions?
Yes, absolutely. It is IP66 certified, meaning it is dust-tight and protected against powerful water jets. Additionally, it is designed for a temperature range of -20°C to 50°C, making it suitable for year-round outdoor use.
What does the IK10 rating mean?
IK10 is the highest protection class for mechanical impact resistance. This means the camera's Enclosure can withstand an energy of 20 joules, equivalent to a 5 kg object falling from 40 cm, making it extremely resistant to vandalism.
Can the camera recognize faces and license plates?
Yes, thanks to its powerful on-board AI, the G6 Dome can recognize faces and license plates. These events are marked in the UniFi Protect software, allowing for quick and targeted searching of recordings.
What type of NVR is required for the G6 Dome?
The camera is exclusively designed for use with the UniFi Protect software. This runs on Ubiquiti Networks hardware such as the UniFi Dream Machine Pro (UDM-Pro), the UniFi Protect Network Video Recorder (UNVR), or the CloudKey Gen2 Plus.
What is the difference compared to the older G5 Dome?
The difference is significant. The G6 Dome offers 4K resolution, triple night vision range, advanced AI features like face and license plate recognition, and a higher protection class (IP66/IK10). It is the clearly superior choice.
