Maximum Flexibility Where You Need It

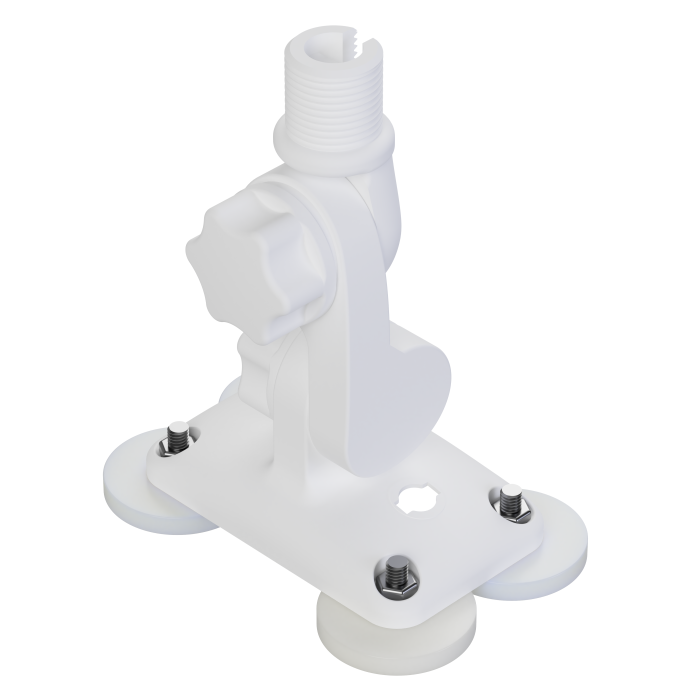

Forget rigid Mounting Systems that limit your flexibility! With the BATLINK 3DKM 3D Antenna Tilt Mount, you revolutionize the way you mount and align your Antennas. Whether on your vehicle, your camper, or your boat – this mount gives you full control over your signal strength. Thanks to its two 180° joints and a 360° swivel range, you can position your antenna exactly as the situation requires. The tool-free adjustment of the tilt joints allows for lightning-fast and uncomplicated alignment – perfect for changing conditions or locations. This way, you get the maximum out of your WiFi Antennas or 4G/5G Antennas.
Unshakeable Hold on Any Terrain
Trust in the power of Neodymium magnets! The magnetic base of the BATLINK 3DKM offers an impressive adhesive force of up to 36 kg. This means: Your antenna stays securely in place, even at high speeds or rough seas. The integrated rubber coating not only protects the surface of your vehicle or boat from scratches but also significantly increases slip resistance. Vehicle mounting or boat mounting has never been so easy and secure.
Built for Eternity – Regardless of the Weather
The BATLINK 3DKM is not a fair-weather product. Made from a high-strength special plastic (nylon), this antenna tilt mount is IP66 certified, making it absolutely weatherproof and UV-resistant. But that's not all: It also withstands aggressive seawater conditions, making it the first choice for demanding marine applications. Rain, wind, sun, or saltwater – your mount handles it all and guarantees a long lifespan.
Smart Details for Your Convenience
We know that details matter. The BATLINK 3DKM is suitable for all Antennas with a standardized 1 inch BSF external thread (14 tpi) – not just for BATLINK Antennas. This makes it universally compatible. And for those who value clean Cabling: The mount features a clever cable routing through a side slot on the thread. This allows you to easily insert your Antenna Cables, even if the connector is already mounted. A true piece of Antenna Mounting Accessories that makes your life easier.
Strengths & Notes at a Glance
- Pro: Robust and weatherproof construction: Made from high-quality nylon, the mount is IP66-certified, weather and UV-resistant, and withstands even aggressive seawater.
- Pro: High flexibility: With two 180° joints and a 360° swivel range, the 3D joint tilt mount allows precise and flexible antenna alignment.
- Pro: Strong and secure hold: Equipped with Neodymium magnets, the magnetic base offers an adhesive force of up to 36 kg and features a rubber coating to protect against scratches and increase slip resistance.
- Note: Mounting limited to magnetic surfaces: The mount requires a ferromagnetic surface for attachment, which limits its application possibilities.
- Note: Specific thread: Compatibility is limited to antennas with a 1 inch BSF (14 tpi) external thread.
Specifications & Features
| Manufacturer: | BATLINK Antennentechnik |
| Model: | 3DKM (3D Antenna Tilt Mount, Magnetic Base) |
| Product Type: | Antenna Tilt Mount |
| Attachment: | Magnetic Base |
| Thread: | 1 inch BSF External Thread (14 tpi) |
| Joints: | 2x 180° Tilt Joint, 1x 360° Swivel Range (3D Joint) |
| Material: | High-strength Nylon |
| Magnet Type: | Neodymium Magnets |
| Adhesive Force: | Up to 36 kg |
| Protection Class: | IP66 |
| Resistance: | Weatherproof, UV-resistant, Seawater-resistant |
| Surface Protection: | Rubber Coating (non-slip, scratch-protective) |
| Cable Management: | Cable Routing at the Thread |
| Application Areas: | Vehicle Mounting, Boat Mounting, Marine Applications |
| Tool-free Adjustment: | Yes |
Scope of Delivery
| 1 x BATLINK 3DKM 3D Antenna Tilt Mount, Magnetic Base |
Frequently Asked Questions (FAQ)
How is the BATLINK 3DKM mounted?
You simply place the BATLINK 3DKM on a magnetic surface such as a vehicle roof or a boat railing. The neodymium magnets ensure a secure hold, and the rubber coating protects your surface from scratches.
Which antennas is the BATLINK 3DKM suitable for?
The holder is suitable for all antennas with a standardized 1 inch BSF external thread (14 tpi), including your BATLINK antennas and many other marine and camping models.
What materials are used for the BATLINK 3DKM?
The holder is made of robust nylon and equipped with neodymium magnets.
Is the BATLINK 3DKM weatherproof?
Yes, the BATLINK 3DKM is IP66 certified, weather and UV resistant, and also withstands aggressive seawater.
Can I route cables through the holder?
Yes, the holder has a side slot on the 1 inch BFS thread, which allows for easy insertion of your cables, even if the connector is already mounted.
How strong is the magnetic base of the BATLINK 3DKM?
The neodymium magnets of the BATLINK 3DKM offer a holding force of up to 36 kg.
