Your Command Center for Huge Omada Networks

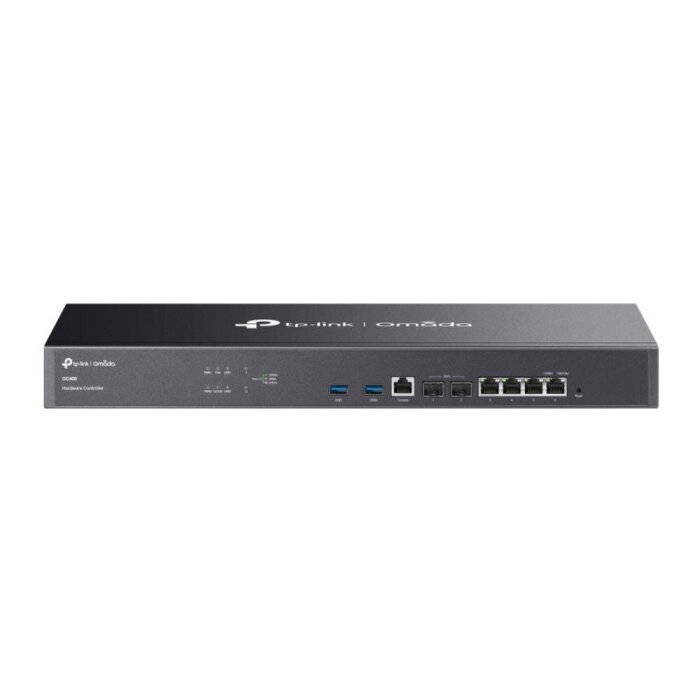

With the TP-Link Omada OC400, you take full control over your entire TP-Link Omada ecosystem. This Omada Hardware Controller is your central brain for managing up to 1,000 Omada Access Points, 200 Omada Switches, and 100 Omada Routers. No matter how complex or extensive your Network is – Omada's centralized Network management makes monitoring and configuration a breeze. You benefit from a single interface that offers comprehensive insights and full control, significantly simplifying Network management and boosting your productivity.
Performance that Simply Blows Away Bottlenecks
Say goodbye to network bottlenecks! The TP-Link Omada OC400 is equipped with dual 10G SFP+ ports, providing up to 10 times faster server connectivity than standard Ethernet. While many controllers still rely on Gigabit ports, the OC400 allows you to eliminate data traffic bottlenecks between your Ethernet Switch devices and servers. This is crucial for demanding enterprise networks that require high throughput – for example, when transferring large files or during intensive 4K video streaming. With this SDN Controller 10G SFP+, you are prepared for the future and ensure that your Omada Network Backbone solution always performs optimally.
Enterprise-Level Reliability and Efficiency
The TP-Link Omada OC400 is designed for maximum reliability and consistent performance. It features two internal, permanently installed redundant power supplies, ensuring an uninterrupted network architecture and minimizing downtime. Unlike software-based controllers, the OC400 offers dedicated hardware resources – a powerful Quad-Core CPU and 8 GB DDR4 RAM. This leads to drastically lower latency between the controller and devices (from an average of ~12ms to under 2ms) and immediate confirmation for simultaneous updates for multiple WiFi Access Points. Additionally, the OC400 supports Zero-Touch Provisioning (ZTP), which significantly simplifies installation for large or distributed networks and reduces the need for on-site IT experts.
Flexibility that Grows with You
With the TP-Link Omada OC400, you enjoy maximum flexibility in managing your network. Thanks to Cloud Management Omada Network, you can access and configure your devices anytime, anywhere via the Omada App or the web UI. At the same time, local management (On-Premises) is possible, offering you the highest level of control and data security. The OC400 also supports Multi-Site Management Controller with role-, site-, and device-based permissions, making it ideal for Service providers or companies with multiple locations. It is the perfect solution for large Omada Network Management that grows with your requirements and gives you the freedom to design your network as you need it.
Strengths & Notes at a Glance
- Pro: Comprehensive centralized management and scalability for up to 1,000 APs, 200 Switches, and 100 Routers.
- Pro: High reliability through redundant power supply and 2x 10GE SFP+ ports to eliminate bottlenecks.
- Pro: Flexible access and management options (Hybrid Cloud) via Omada App or Web UI.
- Note: Higher acquisition costs and complexity that might be overkill for very small networks.
- Note: Designed exclusively for TP-Link Omada devices, no management of third-party devices possible.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | Omada OC400 |
| Product Type: | Hardware Controller |
| EAN: | 8885020620023 |
| CPU: | Quad-Core A72 @ 2.2 GHz |
| RAM: | 8 GB DDR4 |
| Flash: | 4 MB Nor Flash, 32 GB eMMC |
| Interfaces: | 2x 10G SFP+ Ports, 1x Gigabit Ethernet Port, 1x USB 3.0 Port |
| Max. Managed Devices: | 1,000 APs, 200 Switches, 100 Routers |
| Power Supply: | 2x Redundant internal power supplies (100-240V~50/60Hz, 0.6A) |
| Management Types: | Cloud & On-Premises |
| Zero-Touch Provisioning: | Yes |
| Multi-Site Management: | Yes |
| Dimensions (W x D x H): | 440 x 220 x 44 mm |
| Operating Temperature: | 0–50 °C |
| Humidity: | 10–90% RH non-condensing |
Scope of Delivery
| 1 x TP-Link Omada OC400 Hardware Controller |
| 2 x Power Cords |
| 1 x Rackmount Kit |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
What is the TP-Link Omada OC400?
The TP-Link Omada OC400 is a dedicated hardware controller for centralized management of Omada SDN networks, including Access Points, Switches, and Routers.
What are the main features of the Omada OC400?
Key features include centralized cloud management, 10G SFP+ ports for high-speed connections, a powerful quad-core processor, and robust network scalability.
What are the 10G SFP+ ports on the OC400 used for?
The OC400's 10G SFP+ ports provide ultra-fast uplink capabilities, essential for networks with high bandwidth demands and for future-proofing.
How does the OC400 benefit from the quad-core processor?
The quad-core processor ensures smooth operation and efficient management of a large number of Omada devices, even under high network load.
Is the Omada OC400 suitable for large networks?
Yes, the Omada OC400 is specifically designed for large networks, offering high performance, reliability, and comprehensive device management features.
How does the OC400 differ from software controllers?
Unlike software controllers, the OC400 is a dedicated appliance that offers higher reliability, better performance, and simplified deployment without a separate server.
