Your Wi-Fi Problem: Weak Signals and Cable Clutter?
Do you know the feeling when your Wi-Fi signal simply doesn't reach certain rooms or its performance leaves much to be desired? Traditional access points are often bulky, difficult to position, and require unsightly cable routing. Especially in professional environments such as hotels, offices, or educational institutions, a reliable and aesthetically pleasing Wi-Fi solution is essential to meet the demands of modern connectivity.

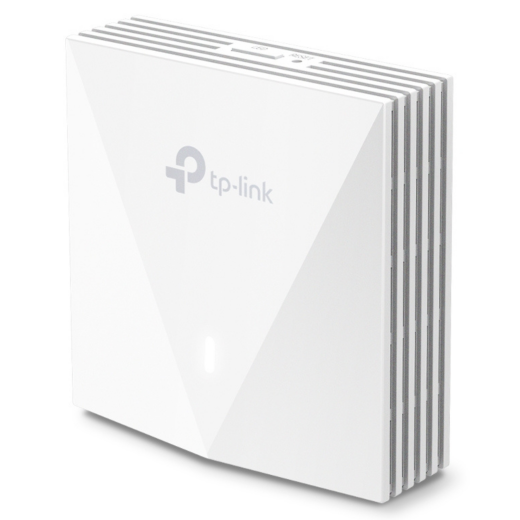

The Solution: The TP-Link EAP650-Wall – Your Discreet High-Performance Wi-Fi Partner
The TP-Link Omada Access Point EAP650-Wall is the elegant answer to your Wi-Fi challenges. This innovative Wi-Fi Access Point was specifically designed for wall mounting in standard EU in-wall junction boxes, blending seamlessly into any interior. Say goodbye to visible devices and cable clutter! It delivers not only a flawless design but also superior performance that takes your network to the next level.
Technology That Inspires: WiFi 6 and Omada SDN
Featuring the latest WiFi 6 (802.11ax) technology and an impressive total speed of 2976 Mbps (574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz), the EAP650-Wall offers unparalleled performance. Thanks to features like OFDMA and MU-MIMO, data is sent more efficiently to multiple devices simultaneously, reducing latency and significantly increasing network efficiency in high-density environments. Integration into the Omada SDN Platform enables central, cloud-based management, giving you full control and scalability for your entire network – anytime, anywhere.
Maximum Flexibility and Security for Your Network
The TP-Link EAP650-Wall is not only powerful but also extremely flexible. With two Gigabit Ethernet ports (one uplink, one downlink), you can directly connect wired devices such as IP phones or smart TVs and power them via 802.3af/at PoE. It supports up to 16 SSIDs for secure guest networks with Captive Portal authentication (SMS/Voucher/Facebook Wi-Fi) and offers advanced security features like WPA3 and VLAN support. Experience seamless roaming and intelligent channel and power adjustment for an always optimized Wi-Fi experience.
Technical Specifications
| Model: | TP-Link EAP650-Wall |
| Device Type: | Wi-Fi Access Point |
| Wi-Fi Standard: | IEEE 802.11ax/ac/n/g/b/a (WiFi 6) |
| Wi-Fi Speed (Total): | Up to 2976 Mbps |
| Wi-Fi Speed (2.4 GHz): | Up to 574 Mbps |
| Wi-Fi Speed (5 GHz): | Up to 2402 Mbps |
| Antennas: | 2x 3 dBi (2.4 GHz), 2x 5 dBi (5 GHz) internal Dual-Band Antennas |
| Ethernet Ports: | 1x Gigabit Uplink, 1x Gigabit Downlink |
| PoE Support: | 802.3af/at PoE |
| Power Consumption: | 11.5 W (EU) |
| Mounting: | Wall Mount (Mounting Kits Included) |
| Dimensions (W x D x H): | 86 × 86 × 42.6 mm |
| Central Management: | Omada SDN (Cloud, Software Controller, Hardware Controller, Omada App) |
| Wi-Fi Features: | OFDMA, MU-MIMO, 1024-QAM, 160 MHz Channel, BSS Coloring, Band Steering, Seamless Roaming |
| Guest Network: | Yes, up to 16 SSIDs, Captive Portal (SMS/Voucher/Facebook Wi-Fi) |
| Security: | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, 802.1X, VLAN, Rogue AP Detection |
| Concurrent Clients: | 100+ |
| Coverage Area: | Approx. 40 m² |
| Operating Temperature: | 0°C to 40°C |
| Storage Temperature: | -40°C to 70°C |
| Operating Humidity: | 10% to 90% non-condensing |
Scope of Delivery
| 1 x TP-Link Omada EAP650-Wall Access Point |
| 1 x Wall Mount Kit |
| 1 x Installation Guide |
Häufig gestellte Fragen (FAQ)
What is the main advantage of the TP-Link EAP650-Wall compared to traditional access points?
The main advantage of the TP-Link EAP650-Wall lies in its special wall-mount design, which allows for discrete and space-saving integration into standard EU in-wall junction boxes. Additionally, thanks to WiFi 6 (AX3000), it offers lightning-fast speeds and high network efficiency, ideal for environments with many devices.
What speeds does the TP-Link EAP650-Wall achieve and which Wi-Fi standards does it support?
The TP-Link EAP650-Wall achieves a combined Wi-Fi speed of up to 2976 Mbps, split into 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. It supports the latest Wi-Fi standards IEEE 802.11ax/ac/n/g/b/a, including WiFi 6 and older standards.
How is the TP-Link EAP650-Wall powered and managed?
The TP-Link EAP650-Wall is conveniently powered via Power over Ethernet (PoE) according to 802.3af/at standards, eliminating the need for a separate power cable. Management is centralized through the TP-Link Omada SDN Platform, either via the cloud, a software controller, a hardware controller, or the intuitive Omada App.
Can I also connect wired devices with the EAP650-Wall?
Yes, the TP-Link EAP650-Wall features two Gigabit Ethernet ports: an uplink port for network connection and a downlink port. You can connect wired devices such as IP phones, smart TVs, or computers to the downlink port and even power them via PoE if needed.
Is the TP-Link EAP650-Wall suitable for guest networks and what security features does it offer?
Absolutely! The TP-Link EAP650-Wall is perfectly suited for guest networks and supports up to 16 separate SSIDs. It offers extensive security features such as Captive Portal authentication (e.g., via SMS, voucher, or Facebook Wi-Fi), the latest security standard WPA3, 802.1X authentication, VLAN support, and Rogue AP Detection to optimally protect your network.
