AX3600 Performance for High-Density WLAN
The TP-Link Omada EAP660 HD was specifically designed for one mission: to provide outstanding WiFi for many users in confined spaces. In conference rooms, lecture halls, event venues, or open-plan offices, where dozens or hundreds of devices are online simultaneously, this WLAN Access Point plays to its strengths. Thanks to High-Density technologies like OFDMA and MU-MIMO, data streams are intelligently and parallelly distributed to many clients. The result: less latency, higher efficiency, and a significantly better user experience for everyone.
The 2.5 Gbps Port: Your Turbo for True WiFi 6
What good is the fastest WiFi speed if the Network connection slows it down? The EAP660 HD solves this problem with a future-proof 2.5 Gbps Ethernet Port. This connection ensures that the full bandwidth of the AX3600 standard truly reaches the Network. In combination with a suitable Multi-Gigabit Ethernet Switch, you unleash the true potential of your Network and are well-equipped for the growing demands of the future. Power is supplied conveniently and flexibly via PoE+ (802.3at).
Centralized Management with the TP-Link Omada Platform
Say goodbye to the tedious configuration of individual devices. The EAP660 HD is fully integrated into the Omada SDN platform, which enables 100% centralized management of your entire Network via a single interface. Whether you manage one, ten, or a hundred WLAN Access Points at different locations – with free Cloud access, a hardware controller (like the OC200), or the software solution, you always have full control. Scale your Network, monitor its status in real-time, and deploy updates with just a few clicks.
Enterprise-Level Security and Flexibility
Network security is a top priority. The EAP660 HD supports the latest WPA3 encryption standard for maximum protection of your Network. Furthermore, it offers advanced security features such as a customizable Captive Portal for guests, SSID-to-VLAN mapping for network segmentation, and the detection of unauthorized 'Rogue' WLAN Access Points. With up to 16 SSIDs (8 per frequency band), you can create separate Networks for different user groups or departments, further improving security and organization.
Strengths & Notes at a Glance
- Pro: Excellent Wi-Fi 6 Performance, ideal for environments with very high client density (High-Density).
- Pro: 2.5 Gbps Ethernet Port to prevent Network bottlenecks.
- Pro: Free and flexible centralized management via the Omada SDN platform (Cloud, Hardware, Software).
- Pro: Excellent price-performance ratio compared to direct competitor products.
- Note: Does not support 160 MHz channels, which can limit the theoretical peak speed for individual clients.
- Note: Absolutely requires a PoE+ (802.3at) capable Ethernet Switch or PoE Injectors / Power Supplies, as standard PoE (802.3af) is not sufficient.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | Omada EAP660 HD |
| EAN: | 6935364089719 |
| Device Classification: | WLAN Access Point |
| Chipset / CPU: | Qualcomm IPQ8072A |
| CPU Architecture: | ARM Cortex-A53 (64-bit) |
| CPU Cores: | 4 (Quad-Core) |
| CPU Clock Speed: | 2.2 GHz |
| 5 GHz WLAN Chipset: | Qualcomm QCN5054 |
| 2.4 GHz WLAN Chipset: | Qualcomm QCN5024 |
| Ethernet Chipset: | Qualcomm QCA8081 |
| Frequency Bands: | Dual-Band (2.4 GHz & 5 GHz) |
| WLAN Standards: | IEEE 802.11ax/ac/n/g/b/a |
| Max Data Rate (5 GHz): | Up to 2402 Mbps |
| Max Data Rate (2.4 GHz): | Up to 1148 Mbps |
| Total Data Rate (WLAN Class): | AX3600 (3550 Mbps) |
| Antenna Type: | Internal Omni-directional Antennas |
| Antenna Configuration (2.4 GHz): | 4x Internal 2.4 GHz Antennas |
| Antenna Gain (2.4 GHz): | 4 dBi per Antenna |
| Antenna Configuration (5 GHz): | 4x Internal 5 GHz Antennas |
| Antenna Gain (5 GHz): | 5 dBi per Antenna |
| Key WLAN Technologies: | OFDMA, 4x4 MU-MIMO (Uplink/Downlink), 1024-QAM, Beamforming, Band Steering, Load Balancing, Airtime Fairness, Omada Mesh |
| Seamless Roaming: | Supports IEEE 802.11k/v/r |
| Max SSIDs: | 16 (8 per Band) |
| Recommended Client Count: | Over 1000 (High-Density) |
| WLAN Encryption: | WPA3-Personal/Enterprise, WPA2-Personal/Enterprise, WPA-Personal/Enterprise, WEP |
| Security Features: | Captive Portal, Access Control, MAC Address Filtering, Client Isolation, SSID-to-VLAN Mapping, Rogue AP Detection, 802.1X Support |
| Transmit Power (CE, 2.4 GHz): | <20 dBm (EIRP) |
| Transmit Power (CE, 5 GHz): | <23 dBm (Band 1&2, EIRP), <30 dBm (Band 3, EIRP) |

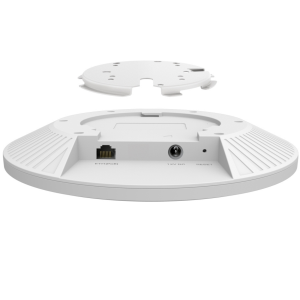

| Interfaces: | 1x 2.5 Gbps Ethernet Port (RJ-45) |
| Power Supply: | 802.3at PoE+ or 12V DC Power Adapter |
| Max Power Consumption (EU): | 18.5 W |
| Management: | Omada SDN (Cloud, Hardware-Controller, Software-Controller), Standalone Web-Interface, TP-Link Omada App |
| Dimensions (W x D x H): | 243 × 243 × 64 mm |
| Weight: | 882 g (without packaging) |
| Mounting: | Ceiling or Wall Mounting Systems |
| Operating Temperature: | 0 °C to 40 °C |
| Operating Humidity: | 10% to 90% (non-condensing) |
| Certifications: | CE, FCC, RoHS |
Scope of Delivery
| 1 x TP-Link Omada EAP660 HD WLAN Access Point |
| 1 x 12V DC Power Adapter |
| 1 x Ceiling/Wall Mounting Kit |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Is the TP-Link EAP660 HD a Router?
No, the EAP660 HD is purely a WiFi Access Point. It provides WiFi, but requires a separate Router for Network management and to provide an internet connection.
Do I need an Omada Controller to use the EAP660 HD?
No, the WiFi Access Point can also be configured in standalone mode via its own web interface. However, for advanced functions like seamless roaming, Mesh, or the central management of multiple UniFi Access Points, a TP-Link Omada Controller is required.
What type of PoE Switch is needed for the EAP660 HD?
You need an Ethernet Switch that supports the PoE+ standard (IEEE 802.3at). A standard PoE Injectors / Power Supplies (802.3af) will not provide enough power for operation.
Can the EAP660 HD be used outdoors?
No, the device is designed exclusively for indoor use and does not have appropriate weather resistance. The operating temperature is specified from 0°C to 40°C.
What does 'HD' mean in the product name?
'HD' stands for 'High-Density'. This highlights the WiFi Access Point's ability to efficiently serve a large number of clients simultaneously in a small area, such as in conference rooms or lecture halls, optimizing the Network performance.
Does the EAP660 HD support WPA3?
Yes, the EAP660 HD supports the modern and secure WPA3 encryption standard in both 'Personal' and 'Enterprise' variants, providing maximum Network security.
