Unstoppable Wi-Fi 6: Your Outdoor Access Point for Any Weather
No more weak WiFi in the garden, on the terrace, or in your company's outdoor area. The TP-Link EAP625-Outdoor HD was specifically designed to defy the elements. Its IP67 certified housing is absolutely dustproof and even withstands temporary submersion unscathed. Whether scorching heat, icy frost, or heavy rain – this Access Point reliably delivers high-speed WiFi, making it the perfect choice for demanding outdoor installations that simply must work.
Built for Crowds: High-Density WiFi for Events & Public Places
The 'HD' in the name stands for 'High-Density', and that's not an empty promise. Thanks to state-of-the-art Wi-Fi 6 technologies like OFDMA and MU-MIMO, the EAP625-Outdoor HD can serve a massive number of devices simultaneously without performance degradation. It is the ideal solution for Outdoor WiFi for many users – be it in a beer garden, by the hotel pool, at a festival site, or a public square. Offer hundreds of guests a fast and stable Network experience simultaneously.
Intelligent Network Management with TP-Link Omada SDN
The EAP625-Outdoor HD is more than just a single Access Point; it is part of the intelligent ecosystem of TP-Link Omada. Integrate it seamlessly into your Software Defined Network (SDN) and manage your entire Network – including Access Points, Switches, and Routers – from a single, central interface. Use Cloud access for management from anywhere in the world, set up flexible wireless bridges with Omada Mesh, and benefit from professional features like Seamless Roaming (802.11k/v) for uninterrupted connections when you move.
Maximum Flexibility: Removable Antennas for Optimized Range
A crucial advantage of the EAP625-Outdoor HD are its two external, removable Antennas. While the included omnidirectional Antennas already offer excellent 360° coverage, you have the freedom to replace them. If necessary, mount powerful WiFi Antennas with directional capability to specifically send the signal over long distances and significantly increase the range of your Network. Power is conveniently supplied via Power over Ethernet (PoE+), simplifying installation with just one Cable. Please note that suitable PoE Injectors / Power Supplies are available separately.
Strengths & Notes at a Glance
- Pro: Excellent IP67 weather resistance for extreme outdoor conditions.
- Pro: Optimized specifically for High-Density scenarios with over 1,000+ clients.
- Pro: Seamless integration into the powerful Omada SDN platform for central management.
- Pro: Removable Antennas allow the use of directional antennas for range optimization.
- Note: No PoE Injector included. An 802.3at PoE+ Switch or Injector is required.
- Note: The Gigabit Ethernet Port can limit the theoretical total WiFi throughput.
Specifications & Features
| Manufacturer: | TP-Link |
| Model: | Omada EAP625-Outdoor HD |
| EAN: | 4895252506327 |
| Model Number: | EAP625-Outdoor HD |
| Device Class: | WiFi Access Point |
| Frequency Bands: | 2.4 GHz and 5 GHz (simultaneous) |
| WiFi Standard: | Wi-Fi 6 (IEEE 802.11ax/ac/n/g/b/a) |
| Wi-Fi 6 Features: | OFDMA, MU-MIMO (Up- & Downlink), 1024-QAM, BSS Color, Long OFDM Symbol, TWT |
| Max Data Rate (5 GHz): | 1201 Mbit/s (802.11ax, 2x2 MU-MIMO) |
| Max Data Rate (2.4 GHz): | 574 Mbit/s (802.11ax, 2x2 MU-MIMO) |
| Total Data Rate (Class): | AX1800 (1775 Mbit/s) |
| Transmit Power (CE, 2.4 GHz): | < 20 dBm |
| Transmit Power (CE, 5 GHz): | < 27 dBm |

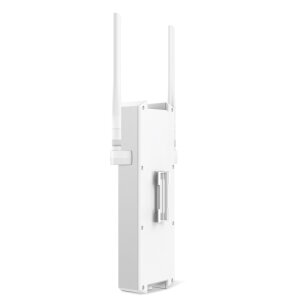

| Antenna Type: | 2x external, removable, omnidirectional antennas |
| Antenna Connector: | RP-SMA |
| Antenna Gain (2.4 GHz): | 3 dBi |
| Antenna Gain (5 GHz): | 5 dBi |

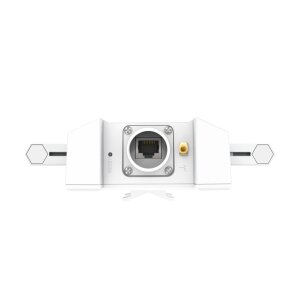

| Ports: | 1x Gigabit Ethernet (RJ-45) Port |
| Power Supply: | 802.3at PoE+ or 48V Passive PoE |
| Power Supply Note: | PoE adapter is not included |
| Power Consumption (EU): | 12.8 W (PoE+), 10.8 W (Passive PoE) |
| WiFi Encryption: | WPA/WPA2/WPA3 (Personal & Enterprise), WPA-PSK, WPA2-PSK, WPA3-SAE |
| Security Features: | MAC Address Filtering, Client Isolation, VLAN Support, Rogue AP Detection, 802.1X |
| Management: | Omada SDN Controller (Cloud, Hardware OC200/OC300, Software) or Standalone Mode |
| Management Features: | Omada Mesh, Seamless Roaming (802.11k/v), Band Steering, Load Balancing, Airtime Fairness, Beamforming |
| Protection Class: | IP67 (dustproof, protected against temporary submersion) |
| Lightning Protection: | 6KV |
| Operating Temperature: | -30 °C to 70 °C |
| Operating Humidity: | 10–90% non-condensing |
| Dimensions (without antennas): | 280.4 × 106.5 × 56.8 mm |
| Weight: | approx. 886 g |
| Mounting: | Pole or Wall Mount (Kits included) |
| Certifications: | CE, FCC, RoHS |
Scope of Delivery
| 1 x TP-Link Omada EAP625-Outdoor HD Access Point |
| 1 x Pole/Wall Mount Kit |
| 1 x Installation Guide |
Frequently Asked Questions (FAQ)
Is the TP-Link EAP625-Outdoor HD completely waterproof?
Yes, it is IP67 certified. This means it is completely dustproof and can be submerged in up to 1 meter of water for up to 30 minutes without damage. It is therefore optimally protected against rain, snow, and splashing water, making it a robust WiFi Access Point for any Network.
Do I need a special controller to operate the Access Point?
No, not necessarily. The WiFi Access Point can be configured in standalone mode via its own web interface. However, to use advanced functions such as Seamless Roaming, Mesh, and central management for multiple WiFi Access Points, the free TP-Link Omada Controller Software, an Omada Hardware Controller (e.g., OC200), or the cloud-based controller is recommended.
What does "HD" mean in the product name?
"HD" stands for "High-Density". These WiFi Access Point models are specifically optimized to provide a stable and high-performance connection in environments with many simultaneous WiFi clients, such as at events or in public spaces, ensuring a reliable Network.
Can I set up a Mesh network in the garden with the EAP625-Outdoor HD?
Yes, the WiFi Access Point supports Omada Mesh. This allows it to connect wirelessly with other TP-Link Omada-enabled WiFi Access Points. This way, you can flexibly extend WiFi coverage without having to lay an Ethernet Cable to every AP, simplifying your Network setup.
What is the range of the EAP625-Outdoor HD?
The range heavily depends on the environment, interference, and mounting height. Thanks to powerful amplifiers and external Antennas, it is designed for large outdoor coverage. In open areas, 100-150 meters and more can easily be covered, providing excellent WiFi Antennas performance for your Network.
Does the Access Point support the latest WPA3 security standard?
Yes, the EAP625-Outdoor HD supports the modern and secure WPA3 standard, both for private (WPA3-Personal) and enterprise networks (WPA3-Enterprise), offering enhanced protection for your WiFi Access Point and overall Network security.
