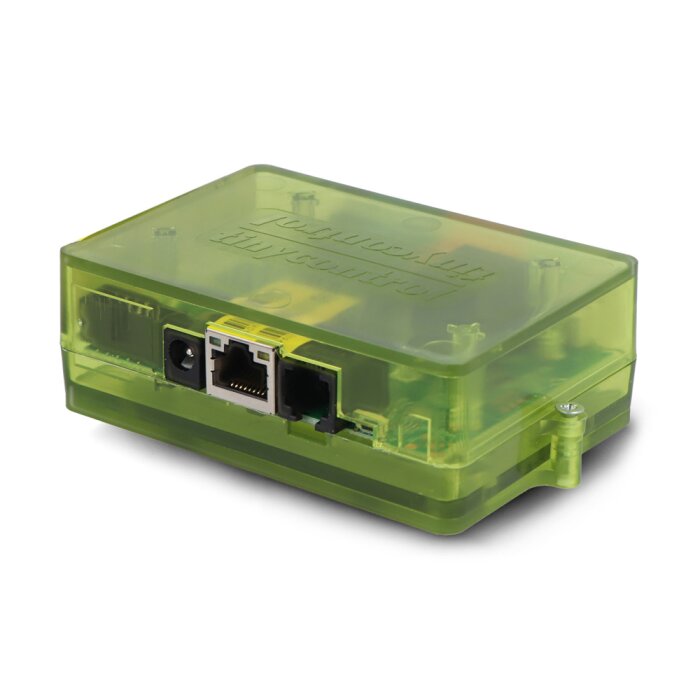

Your Project, Your Rules – Connectivity Without Limits with 4G
The tinycontrol LK4 4G frees your automation ideas from the shackles of infrastructure. Thanks to the integrated 4G modem, you only need a mobile signal to monitor and control your system worldwide. Whether for temperature monitoring in a remote holiday home, controlling an irrigation system in the field, or monitoring technical installations in containers – the LK4 4G ensures a stable connection. Additionally, the Ethernet port and the Wi-Fi module, which can operate as both a client and a WiFi Access Point, offer maximum redundancy and flexibility. You can even use both interfaces simultaneously to build a fail-safe Network.
One Controller for All Cases: Connect Sensors and Actuators Effortlessly

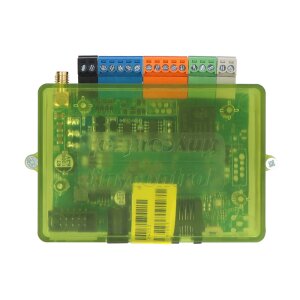

The true strength of the LK4 4G lies in its incredible versatility. Forget complicated gateways or add-on modules. This IoT Controller offers you a huge range of interfaces directly out of the box. Connect up to eight DS18B20 temperature sensors to the 1-Wire bus, integrate modern I2C sensors for humidity, pressure, or CO2, or read your energy meters via the pulse counting inputs or the Modbus RTU interface. With a powerful relay, multiple transistor and PWM outputs, and analog inputs, you can precisely switch and measure what is important for your project. It becomes the central intelligence in your entire Network.
On-Board Intelligence: Self-Sufficient Control with Events and Scheduler
Why be dependent on a cloud when intelligence can be right on site? The LK4 4G features highly developed software that allows you to create complex automation rules directly on the device. With the 'Events' function, you can define actions triggered based on up to three sensor conditions with logical operators – for example, 'If temperature > 25°C AND window contact open, THEN send SMS'. The integrated scheduler also enables up to 50 time-controlled actions. This self-sufficient control logic ensures maximum reliability, as it continues to function even if the internet connection is interrupted.
Professionally Powered and Mounted: PoE and DIN Rail
Designed for professional use, the LK4 4G also excels in the basics. The wide input voltage range of 8 to 58 Volts DC makes it compatible with most power supplies. The smartest option, however, is Power Supply via Power over Ethernet (PoE 802.3af). This means you only need a single Network cable for data and power, which significantly simplifies installation. You can, of course, find suitable PoE Injectors / Power Supplies with us. Thanks to the housing suitable for DIN rail (35mm), the IoT Controller can be mounted neatly and securely in any standard control cabinet.
Strengths & Notes at a Glance
- Pro: Extreme connectivity flexibility through 4G, Ethernet, and Wi-Fi in one device.
- Pro: Immense variety of interfaces (digital, analog, 1-Wire, I2C, Modbus) for universal sensor and actuator compatibility.
- Pro: Powerful on-board automation with event engine and scheduler for self-sufficient operation.
- Pro: Professional Power Supply (8-58V DC, PoE) and DIN rail mounting for use in control cabinets.
- Note: The high functional density may require a certain familiarization period for beginners without prior knowledge in automation technology.
- Note: The full range of functions, especially the support for new sensors, depends on the manufacturer's firmware updates.
Specifications & Features
| Manufacturer: | tinycontrol |
| Model: | LK4 4G |
| Manufacturer Part Number (MPN): | LANKON-302 |
| EAN: | 5906111106257 |
| Product Classification: | Universal IoT Controller |
| Primary Interface: | Integrated 4G modem |
| Secondary Interface: | Ethernet Port 10/100 Mbit/s |
| Tertiary Interface: | Wi-Fi 802.11n with integrated Antenna |
| Wi-Fi Modes: | Client (Station) and Access Point Mode |
| Dual-Interface Operation: | Ethernet and Wi-Fi can be used simultaneously |
| Supported Network Protocols: | HTTP, MQTT, SNMP, Modbus TCP, UDP |
| Security Protocols: | TLS (for HTTP, SMTP, MQTT), SNMP v3 |
| IP Addressing: | DHCP Client (Standard), APIPA, Static IP |
| Time Synchronization: | NTP (Network Time Protocol) |
| Power Supply: | 8 – 58 V DC |
| Power over Ethernet (PoE): | 802.3af (Mode A, passive with jumper) |
| Power Consumption (typ.): | approx. 0.5 W (without active relays) |
| Relay Output: | 1x (NO, C, NC) |
| Switching Capacity Relay: | 10A / 255VAC |
| Transistor Output: | 1x (switches supply voltage, up to 0.6A) |
| Open-Collector Outputs: | 4x |
| PWM Outputs: | 3x |
| PWM Frequency Range: | 1 Hz to 1 MHz |
| Logical Inputs: | 4x |
| Logical Input Functions: | State detection, pulse counting, time counting |
| Analog Inputs: | 3x with switchable measurement ranges |
| Measurement Range Analog INP1/2: | up to 3.3V or up to 58V |
| Measurement Range Analog INP3: | up to 5V or up to 58V |
| Voltage Measurement (internal): | Direct measurement of supply voltage up to 58V |
| 1-Wire Interface: | Yes, for up to 8x DS18B20 sensors |
| I2C Interface: | Yes (on RJ12 with 1-Wire) |
| Serial Interface: | UART (e.g., for MH-Z19, SDS011) |
| RS485 Interface: | Yes, for Modbus RTU |
| On-Board Sensor Technology: | Integrated temperature and humidity sensor |
| Management: | Integrated Web Interface |
| Automation: | Events (up to 3 conditions), Scheduler (up to 50 entries) |
| Network Monitoring: | IP Watchdog for up to 6 devices |
| API & Integration: | HTTP commands, MQTT, HTTP Client, mqtt.ats.pl Cloud |
| Mobile App: | Available |
| Mounting: | DIN Rail (35mm) |
| Operating Temperature: | -20°C to +85°C |
| Dimensions: | 106 x 79 x 38 mm |
| Weight: | 130 g |
Scope of Delivery
| 1 x tinycontrol LK4 4G in housing (LANKON-302) |
Frequently Asked Questions (FAQ)
Can the tinycontrol LK4 4G be simultaneously connected to the internet via WiFi and 4G?
Yes, the LK4 is designed to use multiple Network interfaces in parallel. This allows for setting up a redundant internet connection, where, for example, the 4G modem serves as a backup for the primary Ethernet or WiFi connection.
What types of sensors can I connect directly to the LK4 4G?
You can connect a variety of sensors directly, including up to eight DS18B20 temperature sensors via 1-Wire, various I2C sensors for temperature, humidity, air pressure, and CO2, as well as analog sensors for voltage measurements or digital sensors like door/window contacts.
Do I need a cloud Service to use the LK4 4G?
Is it possible to send an SMS notification with the LK4 4G in case of an alarm?
Yes, the version with an integrated 4G modem supports sending SMS notifications as a possible action within the Events function. For example, you can receive an SMS alert if a temperature threshold is exceeded or fallen below.
How is the tinycontrol LK4 4G powered?
The device is very flexible in terms of power supply. You can operate it either via a standard power supply with a voltage between 8 and 58 Volts DC or alternatively directly via the Network cable using Power over Ethernet (PoE 802.3af).
Can I also read energy meters with the LK4 4G?
Yes, the controller can count pulse outputs from energy meters via its logical inputs. It also supports reading smart energy meters via the Modbus-RTU interface to capture detailed values such as power, voltage, and total energy.
