No More Signal Loss: Your Teltonika Router at Its Best

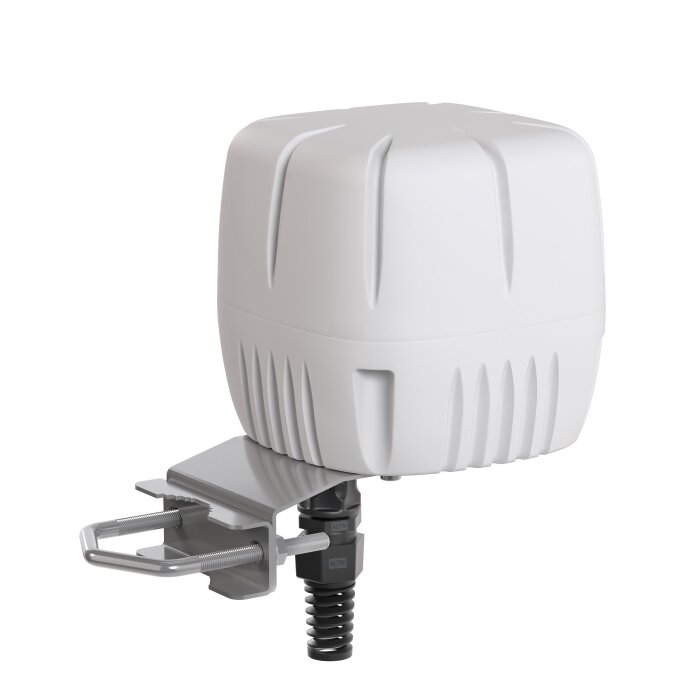

Are you familiar with this? You have a powerful Teltonika router, but long Antenna cables eat up a large portion of the valuable signal. The QuCube A206C puts an end to that. It's not an ordinary Enclosure, but a perfectly tuned system. By installing your router directly into the QuCube, you connect it via minimally short paths to the integrated high-performance Antennas. The result: maximum reception and highest transmission power, exactly where you need it – outdoors.
Built to Last: IP68 Protection for Extreme Conditions
Whether on a ship, a construction vehicle, or an exposed house wall – your equipment must withstand the elements. The QuCube A206C was developed precisely for this purpose. Its Enclosure made of robust ABS plastic is IP68 certified. This means absolute protection against dust and even against permanent submersion in water. In combination with the extreme operating temperature range of -40°C to 80°C, you can rely on your connection to remain stable, no matter what the weather has in store for you.
One Unit, One Cable: The Ingenious All-in-One Installation
Forget complicated installations with a separate router, multiple Antennas, and countless cables. With the QuCube A206C, you install just a single, compact unit. Your Teltonika router is elegantly powered via Power over Ethernet (PoE) through the Network Cable. This means you only need to run a single Cable to the installation site. This not only saves time and nerves but also ensures a clean and professional installation.
Future-Proof Thanks to Multi-Band Antennas
Even if you are currently using a 4G/4G router like the RUT206, the QuCube A206C is already prepared for the future. The integrated cellular Antennas cover an extremely wide frequency spectrum and already support all important 5G bands. So, if you later switch to a compatible 5G model from Teltonika, your weatherproof 5G Antenna system is already ready for use. An investment that pays off in the long run.
Strengths & Notes at a Glance
- Pro: Eliminates signal loss by integrating the router and Antenna.
- Pro: Extremely robust IP68 Enclosure protects against water, dust, and extreme temperatures.
- Pro: Simplified installation due to all-in-one design and PoE capability.
- Pro: Compact and inconspicuous design compared to classic antenna setups.
- Note: Only compatible with Teltonika RUT202, RUT206, RUT276, and RUT286.
- Note: Requires one of the mentioned Teltonika routers, which is not included in the scope of delivery.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuCube A206C |
| Manufacturer Part Number (MPN): | A206C |
| EAN: | 5905868603774 |
| Product Type: | Integrated Antenna System in Outdoor Enclosure |
| Compatibility: | Teltonika RUT202, RUT206, RUT276, RUT286 |
| 5G/4G Antenna Specifications | |
| Frequency Range 1: | 617 - 960 MHz |
| Frequency Range 2: | 1.7 - 2.7 GHz |
| Frequency Range 3: | 3.3 - 3.8 GHz |
| Frequency Range 4: | 4.2 - 6.0 GHz |
| Antenna Gain (617-960 MHz): | 2 dBi |
| Antenna Gain (1.7-2.7 GHz): | 3 dBi |
| Antenna Gain (3.3-3.8 GHz): | 3 dBi |
| Antenna Gain (4.2-6.0 GHz): | 4 dBi |
| Supported 4G Bands: | 1-5, 7-10, 12-14, 17-20, 22, 25-30, 33-44, 46-49, 52, 53, 65-69, 71, 85, 103, 106 |
| Supported 5G Bands: | n1-n3, n5, n7, n8, n12-n14, n18, n20, n25, n26, n28-n30, n34, n38-n41, n46-n48, n53, n65-n67, n71, n77-n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| VSWR: | <1.20, max <2.50 |
| Radiation Pattern: | 360°/35° ±5° (Omni-directional) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| WiFi Antenna Specifications | |
| Frequency Range 1: | 2.4 - 2.5 GHz |
| Frequency Range 2: | 5.0 - 7.2 GHz |
| Antenna Gain (2.4 GHz): | 2 dBi |
| Antenna Gain (5.0-7.2 GHz): | 5 dBi |
| VSWR: | < 2.50 |
| Radiation Pattern: | 360°/25° (Omni-directional) |
| Polarization: | Vertical |
| Impedance: | 50 Ω |
| DC Ground: | Yes |
| Mechanical & Physical Specifications | |
| Enclosure Material: | ABS Plastic |
| Protection Class: | IP68 |
| External Dimensions: | 160 x 160 x 155 mm |
| Weight: | approx. 1.5 kg |
| Operating Temperature: | -40°C to 80°C |
| Connectors (internal): | Specific connectors for Teltonika Router (SMA) |
| Connector (external): | Sealed QuRJ45 socket |
| Mounting Type: | Wall or Pole Mount |
Scope of Delivery
| 1 x QuWireless QuCube A206C |
| 1 x Mounting kit made of galvanized steel |
Frequently Asked Questions (FAQ)
Do you need a separate device to operate the QuCube A206C?
Yes, absolutely! The QuCube is a highly specialized antenna enclosure. You will definitely need a compatible Teltonika Router (RUT202, RUT206, RUT276, or RUT286), which you install directly into the enclosure. Without this router, your QuCube will not function.
How is the router inside your QuCube powered?
It's simple: Power is usually supplied via Power over Ethernet (PoE). This means you only need to run a single Network cable to the QuCube. This cable carries both data and power for your router. This saves you the need for an extra outdoor power outlet.
Is the antenna also suitable for 5G reception, even though my Teltonika router only supports 4G/LTE?
Absolutely! The Antennas in the QuCube are already designed for the latest 5G frequencies. This makes your installation incredibly future-proof. If you later swap your 4G router for a compatible 5G model, your antenna system will be immediately ready for full 5G power.
Can I transmit my WiFi signal over a long distance with the QuCube?
The QuCube excels at maximizing your router's cellular reception (4G/5G). The built-in WiFi Antennas are designed as omni-directional antennas and are perfect for establishing a stable, local WiFi Network around the QuCube – for example, on your boat, in your camper, or on your company premises. It is not intended for a WiFi Bridge over several kilometers.
What exactly does the IP68 protection class mean for my application?
IP68 is like a suit of armor for your technology. The '6' means the enclosure is completely dust-tight. The '8' guarantees protection against continuous immersion in water. For you, this means: whether it's heavy rain, desert dust, or a snowstorm – your router inside is perfectly protected and will reliably provide you with the best network.
Is the installation complicated, or can I do it myself?
If you're reasonably handy, the installation is quite manageable. We provide a sturdy bracket for wall or mast mounting right in the box. Installing the router into the enclosure is made super easy by the clever all-in-one design.
