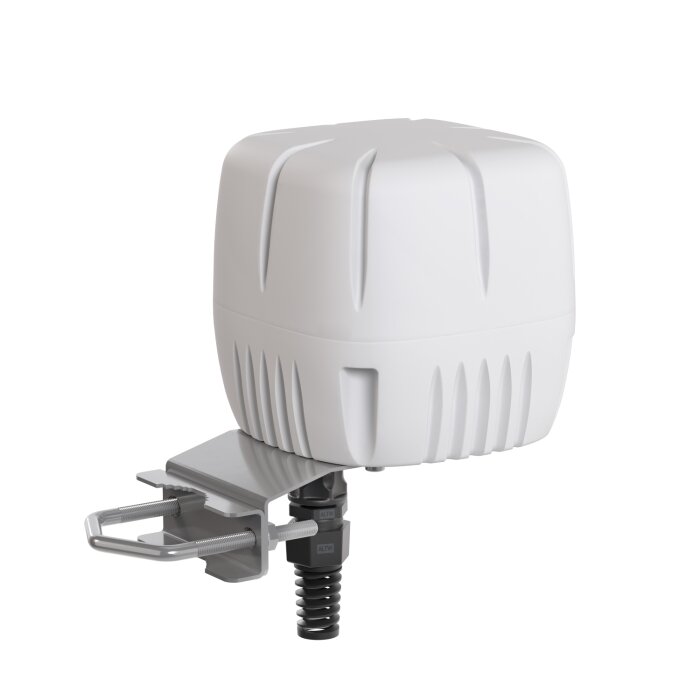

Your Teltonika Router, but unstoppable: The QuCube A240C Outdoor Upgrade
You know the problem: your Teltonika Router performs well, but struggles outdoors, on a vehicle, or in a harsh industrial environment. This is exactly where the QuWireless QuCube A240C comes in. It's not just an ordinary Antenna, but a well-thought-out all-in-one solution that transforms your Teltonika 4G / 5G Routers into a high-performance and extremely robust Outdoor Antennas unit. Forget complicated setups with multiple Antennas and long, attenuation-prone Antenna Cables. With the QuCube, you install your router directly in the Enclosure, connect it to the integrated high-performance Antennas, and simultaneously protect it with IP68 protection class against the harshest conditions.
Zero Cable Loss for Maximum Performance
The decisive advantage of this all-in-one 5G-ready Antenna for industrial routers lies in the details: the Antenna Cables between the integrated Antennas and your router are only a few centimeters long. This means that the signal loss (attenuation) that inevitably occurs with 5 or 10-meter long external cables is practically eliminated. The result is a noticeably stronger signal, higher download and upload rates, and a more stable Network connection – exactly where you need it most. This way, you can improve your Teltonika Router's signal without compromising on performance.
Built for Eternity and Ready for the Future
The robust housing made of ABS and aluminum withstands temperatures from -40°C to 80°C and is completely sealed against dust and water. But the inner values are also impressive: the Antenna technology is already designed for the next generation of connectivity. It covers all important 5G Antennas frequencies and even the 6 GHz band for Wi-Fi 6E. This way, you invest today in a solution that can unleash its full potential with future router models. Easy mast or wall mounting and smart PoE Injectors / Power Supplies via a single Ethernet Cable make installation a breeze, whether for an IP68 MIMO Antenna for Yacht / Camper / Motorhome or for stationary industrial applications.
Strengths & Notes at a Glance
- Pro: Maximum signal integrity and performance through minimal cable lengths and eliminated attenuation.
- Pro: Extremely robust IP68 Enclosure for the most demanding environments (dust, water, extreme temperatures).
- Pro: Future-proof Antennas that already cover 5G and Wi-Fi 6E frequency bands.
- Pro: Simplified installation and clean appearance through all-in-one design and PoE Injectors / Power Supplies.
- Note: The compatible Teltonika RUT2XX series router is not included and must be purchased separately.
- Note: The full potential of the Antennas (5G, Wi-Fi 6E) is limited by the capabilities of currently compatible 4G Routers.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuCube A240C |
| EAN / GTIN: | 5905868603767 |
| HAN / MPN: | A240C |
| Product Type: | All-in-One Antenna Enclosure |
| Country of Manufacture: | Europe |
| Compatibility | |
| Specifically designed for: | Teltonika RUT2xx Series |
| Compatible Models: | RUT200, RUT230, RUT240, RUT241, RUT260, RUT281 |
| Mechanical Specifications | |
| Housing Material: | ABS, Aluminum, PTFE |
| Protection Class: | IP68 (dustproof, protection against continuous submersion) |
| Dimensions (Housing): | 160 x 160 x 155 mm |
| Weight: | 1.5 kg |
| Operating Temperature: | -40°C to 80°C |
| Mounting: | Mast or Wall Mounting (Mounting Kit included) |
| Power Supply: | Via Power over Ethernet (PoE Injectors / Power Supplies) of the router (PoE Injector not included) |
| External Connection: | 1x RJ45 |
| Integrated 5G/4G Mobile Antenna | |
| Antenna Type: | 2x2 MIMO Omnidirectional (Omni-directional Antennas) |
| Frequency & Gain (617-960 MHz): | 2 dBi |
| Frequency & Gain (1700-2700 MHz): | 3 dBi |
| Frequency & Gain (3300-6000 MHz): | 4 dBi |
| Polarization: | Vertical |
| Radiation Pattern (Horizontal): | 360° |
| Radiation Pattern (Vertical): | 35° ±5° |
| VSWR: | <1.20 (max. <2.50) |
| Impedance: | 50 Ω |
| Internal Connections: | 2x SMA |
| Supported 4G Bands: | 1-5, 7-10, 12-14, 17-20, 22, 25-30, 33-44, 46-49, 52, 53, 65-69, 71, 85, 103, 106 |
| Supported 5G Bands: | n1-n3, n5, n7, n8, n12-n14, n18, n20, n25, n26, n28-n30, n34, n38-n41, n46-n48, n53, n65-n67, n71, n77-n86, n89, n90, n95, n97, n98, n100, n101, n256 |
| Integrated Wi-Fi Antenna | |
| Antenna Type: | Omnidirectional (Omni-directional Antennas) |
| Technology: | Tri-Band (2.4/5/6 GHz), Wi-Fi 6E ready |
| Frequency & Gain (2.4-2.5 GHz): | 4 dBi |
| Frequency & Gain (5.1-6.0 GHz): | 6 dBi |
| Polarization: | Vertical |
| Radiation Pattern (Horizontal): | 360° |
| Radiation Pattern (Vertical): | 35° ±5° |
| VSWR: | <1.70 (max. <2.00) |
| Impedance: | 50 Ω |
| Internal Connection: | 1x RP-SMA |
| Other Integrated Antennas | |
| GPS Antenna: | Yes, integrated (Connection: 1x SMA) |
| Bluetooth Antenna: | Yes, integrated (Connection: 1x SMA) |
Scope of Delivery
| 1 x QuWireless QuCube A240C Antenna Enclosure |
| 1 x Mast/Wall Mounting Kit (Antenna Mounting Accessories) |
Frequently Asked Questions (FAQ)
Is the Teltonika Router included with the QuCube A240C?
No, the QuCube A240C is an Antenna solution with a dedicated installation slot. The compatible Teltonika Router (e.g., RUT241, RUT260) must be purchased separately. We offer a range of Teltonika LTE / 5G Routers.
Can I establish a 5G connection with the QuCube A240C and a RUT241?
No. The Antenna itself supports 5G Antennas / Outdoor Antennas, but the Teltonika RUT241 is a 4G Router. The type of mobile connection is always determined by the Teltonika Router. However, with this Antenna, you are equipped for a future Router upgrade to 5G.
How are the Antenna and the Router installed within it powered?
Power is supplied via Power over Ethernet (PoE). A single Ethernet Cable provides both power and data to the Router installed in the Enclosure. A PoE Injector / Power Supplies or a PoE-enabled Ethernet Switch is required for this and is not included.
Do I need to align the Antenna with a mobile cell tower?
No, the QuCube A240C is equipped with omni-directional Antennas. This means it receives and transmits signals in a 360-degree radius and does not need to be specifically aligned, which simplifies the installation of your Network.
Is the Enclosure truly completely waterproof?
Yes, the Enclosure is IP68 certified. This is a very high protection class that ensures full protection against dust and even against continuous immersion in water under the manufacturer's specified conditions.
What is the advantage of integrating the Router into the Antenna Enclosure?
The main advantage is the minimization of signal loss, as the connection cables between the Antenna and the Router are extremely short. This leads to better reception and higher data rates. It also simplifies outdoor Mounting Systems and optimally protects the Router from weather influences.
