Your TRB140 in a High-Performance Protective Bunker
No more compromises with your IoT project. The QuMax A140M-A is more than just an Antenna – it's a perfectly conceived complete solution. By installing your Teltonika TRB140 Router directly in the weatherproof Enclosure, you eliminate the biggest weakness of many setups: long, lossy Antenna Cables. The result is maximum signal integrity, noticeable in higher data rates and a significantly more stable connection. This All-in-One Antenna with Outdoor Router Enclosure is the professional choice for all stationary applications where reliability is paramount.
Designed for Harsh Environments and Easy Mounting

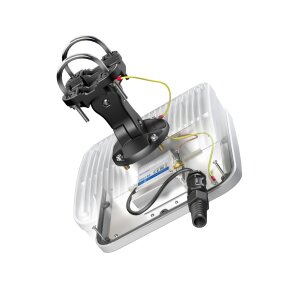

Whether on an exposed mast, an industrial hall, or near the coast – the IP67-certified Enclosure made of ABS, aluminum, and fiberglass uncompromisingly protects your valuable Router from dust, rain, and extreme temperatures. Installation becomes child's play with the support of Passive Power over Ethernet (PoE). You only need a single Network Cable to power the Router and integrate it into the Network simultaneously. This gives you the freedom to mount the Antenna exactly where reception is best – even if the nearest power outlet is up to 50 meters away.
Precision for Performance: The Directional Antenna for Long Distances
Unlike Omni-Directional Antennas, the QuMax A140M-A bundles transmit and receive power in a specific direction. This makes it the ideal Directional Antenna with PoE for poor reception in rural areas or shielded locations. Precise alignment with the nearest mobile Network mast is crucial but rewarded with superior connection quality. If you need to establish a stable connection over long distances, this Antenna is the right choice.
Strengths & Notes at a Glance
- Pro: Drastically reduced signal loss by eliminating external Antenna Cables.
- Pro: Extremely robust and weatherproof protection (IP67) for the Router used.
- Pro: Simplified Cabling and flexible Mounting thanks to Passive PoE.
- Pro: High Antenna gain (up to 6 dBi) for stable connections over long distances.
- Note: A Teltonika TRB140 (or compatible model) is absolutely required for operation and not included.
- Note: A passive PoE Injector is additionally required for Power Supply.
- Note: As a Directional Antenna, it must be precisely aligned with a mobile Network mast for optimal performance.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuMax A140M-A |
| EAN: | 5907772035238 |
| HAN/MPN: | A140M-A |
| Product Type: | 4G Directional Antenna with integrated Router Enclosure |
| Frequency Range 1: | 694 - 960 MHz |
| Gain Range 1: | 4 dBi |
| Frequency Range 2: | 1700 - 2200 MHz |
| Gain Range 2: | 5 dBi |
| Frequency Range 3: | 2200 - 2700 MHz |
| Gain Range 3: | 6 dBi |
| Supported Bands: | 4G, 5G NR (full list see datasheet) |
| Polarization: | Vertical |
| Beamwidth: | 90°/90° ±30° |
| Impedance: | 50 Ω |
| VSWR: | <1.30 (max. <1.80) |
| Front-to-Back Ratio: | >8 dB |
| Protection Class: | IP67 |
| Materials: | ABS, Aluminium, PTFE, Fiberglass |
| Color: | White |
| Dimensions (W x H x D): | 272 x 276 x 96 mm |
| Weight: | 1.8 kg |
| Operating Temperature: | -40°C to 75°C |
| Ports in Enclosure: | RJ45 (waterproof) |
| Compatibility: | Teltonika TRB140, TRB141, TRB142, TRB143, TRB145 |
| Power Supply (of the Router): | Passive Power over Ethernet (PoE) |
| Note on Power Supply: | Compatible with TRB140 from Revision 4. PoE Injector not included. |
| Mounting: | Mast or Wall Mounting |
Scope of Delivery
| 1 x QuWireless QuMax A140M-A Antenna with integrated Enclosure |
| 1 x Mounting Kit for Mast or Wall Mounting |
Frequently Asked Questions (FAQ)
Is the Teltonika TRB140 Router included?
No, the Teltonika TRB140 Router is not included with the QuMax Antenna and must be purchased separately. The product is an Enclosure with an integrated Antenna, designed to house the Teltonika LTE / 5G Routers.
What is the main advantage of integrating the Router directly into the Antenna?
The decisive advantage is the minimization of signal loss. Short, direct connections from the Antenna to the Router inside the Enclosure prevent the attenuation that occurs with long external Antenna Cables. This leads to a stronger signal and a higher data transfer rate for your Network.
Do I need a separate power supply for the Antenna?
The Antenna itself is passive and does not require power. However, the Router installed within it is powered via Passive Power over Ethernet (PoE). You will need a PoE Injector / Power Supplies, which is not included.
Is the Antenna suitable for mobile use (e.g., on a motorhome)?
Although robust, as a directional Antenna, it is primarily designed for stationary installations where it can be fixedly aimed at a cellular mast. For mobile use, such as on a Yacht / Camper / Motorhome, an Omni-Directional Antenna would be more suitable as a Vehicle Antennas - 4G, 5G, WiFi.
Can I use other Routers than the Teltonika TRB140 in the Enclosure?
No, the Enclosure and internal connectors are specifically designed for the dimensions and form factor of the Teltonika TRB140, as well as the Teltonika LTE / 5G Routers models TRB141, TRB142, TRB143, and TRB145. Other Router models will not fit.
What does protection class IP67 mean?
IP67 means that the Enclosure is completely dust-tight and protected against temporary immersion in water. It is therefore ideally suited for outdoor use in any weather.
