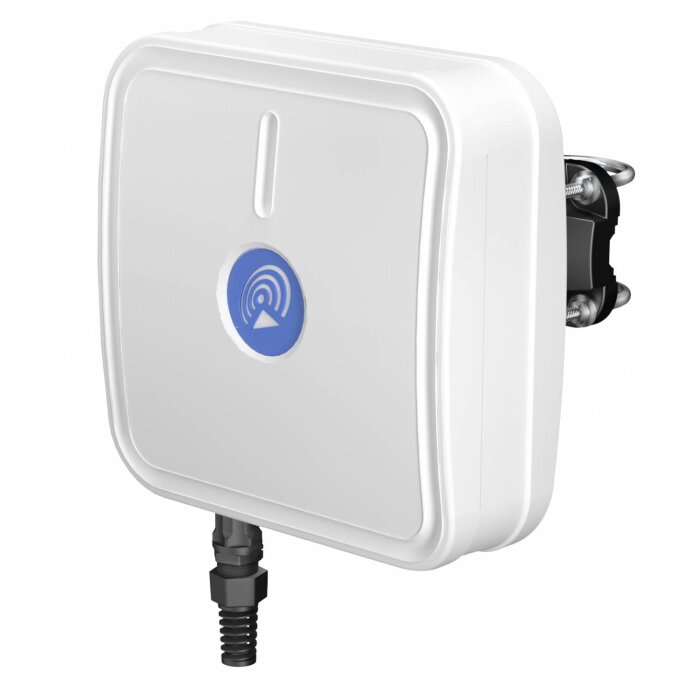

Maximum Performance: The Zero-Loss 4x4 MIMO Directional Antenna
No more weak signals and throttled speeds. The QuMax AX12M was developed to solve a central problem in outdoor installations: signal loss due to long Antenna cables. By inserting your Teltonika RUTX12 or RUTX14 Router directly into the weatherproof Enclosure, you connect it via ultra-short Coaxial Pigtails directly to the powerful 4x4 MIMO directional Antenna for poor reception. This “Zero-Loss” principle ensures that the full transmission and reception power of your router is utilized without attenuation. The result is a noticeably more stable connection, higher data rates, and a more reliable Network connection, even in demanding locations.
Built for Extremes: IP67 Protection and Passive PoE
The QuMax AX12M is more than just an antenna – it is a professional outdoor complete solution. The Enclosure made of ABS, aluminum, and fiberglass is IP67 certified, making it absolutely dustproof and protected against temporary immersion. Whether at icy -40 °C or scorching +75 °C, your valuable router remains safe and fully functional. Installation is ingeniously simplified by the integrated PoE Antenna Enclosure for Teltonika Routers. A single Ethernet Cable supplies power to the router (via Passive PoE) and establishes the data connection. This makes mounting on masts, walls, or on vehicles as uncomplicated as ever before.
The Perfect Symbiosis for Teltonika RUTX12 & RUTX14
This system is not a universal enclosure, but a custom-made accessory for Network Routers of the Teltonika RUTX series. It is precisely matched to the dimensions and connections of the RUTX12 and RUTX14 models. The integrated All-in-One Antenna Solution for RUTX12 Industrial applications bundles all necessary Antennas: 4x4 MIMO 4G for the router's two cellular modules, two omni-directional WiFi Antennas for a local Network, a GPS antenna for location services, and a Bluetooth antenna. This perfect alignment makes the AX12M the first choice for system integrators and demanding users in areas such as video surveillance, mobile hotspots, or for connecting remote locations.
Strengths & Notes at a Glance
- Pro: Maximum signal strength by eliminating external Antenna Cables (Zero-Loss principle).
- Pro: Extremely robust and weatherproof IP67 enclosure for use under the harshest conditions.
- Pro: Complete All-in-One solution with 4G, WiFi, GPS, and Bluetooth in one enclosure.
- Pro: Simplified installation and Power Supply via a single network cable thanks to Passive PoE.
- Note: Only compatible with Teltonika RUTX12 and RUTX14 routers.
- Note: The 4G directional antenna requires precise alignment with the nearest cellular mast for optimal performance.
Specifications & Features
| Manufacturer: | QuWireless |
| Model: | QuMax AX12M |
| HAN / MPN: | AX12M |
| EAN: | 5907772035443 |
| Product Type: | All-in-One Multiband Antenna System with Outdoor Enclosure |
| Compatibility: | Teltonika RUTX12, Teltonika RUTX14 |
| Integrated Antennas: | 1x 4x4 MIMO 4G, 2x WiFi, 1x GPS, 1x Bluetooth |
| 4G Antenna Type: | 4x4 MIMO Directional Antenna |
| 4G Frequency & Gain (694-960 MHz): | 4 dBi |
| 4G Frequency & Gain (1700-2200 MHz): | 5 dBi |
| 4G Frequency & Gain (2200-2700 MHz): | 6 dBi |
| 4G Polarization: | Vertical |
| 4G Beamwidth: | 90°/90° ±30° |
| 4G Impedance: | 50 Ω |
| 4G VSWR: | <1.30, max <1.80 |
| 4G Connectors (internal): | 4x SMA for Router Connection |
| WiFi Antenna Type: | 2x Dual-Band Omni-Directional Antenna |
| WiFi Frequency & Gain (2.4-2.5 GHz): | 6 dBi |
| WiFi Frequency & Gain (4.7-6.0 GHz): | 7 dBi |
| WiFi Polarization: | Vertical |
| WiFi Beamwidth: | 360°/25° ±5° |
| WiFi Impedance: | 50 Ω |
| WiFi VSWR: | <1.70, max <2.00 |
| GPS Antenna: | Integrated |
| Bluetooth Antenna: | Integrated |
| Power Supply: | Passive Power over Ethernet (PoE) |
| External Connection: | 1x RJ45 Socket |
| Enclosure Material: | ABS, Aluminum, Polycarbonate, Fiberglass |
| Protection Class: | IP67 |
| Operating Temperature: | -40 °C to +75 °C |
| Dimensions (W x H x D): | 272 x 276 x 96 mm |
| Weight: | 1.8 kg |
Scope of Delivery
| 1 x QuWireless QuMax AX12M Enclosure with Integrated Antennas |
| 1 x Mounting System |
| Integrated Pigtail Cables for Router Connection |
Frequently Asked Questions (FAQ)
What components are included with the QuMax AX12M?
The scope of delivery includes the all-in-one enclosure with integrated antennas (4G, WiFi, GPS, Bluetooth), pre-installed pigtail cables for connecting the router, and a Mounting System. The Teltonika Router (RUTX12/RUTX14) itself is not included and must be purchased separately. This setup is ideal for those looking for robust Teltonika LTE / 5G Routers solutions.
Is the QuMax AX12M antenna suitable for 5G reception?
The antenna covers frequency ranges also used for some 5G bands. However, its main specification is geared towards 4G/LTE. It can receive 5G signals in the supported frequency bands but is not a dedicated high-band 5G Antennas / Outdoor Antennas. For specific 5G needs, dedicated 5G Antennas are recommended.
How is the router powered internally?
The router is powered via Passive Power over Ethernet (PoE). A PoE Injector / Power Supplies feeds voltage into the Ethernet Cables leading to the AX12M enclosure. Inside, the router then receives power and data via the RJ45 port, ensuring a reliable Network connection.
Can I send my WiFi signal over long distances with this antenna?
No, the integrated WiFi Antennas are omni-directional and serve to provide a local WiFi Network around the mounting location. The primary directional focus is on the 4G antenna for mobile reception, not for long-range WiFi Bridge Sets.
For which applications is the QuMax AX12M ideal?
It is perfect for stationary and mobile installations requiring a stable internet connection, for example, on construction sites, for video surveillance with IP Cameras, in remote buildings, or on Yachts / Camper / Motorhome. It's a versatile solution for Complete Sets WiFi, 4G, 5G.
What does 4x4 MIMO mean for the 4G antenna?
4x4 MIMO means that the 4G / LTE Outdoor Antennas can send and receive four separate data streams simultaneously. This significantly increases the data rate and connection stability when combined with a compatible router like the Teltonika RUTX12/RUTX14, enhancing overall Network performance.
