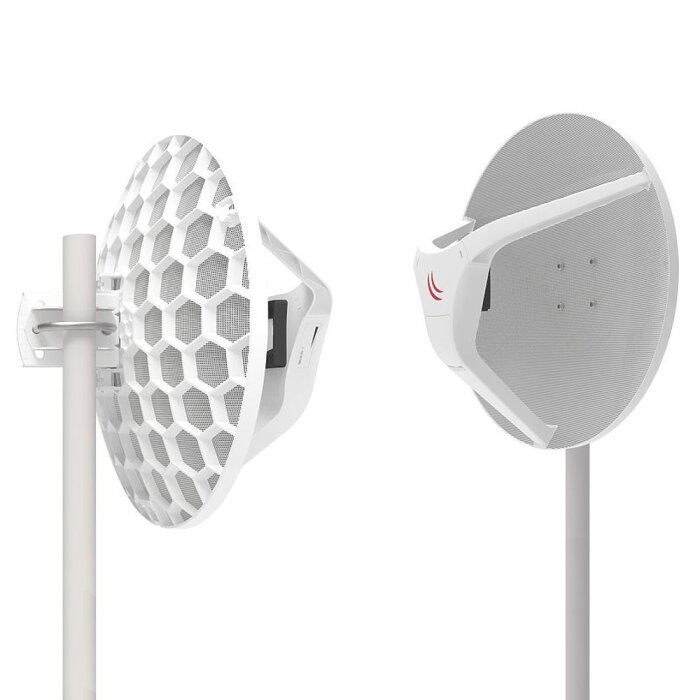

Your Fiber-Optic Alternative: The MikroTik 60GHz Bridge Kit
Imagine being able to connect two buildings with the speed of fiber optics, but without all the hassle, costs, and permits for extensive Cabling work. That's exactly what the MikroTik Wireless Wire Dish Kit enables you to do. It's the perfect solution for connecting campus Networks, company locations, or your home with an outbuilding. You get fiber-optic performance without digging, packaged in an easy-to-install set that is considered one of the best WiFi Bridge Sets on the market.
Plug & Play: Connect Buildings Wirelessly in Record Time
The biggest advantage of this kit is the enormous time saving. MikroTik has done all the work for you: The two Wireless Wire Dish units are already factory-paired and pre-configured. Your task? Mount the robust Mounting Systems, precisely align the Antennas using the clever alignment aid, and connect the included PoE Injectors / Power Supplies. No complex Network configuration is needed to establish the connection. Building a high-performance directional radio link has never been easier.
Interference-Free Performance in the Exclusive 60 GHz Band
While countless Networks compete for scarce frequencies in the 2.4 and 5 GHz bands, with this kit, you operate in the almost empty 60 GHz spectrum. The result is an extremely stable and interference-free connection, perfectly suited for business-critical applications. This frequency also has the advantage that it is attenuated by oxygen in the atmosphere, which naturally limits the range and additionally protects your data transmission from prying eyes from a distance. These 60 GHz Components are the first choice for professionals.
Designed for Professionals: Robustness and Range up to 1.5 km
The RBLHGG-60ad Kit is designed for demanding outdoor use. With IP55 protection class, it is protected against dust and jet water and operates reliably in a temperature range of -40°C to +70°C. Powered by the proven MikroTik RouterOS and a powerful quad-core processor, this system offers the reliability you expect from professional MikroTik Wireless Systems. The combination of high Antenna gain and advanced technology enables stable connections over distances of up to 1.5 kilometers and more.
Strengths & Notes at a Glance
- Pro: Offers fiber-optic-like speeds of up to 2 Gbit/s without expensive excavation work.
- Pro: Operates in the interference-free 60 GHz band, ideal for dense urban or industrial environments, utilizing 60 GHz Components.
- Pro: Extremely simple Plug-and-Play installation thanks to factory-paired and pre-configured units, a hallmark of MikroTik.
- Pro: Excellent price-performance ratio compared to alternative high-speed solutions.
- Note: The 60 GHz frequency is susceptible to 'Rain Fade'. In very heavy rain or fog, the connection may be temporarily affected.
- Note: An absolutely clear line-of-sight (Line-of-Sight) between the two units is mandatory.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | RBLHGG-60ad Kit (Wireless Wire Dish) |
| EAN: | 4251028603094 |
| Product Code (Kit): | RBLHGG-60adkit |
| Product Code (Single Unit): | RBLHGG-60ad |
| Classification: | Pre-configured Point-to-Point (PtP) Bridge-Link System |
| CPU: | Qualcomm IPQ-4019 |
| CPU Architecture: | ARM 32bit |
| CPU Cores: | 4 |
| CPU Frequency: | 448-896 MHz (automatic) |
| Wireless Chip: | Qualcomm QCA6335 |
| RAM: | 256 MB |
| Storage: | 16 MB FLASH |
| Operating System: | MikroTik RouterOS |
| RouterOS License Level: | 3 |
| Frequency Band: | 60 GHz (V-Band) |
| WiFi Standard: | IEEE 802.11ad |
| Antenna Gain: | ~42 dBi |
| Beamwidth: | approx. 3° |
| Encryption: | AES |
| Maximum Data Rate: | Up to 2 Gbit/s (aggregated), 1 Gbit/s (Full-Duplex) |
| Range (PtP): | Up to 1500 m and more |
| Range (PtMP as CPE): | Up to 800 m |
| Ports: | 1x 10/100/1000 Gigabit Ethernet Port |
| Power Supply: | Power over Ethernet (PoE) |
| PoE Standard: | 802.3af/at and passive PoE |
| PoE Input Voltage: | 12 - 57 V |
| Max. Power Consumption: | 5 W per unit |
| Dimensions (per unit): | Ø 391 x 222 mm |
| IP Protection Class: | IP55 |
| Operating Temperature: | -40°C to +70°C |
| MTBF: | approx. 200,000 hours at 25°C |
| Certifications: | CE, FCC, IC, EAC, ROHS |
Scope of Delivery
| 2 x RBLHGG-60ad Units (pre-configured) |

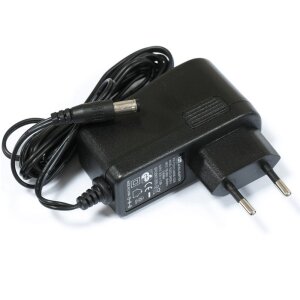

| 2 x 24V 0.38A Power Supplies |
| 2 x Gigabit PoE Injectors |

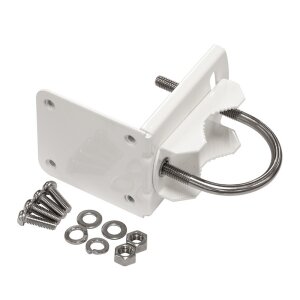

| 2 x LHG Mounts (precision brackets) |
| 2 x Aim Tools (alignment aids) |
Frequently Asked Questions (FAQ)
Do I have to configure the two Antennas myself?
No, the MikroTik RBLHGG-60ad Kit comes with two units that are already paired and pre-configured at the factory. For a simple point-to-point bridge, you only need to mount the devices using appropriate Mounting Systems, align them precisely with each other, and provide power to establish your Network.
How stable is the connection in bad weather like rain or snow?
The 60 GHz frequency is susceptible to "Rain Fade," meaning heavy rain, snow, or fog can attenuate the signal, impair performance, or temporarily interrupt the connection. For 99.9% availability, a backup radio link on a lower frequency (e.g., 5 GHz) should be considered, utilizing 5 GHz Components and suitable Antennas for a resilient Network.
Can I bridge a distance of over 2 km with this kit?
The manufacturer's specified maximum range is approximately 1.5 km. While slightly greater distances might be achievable under perfect, dry climatic conditions, stability and maximum throughput rapidly decrease with increasing distance. This kit is not reliably suitable for distances over 1.5 km for a stable Network connection.
What does "aggregated data rate of 2 Gbit/s" mean?
An aggregated data rate of 2 Gbit/s means that the total bandwidth available simultaneously in both directions (sending and receiving) is 2 Gbit/s. In practice, this corresponds to a full-duplex connection of 1 Gbit/s – so you can simultaneously send 1 Gbit/s and receive 1 Gbit/s, similar to a high-performance Ethernet Switch in your Network.
Do I need a special license to use the 60 GHz band?
No, the 60 GHz band is a license-free frequency band in most countries, including the EU and the USA. However, you must comply with local regulations regarding maximum transmission power, which the device automatically does through country selection in the software, ensuring compliance for your 60 GHz Components in the Network.
Is data transmission secure?
Yes, the wireless connection between the two devices is secured by default with strong AES encryption, protecting data transmission from eavesdropping and ensuring a secure Network, much like advanced WiFi Routers or WiFi Access Points.
