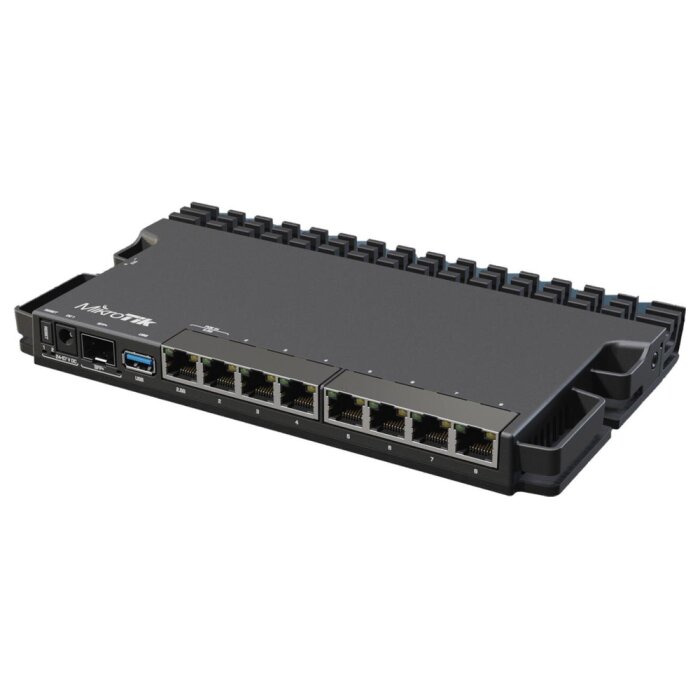

Your Network Upgrade: Multi-Gigabit Power for Your Homelab
The RB5009 is not just a Router – it's the new heart of your Network. Specifically designed for users who want more than standard. With its mix of 1G, 2.5G, and 10G ports, it offers you the perfect foundation for a future-proof homelab, a small office, or as the best Router for your fiber optic connection. Forget bottlenecks and get the most out of your internet connection and local Network.
Built for Eternity: Silent, Reliable, and Compact
Performance doesn't need loud fans. The entire casing of the RB5009 is a massive, passive heat sink. The result: absolute silence and enormous reliability, even under full load. The robust metal casing and the tested operating range from -40°C to +60°C make it a reliable companion for any environment. Thanks to its clever design, with the optional kit, you can even house four of these powerhouses in a single 19-Inch Rack height unit – efficiency in its purest form.
Maximum Flexibility: Connections and Power Supply Without Compromise
This Router adapts to your needs, not the other way around. The extreme flexibility in Power Supply is unique: Use the included power adapter, power it directly via PoE Injectors / Power Supplies (Power over Ethernet) through the first port, or integrate it into industrial circuits via the 2-pin terminal. This redundancy is invaluable. In addition to the Network ports, a USB 3.0 Port is also available, for example, to use a 4G Outdoor Antennas stick as a backup internet connection.
RouterOS: The Control Center for Network Professionals (and those who want to become one)
The heart of every MikroTik device is RouterOS – an incredibly powerful operating system. It offers you granular control over every aspect of your Network, from complex firewall rules to Quality of Service and secure VPN tunnels. Yes, the learning curve is steeper than with consumer devices, but the possibilities are limitless. The RB5009 is the perfect MikroTik Router to dive deep into the world of professional Network technology and expand your knowledge. For fiber optic connections, suitable SFP / SFP\+ Modules are crucial.
Strengths & Notes at a Glance
- Pro: Excellent price-performance ratio with 2.5G and 10G connections.
- Pro: High performance and stability thanks to Quad-Core CPU and passive cooling concept.
- Pro: Outstanding redundancy through three independent power inputs (DC, PoE Injectors / Power Supplies, terminal).
- Pro: Very compact and rack-mountable design (4 devices in 1U).
- Note: RouterOS has a steep learning curve and is complex for beginners without Network knowledge.
- Note: The device has no integrated WiFi; an external WiFi Access Point is required.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | RB5009UG+S+IN |
| EAN: | 4752224007148 |
| Product Code: | RB5009UG+S+IN |
| Product Classification: | Wired Multi-Gigabit Router |
| CPU Architecture: | ARM 64bit |
| CPU Model: | Marvell Armada 88F7040 |
| CPU Core Count: | 4 (Quad-Core) |
| CPU Clock Frequency: | 350 - 1400 MHz (automatic) |
| Switch-Chip Model: | Marvell Amethyst 88E6393 |
| RAM: | 1 GB DDR4 |
| Internal Storage: | 1 GB |
| Storage Type: | NAND |
| Hardware Acceleration: | IPsec |
| Gigabit Ethernet Ports (RJ45): | 7 x 10/100/1000 Mbit/s |
| Multi-Gigabit Ethernet Port (RJ45): | 1 x 2.5 Gbit/s (Port 1) |
| SFP+ Port: | 1 x 10G |
| USB Port: | 1 x USB 3.0 Type A |
| Maximum USB Power Output: | 1.5 A |
| Number of DC Inputs: | 3 (DC Barrel Jack, PoE-IN, 2-Pin Terminal) |
| Voltage Range (DC Barrel Jack): | 24-57 V |
| Voltage Range (2-Pin Terminal): | 24-57 V |
| PoE-In: | Yes, on Port 1 |
| PoE-In Standard: | 802.3af/at |
| Voltage Range (PoE-In): | 24-57 V |
| Maximum Power Consumption: | 20 W |
| Maximum Power Consumption (without peripherals): | 14 W |
| Cooling: | Passive (Casing as Heat Sink) |
| Tested Ambient Temperature: | -40°C to +60°C |
| Dimensions: | 220 x 125 x 22 mm |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License Level: | 5 |
| Configuration Options: | WebFig, WinBox, App, CLI, API |
| Standard IP Address: | 192.168.88.1 |
| Standard Login: | User: admin / no password |
| Certifications: | CE, EAC, ROHS, FCC, IC |
Scope of Delivery
| 1 x MikroTik RB5009UG+S+IN Router |
| 1 x 24V 1.5A Power Supply |
Frequently Asked Questions (FAQ)
Is the MikroTik RB5009UG+S+IN suitable for beginners?
Conditionally. While the basic configuration via the Quick-Set assistant is manageable, the full potential of RouterOS is aimed at advanced users and **Network** professionals. For beginners willing to learn, it is an excellent platform to delve deep into **Network** technology.
Can I build a **WiFi Network** with the RB5009?
Not directly. The RB5009 has no built-in WiFi. You need to connect one or more external **WiFi Access Points** to the **Ethernet Switch** ports of the **MikroTik Routers** to transmit a WiFi signal.
Which **SFP / SFP\+ Modules** are compatible with the RB5009?
**MikroTik** offers a wide range of compatible 10G and 1.25G **SFP / SFP\+ Modules**, including fiber optic modules and RJ45 copper modules. It is recommended to check the official **MikroTik** compatibility list.
How is the RB5009 **MikroTik Routers** powered?
The **MikroTik Routers** are very flexible and can be powered in three ways: via the included 24V power supply, via **PoE Injectors / Power Supplies** (Power over Ethernet) on the first **Ethernet Switch** port, or via a 2-pin terminal.
What does RouterOS License Level 5 mean for **MikroTik Routers**?
License Level 5 is an advanced license that unlocks more features, such as an unlimited number of VPN tunnels. This is more than sufficient for use in SMEs or demanding home **Network** setups.
Can I mount the RB5009 in a **19-Inch Racks**?
Yes, with the optionally available rackmount kit "K-79", up to four RB5009 devices can be mounted side-by-side in a single 1U height unit of a **19-Inch Racks**.
