Maximum Precision for Your Point-to-Point Link

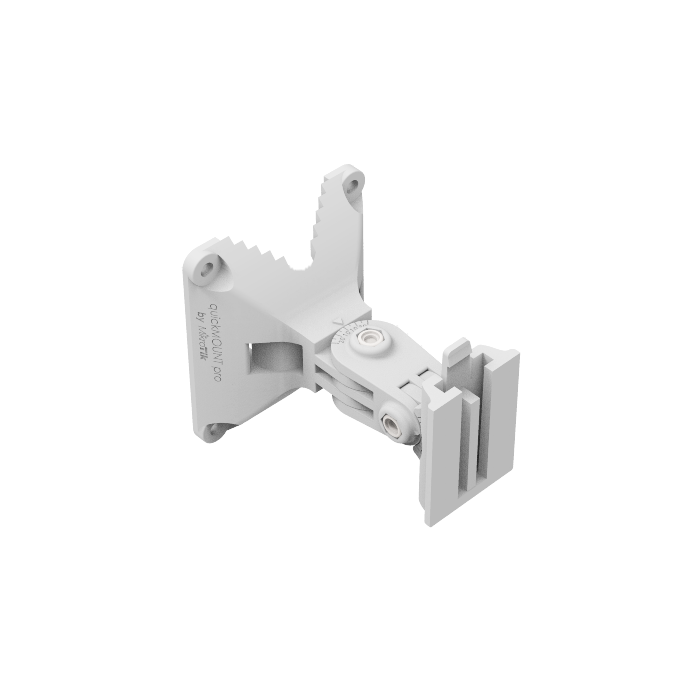

Do you want to get the most out of your wireless connection? Then precise Antenna alignment is crucial! The MikroTik quickMOUNT pro is your indispensable helper for perfectly positioning small point-to-point or sector Antennas such as the MikroTik SXT, OmniTIK, or BaseBox. Thanks to the impressive 140 degree swivel range in horizontal and vertical planes, combined with a precise degree scale, fine-tuning is effortlessly easy. This way, you achieve the best possible signal quality and throughput for your Network connections, whether between two buildings or for connecting remote locations.
Robustness Meets Adaptability: Your QMP Adapter for Every Environment
No matter whether you want to attach your WiFi Antenna mount to a building wall, a roof rafter, or a telecommunications mast – the MikroTik quickMOUNT pro is equipped for all eventualities. Made from the special anvilNITE material, this QMP adapter offers unsurpassed resistance to UV radiation and extreme temperatures from -40°C to +40°C. It serves as a versatile pole mount that also allows attachment to large masts (up to 65 mm diameter) by accommodating smaller mounting clamps. This ensures your outdoor mounting remains reliable and durable even under demanding weather conditions.
Easy Installation, Maximum Compatibility: Your SXT, OmniTIK & BaseBox Mount
Installing your Antennas should not be a headache. The MikroTik quickMOUNT pro makes it easy for you! As a flexible wall mount or pole mount, it can be quickly and easily attached. It is the perfect partner for a variety of MikroTik outdoor devices and WiFi Antennas. Whether you need an SXT mount, an OmniTIK mounting, or a BaseBox mount, this adapter provides the necessary stability and flexibility. Just note the maximum Antenna weight of 1.5 kg to ensure optimal performance. For LHG antennas, there is a special adapter, the QMP-LHG.
Your Questions, Our Answers: Everything About the MikroTik quickMOUNT pro
Do you still have open questions about the MikroTik quickMOUNT pro? We have the answers!
-
Question: Which antennas are compatible with the MikroTik quickMOUNT pro?
Answer: The MikroTik quickMOUNT pro is compatible with MikroTik SXT series, OmniTIK, BaseBox, and other antennas designed for pole mounting and with a maximum weight of 1.5 kg. -
Question: What swivel range does the MikroTik quickMOUNT pro offer for antenna alignment?
Answer: The quickMOUNT pro allows a swivel range of 140° in both horizontal and vertical planes, which enables precise antenna alignment. -
Question: What material is the MikroTik quickMOUNT pro made of?
Answer: The adapter is made of a special, very durable plastic composite material called anvilNITE™. -
Question: Can the MikroTik quickMOUNT pro be attached to a pole?
Answer: Yes, the quickMOUNT pro can be attached to a pole with a diameter of up to 65 mm and also serves as an adapter from large pole diameters to smaller antenna mounting clips. -
Question: How is the antenna precisely aligned with the quickMOUNT pro?
Answer: The quickMOUNT pro features an integrated degree scale that allows for perfect antenna alignment. -
Question: Is the MikroTik quickMOUNT pro also suitable for very large antennas?
Answer: No, the quickMOUNT pro is designed for small point-to-point and sector antennas and supports a maximum antenna weight of 1.5 kg. It is not suitable for larger antennas.
Strengths & Notes at a Glance
- Pro: Extremely flexible due to 140 degree swivel radius for optimal antenna alignment.
- Pro: Precise alignment thanks to integrated degree scale for angle determination.
- Pro: Highest weather resistance due to UV-resistant anvilNITE composite material.
- Pro: Versatile mounting options as a wall mount or pole mount (up to 65 mm).
- Pro: Compatible with a wide range of MikroTik outdoor devices such as SXT, OmniTIK, and BaseBox.
- Note: Observe the maximum carrying weight of 1.5 kg, which excludes use with larger or heavier antennas.
- Note: Not optimized for LHG antennas; for these, MikroTik offers a separate adapter (QMP-LHG).
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | quickMOUNT pro (QMP) |
| Product Type: | Wall Mount / Pole Mount |
| Mounting Type: | Wall mounting, Pole mounting |
| Compatible Devices: | MikroTik SXT series, OmniTIK, BaseBox, other pole-mountable antennas |
| Not Compatible (specific): | LHG antennas (separate adapter QMP-LHG required) |
| Maximum Antenna Weight: | 1.5 kg |
| Maximum Wind Load: | 100 N |
| Swivel Angle (horizontal): | 140° |
| Swivel Angle (vertical): | 140° |
| Special Alignment Feature: | Integrated degree scale |
| Material: | anvilNITE™ (special plastic composite material) |
| UV Resistance: | Yes |
| Tube Diameter (adapter): | 35 mm |
| Max. Tube Diameter (pole mounting): | 65 mm |
| Dimensions (L x W x H): | 95 x 88 x 112 mm |
| Mounting Hole Pattern: | 74 x 81 mm |
| Operating Temperature: | -40°C to +40°C |
| Application Area: | Outdoor |
| Color: | Black |
Scope of Delivery
| 1 x MikroTik quickMOUNT pro (QMP) adapter |
| 1 x Mounting material (screws & anchors) |
Frequently Asked Questions (FAQ)
Which antennas are compatible with the MikroTik quickMOUNT pro?
Your MikroTik quickMOUNT pro is compatible with MikroTik SXT series, OmniTIK, BaseBox, and other antennas designed for mast mounting and having a maximum weight of 1.5 kg.
What swivel range does the MikroTik quickMOUNT pro offer for antenna alignment?
Your quickMOUNT pro allows for a swivel range of 140° in both the horizontal and vertical planes, enabling precise alignment of your antenna.
What material is the MikroTik quickMOUNT pro made of?
Your adapter is made of a special, highly durable plastic composite material called anvilNITE™.
Can the MikroTik quickMOUNT pro be attached to a mast?
Yes, you can attach your quickMOUNT pro to a mast with a diameter of up to 65 mm. It also serves as an adapter from large mast diameters to smaller antenna mounting clips.
How is the antenna precisely aligned with the quickMOUNT pro?
Your quickMOUNT pro features an integrated degree scale, allowing you to perfectly adjust your antenna alignment.
Is the MikroTik quickMOUNT pro also suitable for very large antennas?
No, your quickMOUNT pro is designed for small point-to-point and sector antennas and supports a maximum antenna weight of 1.5 kg. It is not suitable for larger antennas.
