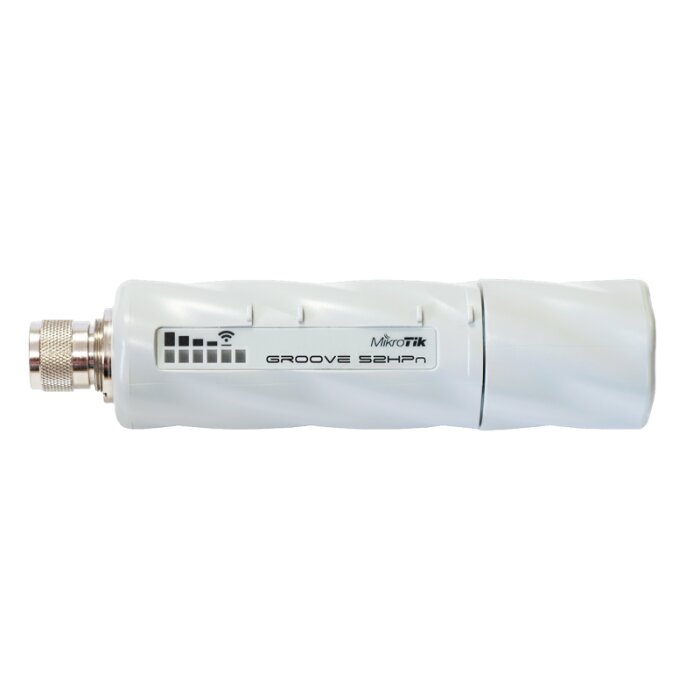

Your WiFi Receiver for any Weather
The MikroTik Groove 52HPn is no ordinary WiFi device. It is your specialist for outdoor use when it comes to stably receiving a remote WiFi signal or building a rock-solid point-to-point connection. The extremely robust casing protects the high-quality technology from rain, snow, and extreme temperatures. Whether you want to bring your main house's internet to the garage or connect two buildings over several hundred meters – this stable Outdoor WiFi Client is the answer. It is one of the most reliable devices among MikroTik Wireless Systems and ensures a permanently stable connection.
Maximum Performance through Clever Design
The core of the Groove 52HPn is the combination of high transmit power and a highly sensitive receiver. With up to 27 dBm (approx. 500 mW), it can communicate over long distances. A decisive advantage is the integrated N-connector. You can screw suitable WiFi Antennas directly onto it, without lossy adapter cables. This maximizes signal quality and thus the performance of your connection. Power is supplied simply via the Network cable using the included PoE Injectors / Power Supplies, which greatly simplifies installation on masts or exterior walls.
RouterOS: You're in Control
While many CPEs only allow basic settings, the Groove 52HPn with MikroTik RouterOS gives you full control. Even with the Level 3 license installed here, which specializes the device in client and bridge functions, extensive configuration options are available to you. Define precise Firewall rules, prioritize data traffic with Quality of Service (QoS), or use the proprietary Nv2 protocol to further optimize the throughput and stability of your long-range WiFi Bridge. This is professional technology that offers you absolute flexibility.
Important Note: Specialist, not All-rounder
It is important to understand what the Groove 52HPn was designed for. Due to the RouterOS Level 3 license, it is a pure specialist for signal reception (Client/CPE) or for a single point-to-point connection (Bridge). It cannot be operated as an Access Point to supply multiple end devices such as smartphones or laptops simultaneously. If you are looking for an Outdoor Access Point, the sister model 'GrooveA' with a Level 4 license is the right choice. This conscious focus makes the 52HPn unbeatable in its specialized field.
Strengths & Notes at a Glance
- Pro: Extremely robust and weatherproof casing for permanent outdoor use (-40°C to +70°C).
- Pro: Very high transmit power (up to 500 mW) and excellent reception sensitivity for stable long-range connections.
- Pro: RouterOS offers unparalleled configuration depth for professional users.
- Pro: Direct Antenna mounting via N-connector maximizes signal quality and avoids cable losses.
- Note: The 10/100 Mbit/s Ethernet Port limits the maximum data throughput to under 100 Mbit/s.
- Note: The RouterOS Level 3 license prevents operation as an Access Point for multiple clients (no point-to-multipoint).
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | Groove 52HPn |
| EAN: | 4752224001375 |
| Product Code: | RBGroove52HPn |
| Device Classification: | Outdoor Wireless CPE (Client / Bridge) |
| CPU Model: | Atheros AR9342 |
| CPU Architecture: | MIPSBE |
| CPU Cores: | 1 |
| CPU Clock Frequency: | 600 MHz |
| RAM: | 64 MB |
| Storage (Flash): | 16 MB |
| Storage Type: | FLASH |
| WiFi Frequency Bands: | 2.4 GHz or 5 GHz (software selectable) |
| WiFi Standards: | 802.11a/b/g/n |
| Wi-Fi Generation: | Wi-Fi 4 |
| WiFi Chains: | 1 (Single Chain / SISO) |
| Maximum WiFi Data Rate: | 150 Mbit/s |
| Proprietary Protocol: | MikroTik Nv2 TDMA |
| Transmit Power (TX) 2.4 GHz: | Up to 27 dBm (500 mW) |
| Transmit Power (TX) 5 GHz: | Up to 26 dBm |
| Receive Sensitivity (RX) 2.4 GHz: | Up to -97 dBm |
| Receive Sensitivity (RX) 5 GHz: | Up to -93 dBm |
| Antenna Connector: | Integrated N-male connector |
| Antenna Included: | No |
| Ethernet Ports: | 1x 10/100 Mbit/s Fast Ethernet Port |
| Power Supply: | Passive Power over Ethernet (PoE) |
| PoE Input Voltage: | 9 - 30 V |
| Max Power Consumption: | 6 W |
| Dimensions: | 177 x 44 x 44 mm (without antenna) |
| Weight: | 193 g |
| Cooling: | Passive |
| Operating System: | MikroTik RouterOS |
| RouterOS License: | Level 3 |
| Operating Temperature: | -40°C to +70°C |
| MTBF: | approx. 100,000 hours at 25°C |
| Certificates: | CE, FCC, IC, EAC, ROHS |
| Additional Features: | PCB temperature monitor, voltage monitor |
Scope of Delivery
| 1 x MikroTik Groove 52HPn |
| 1 x PoE Injector |
| 1 x 24V Power Supply |
| 1 x Mounting Straps |
Frequently Asked Questions (FAQ)
Can I use the MikroTik Groove 52HPn as a regular WiFi Access Point in the garden?
No, the Groove 52HPn model with RouterOS License Level 3 is not intended for this. It can only connect as a client to an existing WiFi Network or establish a single point-to-point connection. For functioning as a WiFi Access Point for multiple devices, the RBGrooveA-52HPn model with License Level 4 is required.
Which Antenna should I use for the Groove 52HPn?
That depends on the application. For a long-distance point-to-point connection, a high-gain Directional Antenna is ideal. To receive a signal from a remote hotspot, an Omni-Directional Antenna could be an option, but with a shorter range.
What does 'Dual-Band' mean for this device?
Dual-Band means that the Groove 52HPn can operate in either the 2.4 GHz or 5 GHz frequency band. The selection is made via software in the RouterOS configuration. However, the device cannot use both bands simultaneously.
Is the configuration of the Groove 52HPn suitable for beginners?
No, configuring MikroTik RouterOS requires basic Network knowledge. Although there is a 'Quick Set' function, the device only unfolds its full potential through manual configuration, which can be complex for beginners.
What is the advantage of MikroTik's 'Nv2' protocol?
Nv2 is a proprietary TDMA protocol from MikroTik that, unlike the standard WiFi protocol, reduces latencies and increases overall throughput, which is particularly advantageous for point-to-point connections.
Do I need a special Cable for the Power Supply?
No, the device is powered via a standard Ethernet Cable (Passive PoE). A suitable PoE Injector and a 24V power supply are included in the delivery.
