One Device That Does It All: Your New Network Hub

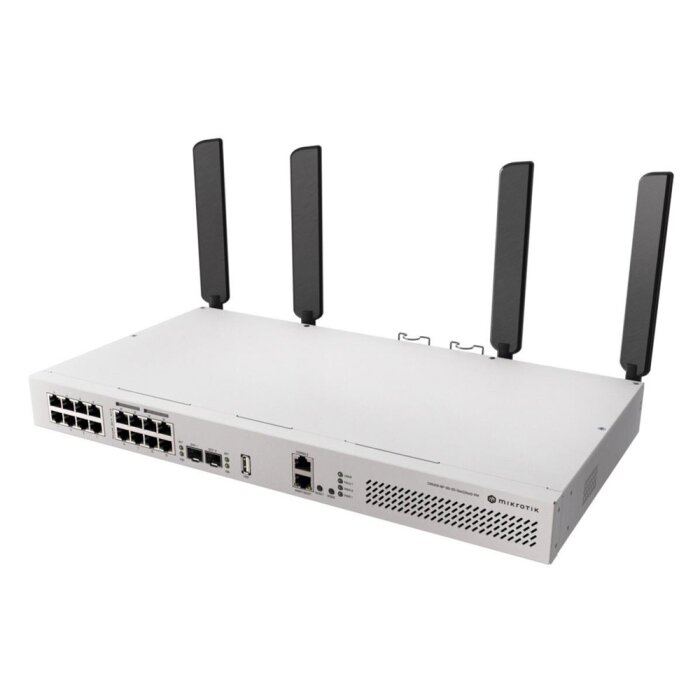

Imagine you could drastically reduce cable clutter and complexity in your Network cabinet. The MikroTik CRS418 was developed precisely for this purpose. As a true all-in-one Router for businesses, it combines the functionality of four separate devices. It is a full-fledged Layer-3 Switch, a powerful Router with the mighty RouterOS, a potent PoE Injector, and a modern Wi-Fi 6 Access Point. This integration not only saves space in 19-Inch Racks but also valuable energy and simplifies overall Network administration. Ideal for small and medium-sized businesses looking for a clean, high-performance, and centrally manageable solution.
Performance for Tomorrow: Wi-Fi 6 and 10G SFP+ Uplinks
The demands on Networks are constantly growing. With the CRS418, you are well-equipped for the future. The integrated Wi-Fi 6 (802.11ax) ensures higher speeds, better efficiency, and more reliable coverage, even in environments with many competing WLAN devices. At the same time, the two 10G SFP+ Ports provide the necessary bandwidth for fast connections to your server, a NAS, or the backbone of your Network. This Ethernet Switch prevents bottlenecks and ensures that your wired and wireless infrastructure continues to deliver peak performance in the years to come.
Full Control for Professionals: The Power of RouterOS v7
While consumer devices often limit you, the CRS418 with RouterOS v7 gives you absolute freedom. This extremely flexible operating system is the heart of many MikroTik Switches and provides you with unparalleled control. Configure complex firewall rules, set up secure VPN tunnels, manage VLANs, or prioritize data traffic with detailed Quality of Service. Thanks to license level 5, there are hardly any limits. Whether via the intuitive web interface, the powerful WinBox tool, or the command line – you decide how deeply you want to delve into professional Network management.
Power and Data Over One Cable: 150W PoE for Your Setup
Forget countless power adapters for your Network end devices. The CRS418 features eight Gigabit ports with Power over Ethernet (PoE) according to the 802.3af/at standard. With a total budget of 150 Watts, you can easily power multiple IP Cameras, VoIP phones, or additional WiFi Access Points directly via the Ethernet Cables. This significantly simplifies installation, reduces Cabling effort, and ensures a tidy and reliable infrastructure. Perfect for centrally powering and managing your entire office or company Network.
Strengths & Notes at a Glance
- Pro: Extreme functional integration (Router, Switch, PoE, AP in one).
- Pro: High performance thanks to Quad-Core CPU and L3 Hardware Offloading.
- Pro: Future-proof with Wi-Fi 6 and two 10G SFP+ Ports.
- Pro: Powerful and flexible RouterOS v7 without ongoing costs.
- Note: Configuration requires Network knowledge and is not suitable for absolute beginners.
- Note: Active cooling with four fans makes the device unsuitable for use in quiet environments (location: server room/Network cabinet).
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | CRS418-8P-8G-2S+5axQ2axQ-RM |
| EAN: | 4752224005175 |
| Product Classification: | Cloud Router Switch with PoE and Wi-Fi 6 |
| CPU Architecture: | ARM 64bit |
| CPU Model: | Qualcomm IPQ-8072A |
| CPU Cores: | 4 |
| CPU Clock Speed: | 2.2 GHz |
| RAM: | 1 GB DDR3 |
| Storage (NAND): | 128 MB |
| Switch Chip Model: | Marvell 98DX226S |
| L3 Hardware Offloading: | Yes |
| 1GbE RJ45 Ports (Total): | 17 |
| 1GbE RJ45 Data Ports: | 8 |
| 1GbE RJ45 PoE-Out Ports: | 8 (Ether9-Ether16) |
| 1GbE RJ45 Management Port: | 1 (direct CPU connection) |
| 10GbE SFP+ Ports: | 2 |
| Console Port: | 1x RJ45 (serial) |
| USB Port: | 1x USB 3.0 Type A |
| PoE-Out Standards: | 802.3af/at |
| Total PoE Budget: | 150 W |
| Max. Power per PoE Port (>30V): | 0.56 A |
| Max. Power per PoE Port (<30V): | 1.1 A |
| WLAN Generation: | Wi-Fi 6 (802.11ax) |
| WLAN 2.4 GHz Standards: | 802.11b/g/n/ax |
| WLAN 2.4 GHz Max. Data Rate: | 1148 Mbit/s |
| WLAN 2.4 GHz Antenna Gain: | 5 dBi |
| WLAN 2.4 GHz Chains: | 4x4 MIMO |
| WLAN 5 GHz Standards: | 802.11a/n/ac/ax |
| WLAN 5 GHz Max. Data Rate: | 2400 Mbit/s |
| WLAN 5 GHz Antenna Gain: | 6 dBi |
| WLAN 5 GHz Chains: | 4x4 MIMO |
| WLAN Encryption: | WPA3, WPA2, WEP |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License Level: | 5 |
| Power Supply: | 2x redundant AC power supplies |
| AC Input Range: | 100-240 V |
| Max. Power Consumption (without PoE): | 43 W |
| Max. Power Consumption (Full Load): | 227 W |
| Cooling: | Active, 4 fans |
| Dimensions: | 443 x 250 x 44 mm (1U Rack) |
| Certificates: | CE, FCC, IC, EAC, ROHS |
Scope of Delivery
| 1 x MikroTik CRS418-8P-8G-2S+5axQ2axQ-RM |
Frequently Asked Questions (FAQ)
Can the CRS418 completely replace a router and a switch?
Yes, for small to medium-sized businesses, this MikroTik Router and Ethernet Switch is absolutely designed for that. Its Quad-Core CPU and RouterOS v7 can handle Internet gateway functions, firewalling, and complex VLAN routing, while the Marvell switch chip ensures fast data traffic within the Network LAN.
What is the actual PoE power output?
The device offers a total budget of 150 Watts across eight ports, acting as powerful PoE Injectors / Power Supplies. This means, for example, you can power five 802.3at devices (approx. 30W each) or eight 802.3af devices (approx. 15.4W each) simultaneously, as long as the total power of 150W is not exceeded.
Is the WiFi sufficient for an entire office?
The integrated Wi-Fi 6 with 4x4 MIMO is very powerful, making it an excellent WiFi Access Point. In an open office space, it can provide very good coverage. However, in metallic server cabinets, performance may be affected, which is why MikroTik has provided external WiFi Antennas connectors.
What does 'RouterOS License Level 5' mean?
License Level 5 is a high license tier for MikroTik Routers. It allows an unlimited number of EoIP, OVPN, and PPTP tunnels, up to 500 PPPoE users, and unlimited VLAN interfaces, which is more than sufficient for most SMB applications.
Can I also operate the device as a pure switch?
Yes, MikroTik CRS devices can be operated in pure switching mode. Some models even offer the option to alternatively boot the simpler SwOS (Switch-Only Operating System) to use a web interface focused on Layer-2 functions, making it a versatile Ethernet Switch.
What are the two 10G SFP+ ports for?
These ports are intended for high-speed connections, such as connecting to a fiber optic internet connection, linking to a core Ethernet Switch, or directly connecting a NAS or server to prevent data bottlenecks within the Network, often utilizing SFP / SFP\+ Modules and appropriate Cabling.
