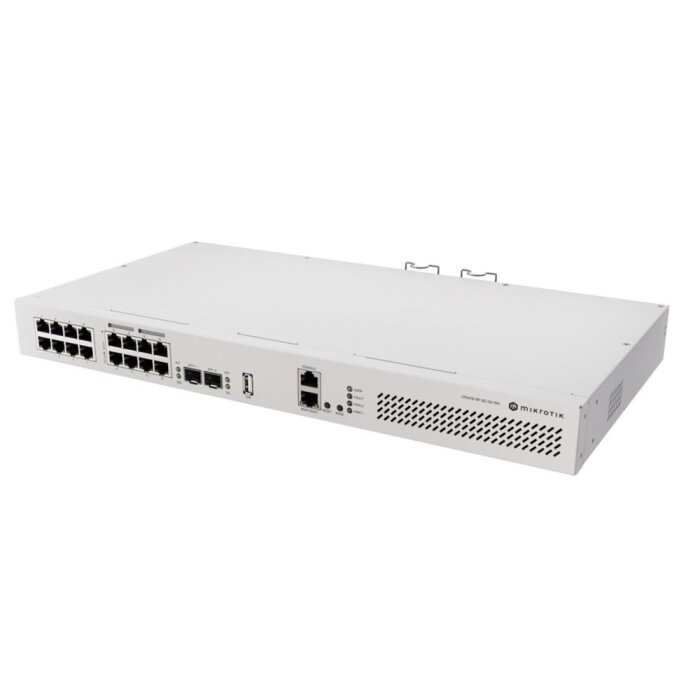

The 3-in-1 Solution: Router, PoE Switch, and Aggregator
Why buy three devices when one can do it all? The MikroTik CRS418-8P-8G-2S+RM is the ultimate consolidation for your Network. It combines the functionality of a full-fledged Router with that of a powerful PoE Switch and an Aggregation Switch for your fiber optic uplinks. The result: fewer devices in the rack, significantly less Cabling effort, and centralized, clear management. This Layer 3 Switch for businesses is the smart choice to simplify your infrastructure while maximizing performance. Ideal for offices, workshops, or demanding home networks housed in professional 19-Inch Racks.
Unrestricted Performance thanks to L3 Hardware Offloading
The heart of the CRS418 is its impressive performance. While other Ethernet Switches quickly reach their limits with complex routing tasks, this one truly excels. The powerful Quad-Core ARM CPU is relieved by L3 Hardware Offloading. This means that routing decisions are made directly by the switch chip at full line speed. Your data packets flow through the Network without delay, even with complex VLAN setups or firewall rules. Additionally, IPsec hardware acceleration ensures high VPN throughput.
Flexible Connectivity: From PoE+ to 10G SFP+
The CRS418 is a true connectivity marvel. It offers you 8 standard Gigabit ports for clients and 8 additional Gigabit ports with Power over Ethernet. These PoE ports are extremely flexible and support both modern 802.3af/at (PoE+) standards and 24V passive PoE. With a total budget of 150 Watts, you can easily power multiple IP Cameras, phones, or WiFi Access Points. For connecting to your core Network or fast storage solutions, two 10G SFP+ Ports are available, guaranteeing lightning-fast data transfer.
RouterOS v7: Full Control for Professionals
This Ethernet Switch runs on MikroTik RouterOS v7 with a Level 5 license – the operating system valued by network professionals worldwide. It offers you an almost endless depth of configuration options that go far beyond what standard Switches can do. Configure detailed VLANs, create complex firewall rules, set up VPN tunnels, prioritize traffic with Quality of Service (QoS), and monitor your entire network down to the smallest detail. And the best part: No hidden costs or expensive subscriptions. You get the full power of RouterOS without additional fees.
Strengths & Notes at a Glance
- Pro: Replaces a Router, PoE Switch, and Aggregation Switch in one device.
- Pro: Very high routing performance due to Quad-Core CPU and L3 Hardware Offloading.
- Pro: Flexible connectivity with 16x GbE, 8x PoE (af/at/passive), and 2x 10G SFP+.
- Pro: Extremely powerful MikroTik RouterOS v7 operating system without ongoing license fees.
- Note: The complexity of RouterOS requires familiarization and network knowledge.
- Note: Designed for use in a network cabinet due to active cooling, not for open offices.
Specifications & Features
| Manufacturer: | MikroTik |
| Model: | CRS418-8P-8G-2S+RM |
| EAN: | 4752224008817 |
| Product Code: | CRS418-8P-8G-2S+RM |
| Device Type: | Layer 3 Switch with Routing Function |
| Architecture: | ARM 64bit |
| CPU: | Qualcomm IPQ-8072 |
| CPU Core Count: | 4 |
| CPU Clock Speed: | 2208 MHz |
| Switch Chip Model: | Marvell Prestera 98DX226S |
| RAM: | 1 GB DDR3L |
| Storage: | 128 MB NAND |
| Operating System: | MikroTik RouterOS v7 |
| RouterOS License: | Level 5 |
| Hardware Acceleration: | L3 Hardware Offloading, IPsec Hardware Acceleration |
| 1G Ethernet Ports (total): | 17 |
| 10/100/1000 Ethernet Ports: | 8x (Ether1 - Ether8) |
| 10/100/1000 Ethernet Ports (PoE-Out): | 8x (Ether9 - Ether16) |
| Dedicated Management Port: | 1x Gigabit Ethernet |
| 10G SFP+ Ports: | 2x |
| USB Port: | 1x USB 3.0 Type A |
| Serial Console Port: | 1x RJ45 |
| PoE-Out Ports: | 8 |
| PoE Standards: | 802.3af, 802.3at (PoE+), 24V Passive PoE |
| Total PoE Budget: | 150 W |
| Maximum Total Current Output: | 5.4 A |
| Current Limit per Port (Input < 30 V): | 1.1 A |
| Current Limit per Port (Input > 30 V): | 0.56 A |
| Number of Power Inputs: | 2x AC (redundant) |
| AC Input Range: | 100-240 V |
| Maximum Power Consumption (with PoE): | 215 W |
| Maximum Power Consumption (without PoE): | 28 W |
| Cooling: | Active, 4 fans |
| Dimensions: | 443 x 230 x 44 mm |
| Form Factor: | 1U Rackmount |
| Tested Ambient Temperature: | -20°C to 70°C |
| Protection Class: | IP20 |
| Certificates: | CE, EAC, ROHS |
Scope of Delivery
| 1 x MikroTik CRS418-8P-8G-2S+RM |
| 2 x AC Power Cables |
| 1 x Rack Mount Kit |
Frequently Asked Questions (FAQ)
Can the CRS418-8P-8G-2S+RM replace a Router and a Switch?
Yes, absolutely. With its powerful Quad-Core CPU, L3 Hardware Offloading, and full-featured RouterOS v7, it can function as an Internet gateway, firewall, and PoE Ethernet Switch simultaneously in small to medium-sized offices, thereby replacing multiple devices.
What is the PoE budget of the Switch?
The Ethernet Switch has a total PoE power budget of 150 Watts, distributed across its eight PoE-Out ports.
Does the Switch support both active and passive PoE devices?
Yes, the eight PoE ports are flexible and support both 802.3af/at (active) standards for modern devices and 24V Passive PoE for older or specific hardware.
Is this device suitable for a home office?
Due to the active fans and associated noise, it is primarily intended for server rooms or Network cabinets. The complexity of RouterOS is also more geared towards professional users.
What is the main difference from the MikroTik CRS328?
The main difference lies in processing power. The MikroTik CRS418 uses a significantly faster Quad-Core ARM CPU, making it much more powerful for demanding Layer-3 MikroTik Routers tasks than the CRS328.
Do I need additional licenses to use all features?
No. The device comes with a RouterOS Level 5 license, which unlocks all advertised MikroTik Switches and MikroTik Routers functions without additional costs or subscriptions.
